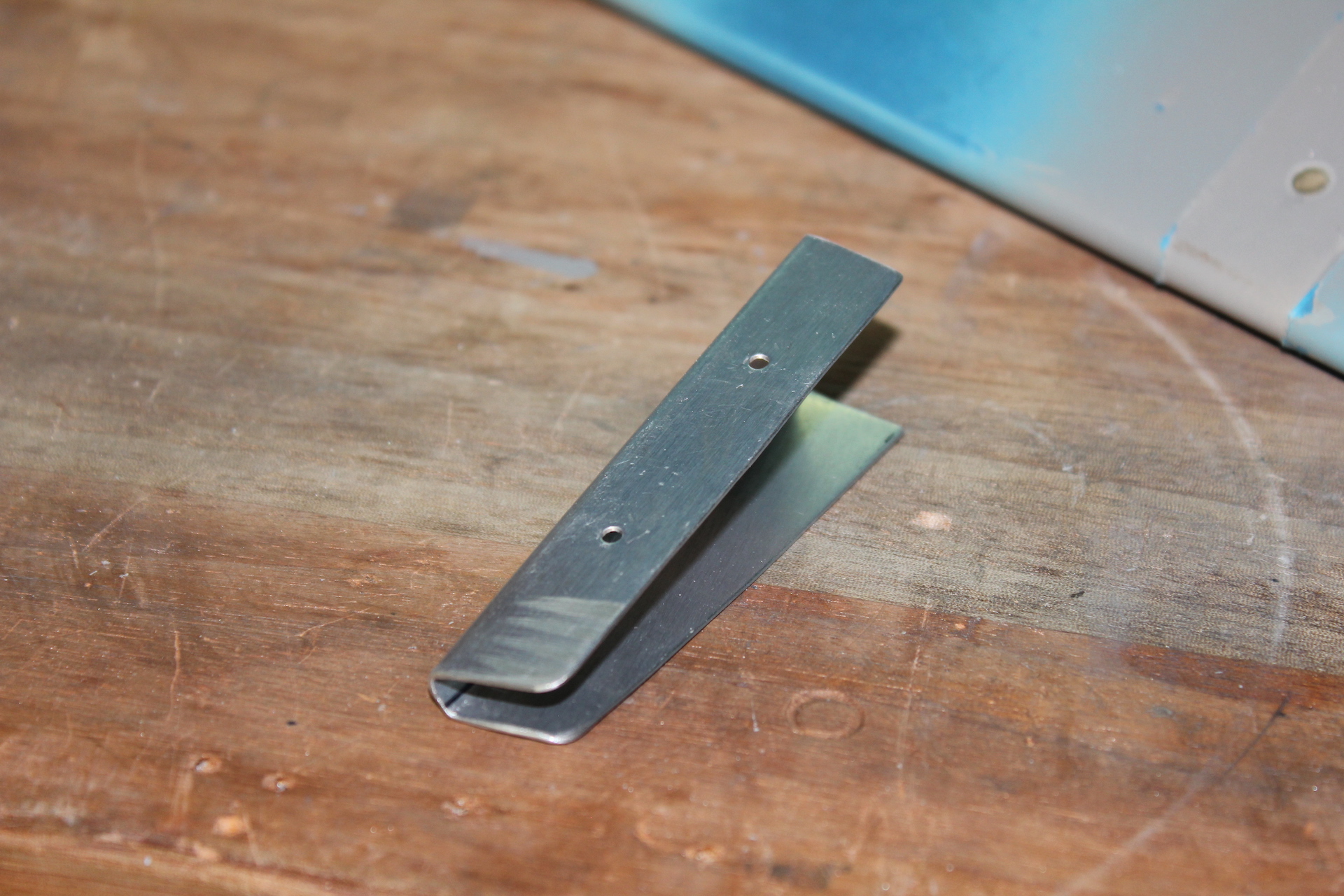

-CUT OFF ELEVATOR TRIM OPENING TABS & FABRICATED RIB (SEE MOD-001)

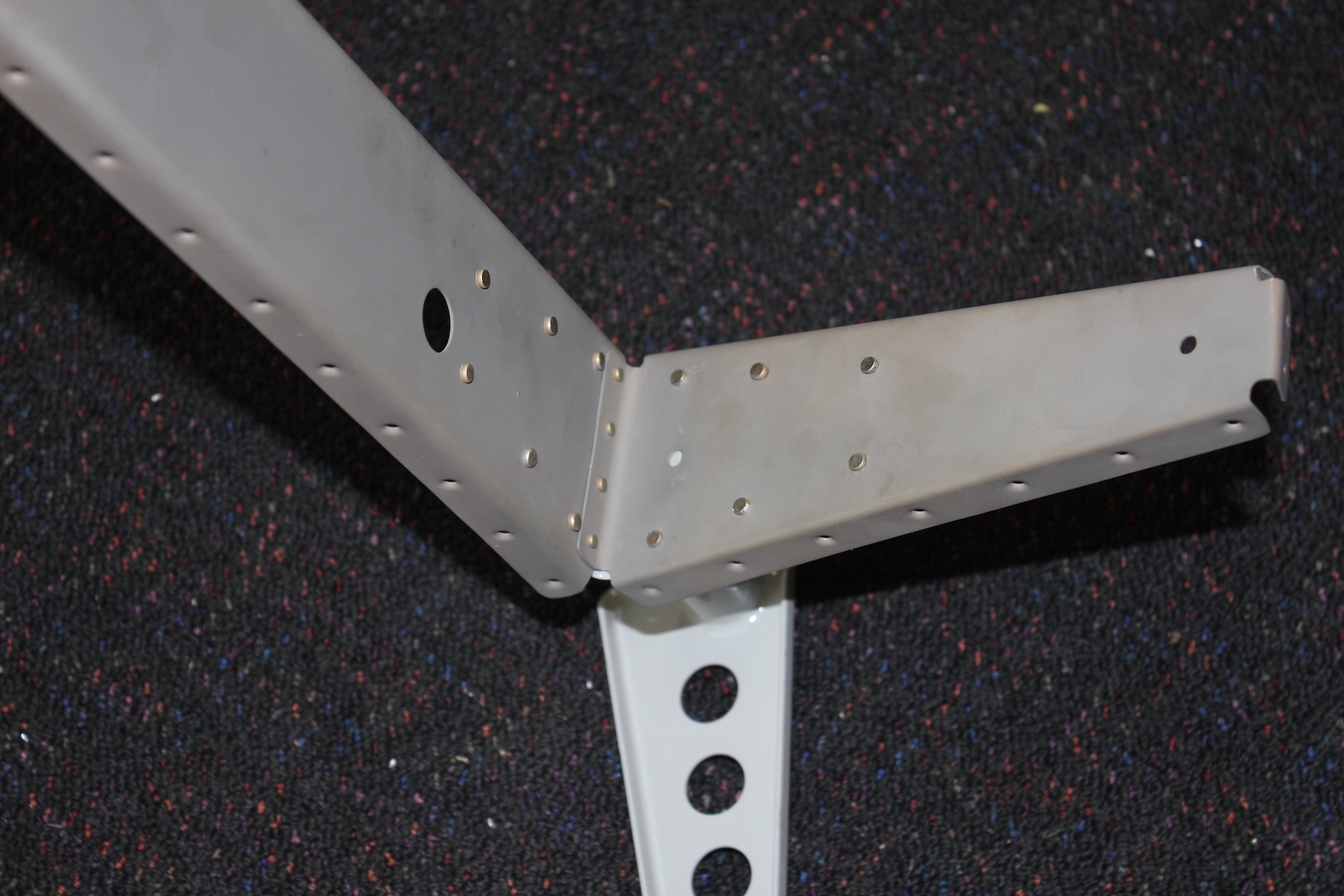

-RIVETED 703 TO 704
-RIVETED PLATENUTS/ REINFORCEMENT PLATES TO SPAR

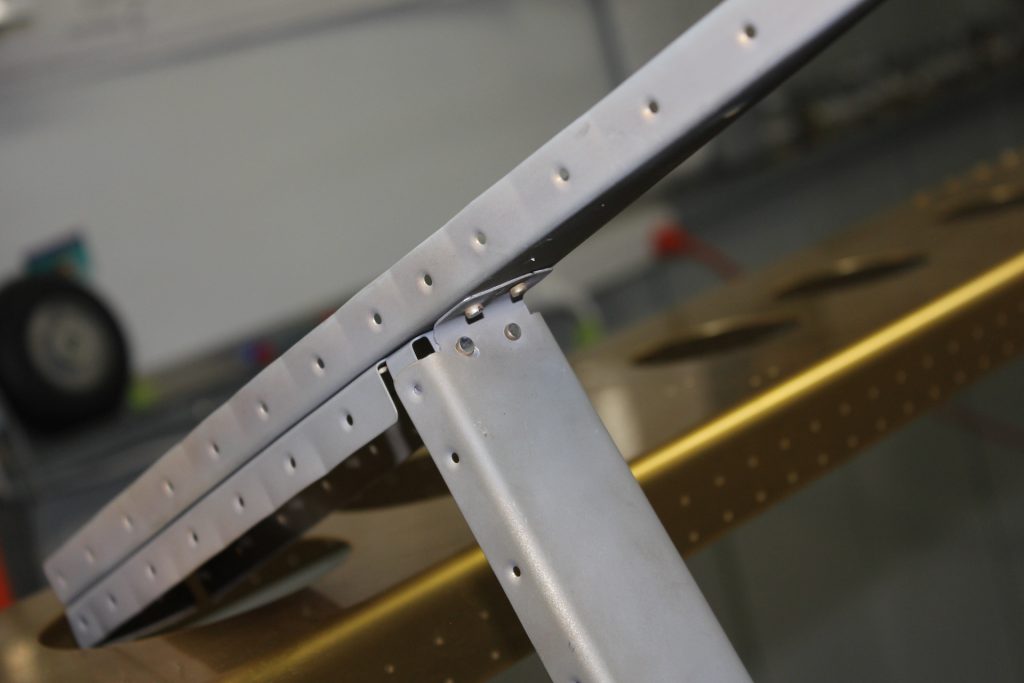

-RIVETED 705 ROOT RIB TO SPAR

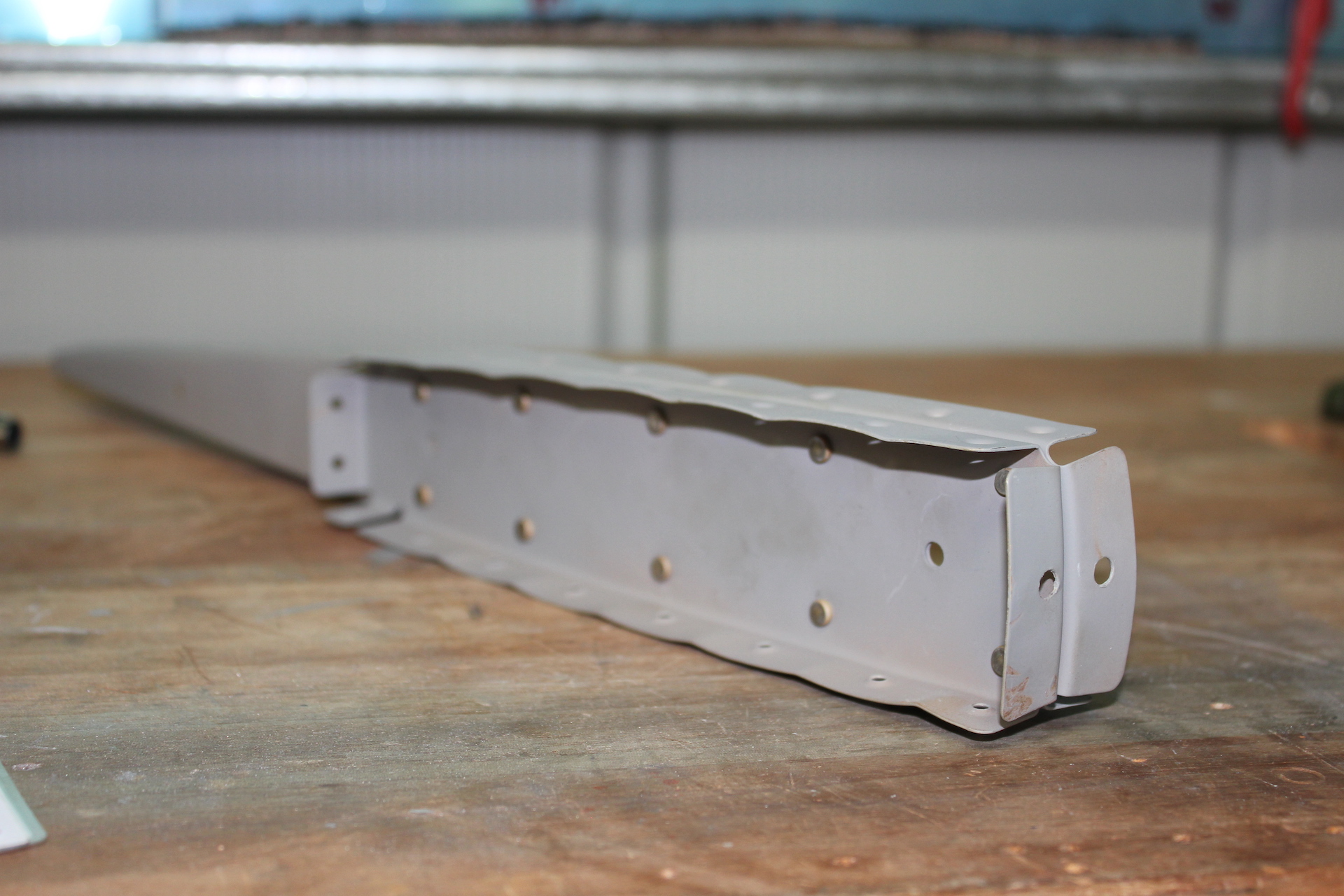

-RIVETED 703/4 ASSY TO SPAR
-RIVETED SKIN TO 713 COUNTERBALANCE SKIN
-INSERTED SKELETON INTO THE SKIN

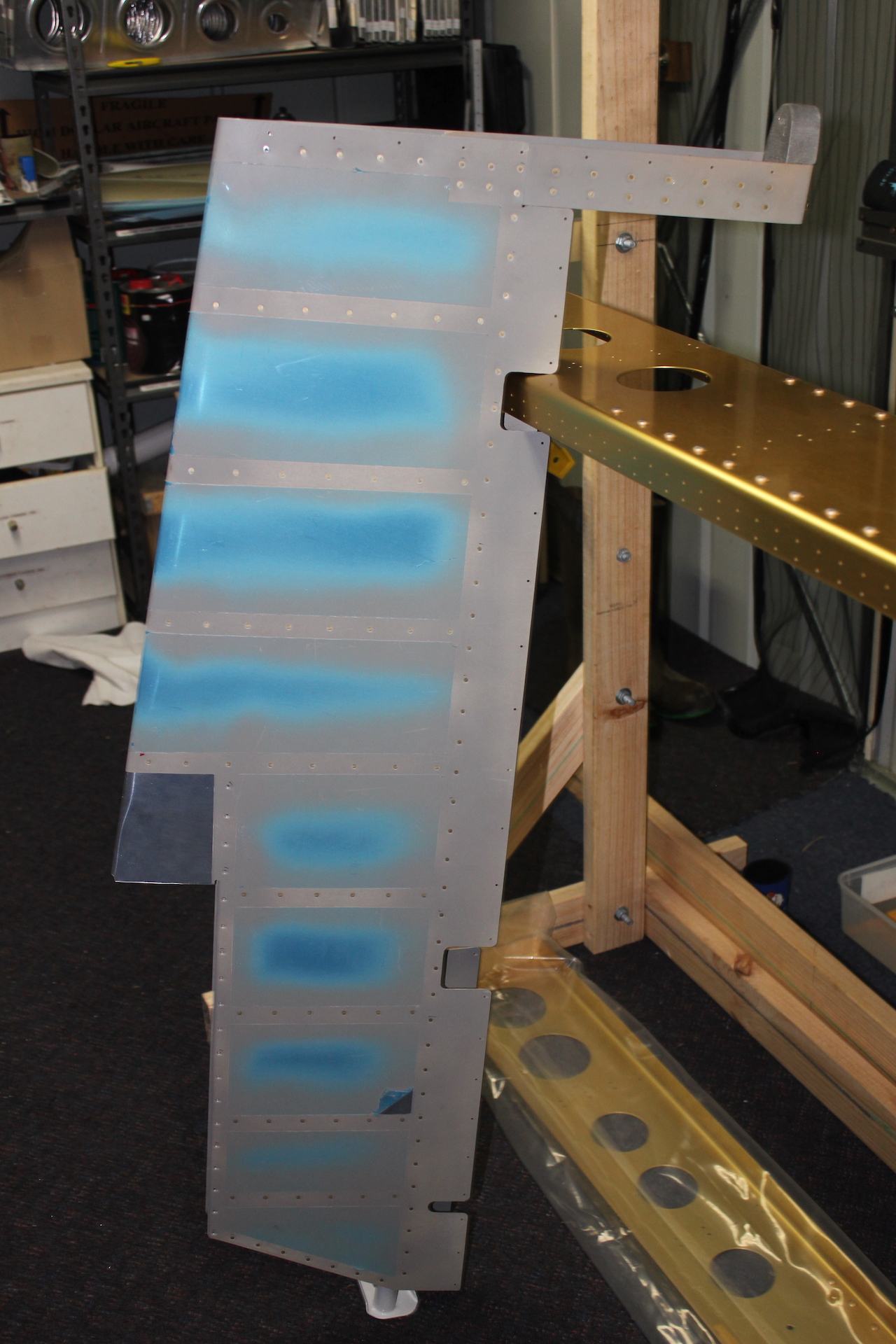

-RIVETED SKIN TO SKELETON
-RIVETED LOWER FLANGE OF TAB SPAR
RIVETS – INST 175 – REM 3
TOTAL PROJECT RIVETS – INST 2137 – REM 42
Manual Reference:
Hours: 4
Total Hours: 192.25
