-Riveted bottom skin-spar-hinge -Right Flap Complete Manual Reference: 7-11 Installed Removed Rivets Today 57 0 Wing Rivets 3387 73 Fuse Rivets 24 0 Empennage Rivets 2215 49 Total Project Rivets 5632 121 Hours 1 Total Hours 519 Statistics
Month: December 2022

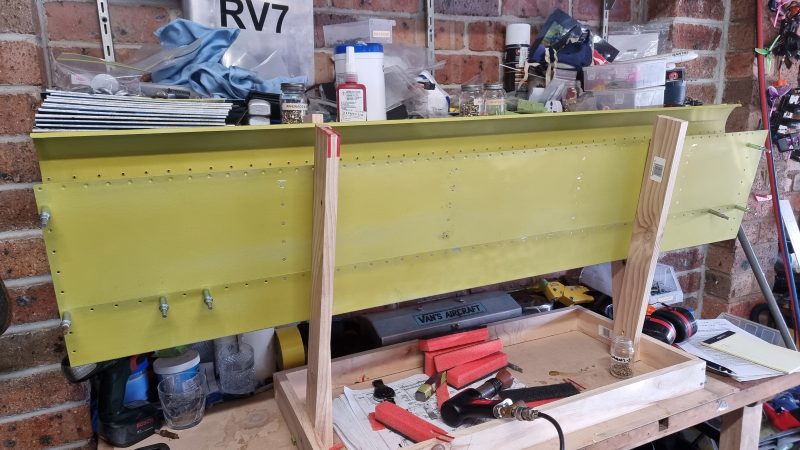

-Finished riveting flap skins to each other -Clecoed 706B to inboard rib, drilled to platenut, countersunk and riveted together -Riveted both end ribs to assembly -Slid spar in and pop riveted spar to ribs -Drove top row of skin-spar rivets…
-Riveted another bay and a half completing internal ribs Manual Reference: 7-11 Installed Removed Rivets Today 34 1 Wing Rivets 3218 68 Fuse Rivets 24 0 Empennage Rivets 2215 49 Total Project Rivets 5463 116 Hours 1 Total Hours 515.5 Statistics
-Riveted 706A to spar -Removed fwd rivet from inboard rib nutplate that i mistakenly fitted earlier -Found that although primer looks much better on this side its quite soft and scratches easily, doesn’t appear to have etched properly, my guess…

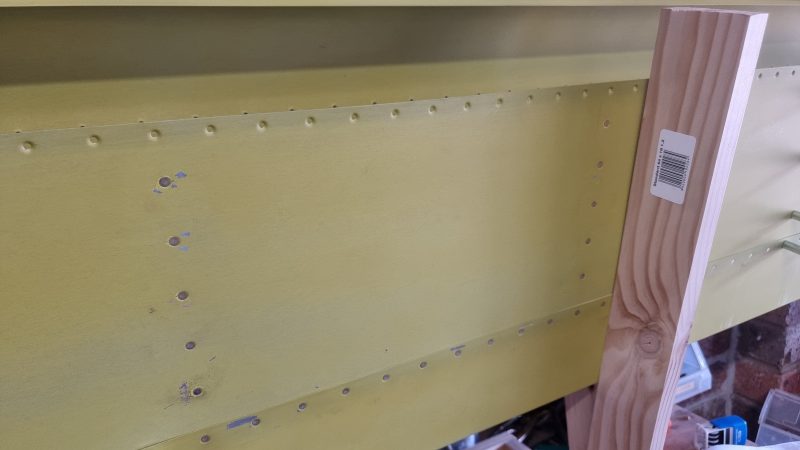

-Riveted all internal ribs to skins -Riveted skins together at rear spar-Found that some offcuts of kaizen foam from my toolbox made holding the bucking bar in place easier -Realised I was meant to leave one of the bearing attach…
