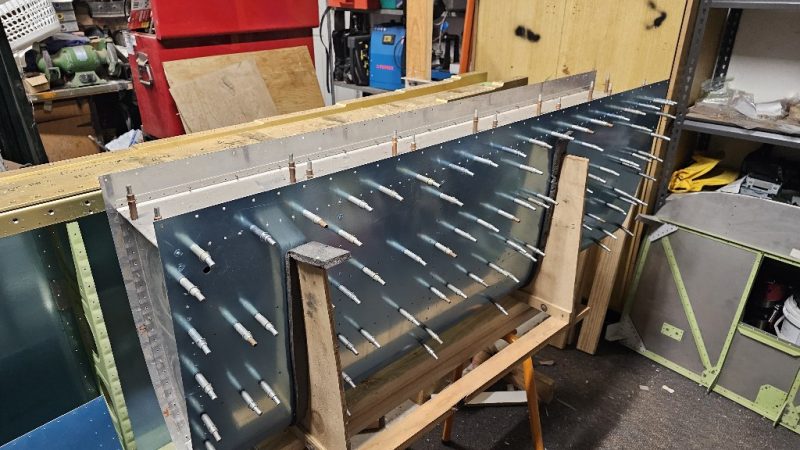

-Fitted & Drilled stiffeners to skin -Removed components from spar & clecoed together in stand -Drilled skin to ribs & baffle Manual Reference: 7-5, 7-6 Installed Removed Rivets Today 0 0 Wing Rivets 3429 74 Fuse Rivets 165 2 Empennage Rivets…
Month: July 2023

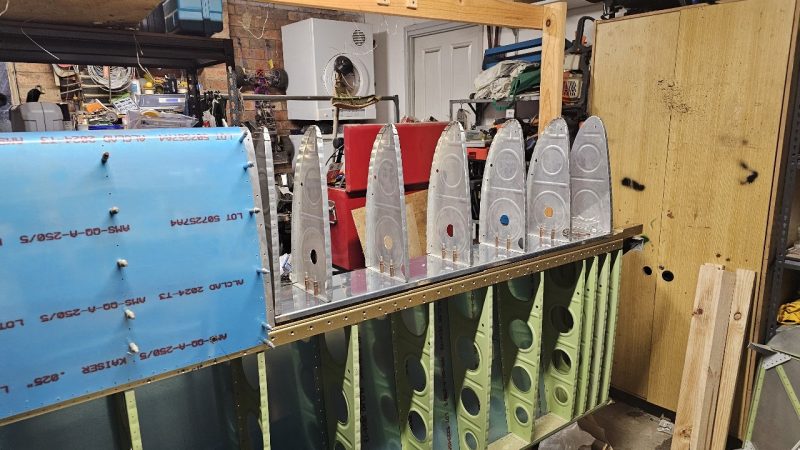

-Cut & cleaned up fuel tank stiffeners -Fluted & straightened IB/OB ribs -Mounted fuel tank ribs to baffle and final drilled to baffle/Zbrackets Manual Reference: 7-5 Installed Removed Rivets Today 0 0 Wing Rivets 3429 74 Fuse Rivets 165 2 Empennage…

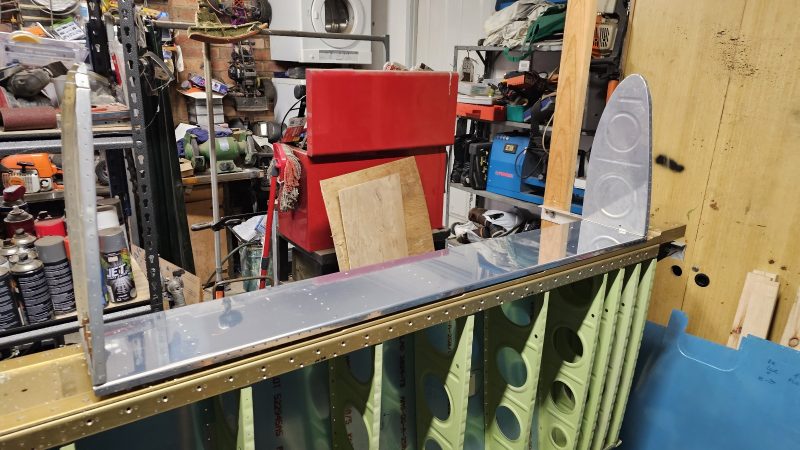

-Mounted tank to spar, aligned and strapped in place -Drilled tank skin to W-423 splice/joint plate -Drilled inboard Rib – Tank Baffle – Z Bracket -Removed outer Leading Edge & drilled Outboard Rib – Tank Baffle – Z Bracket -Separated…
