-RIVETED HINGE TO SPAR/SKIN OF TRIM TAB

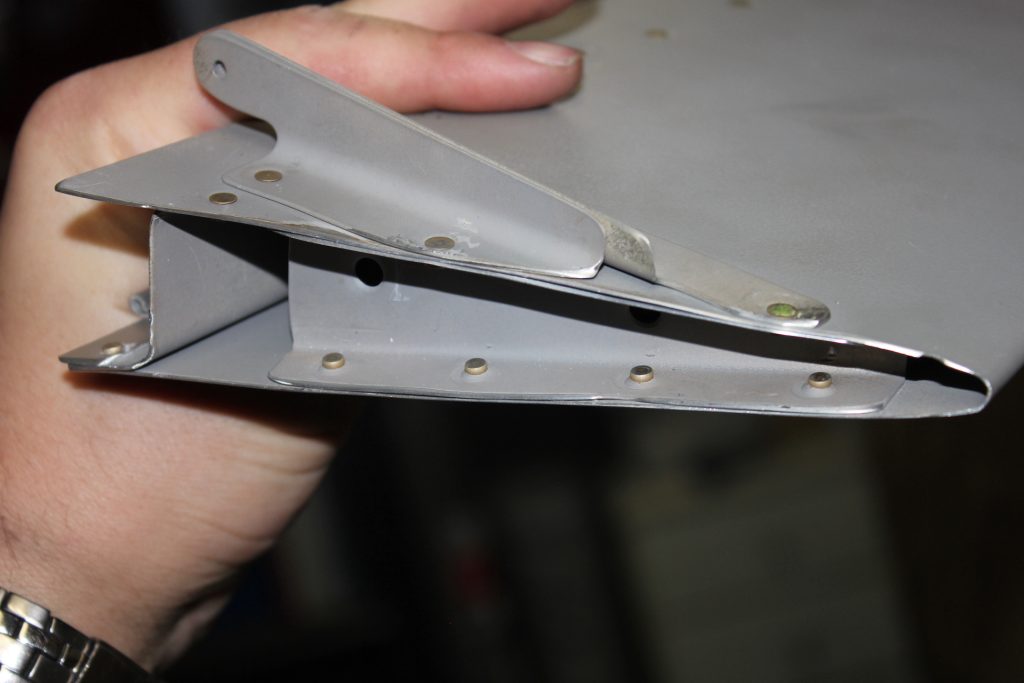

-RIVETED HORN & RIBS TO TRIM TAB

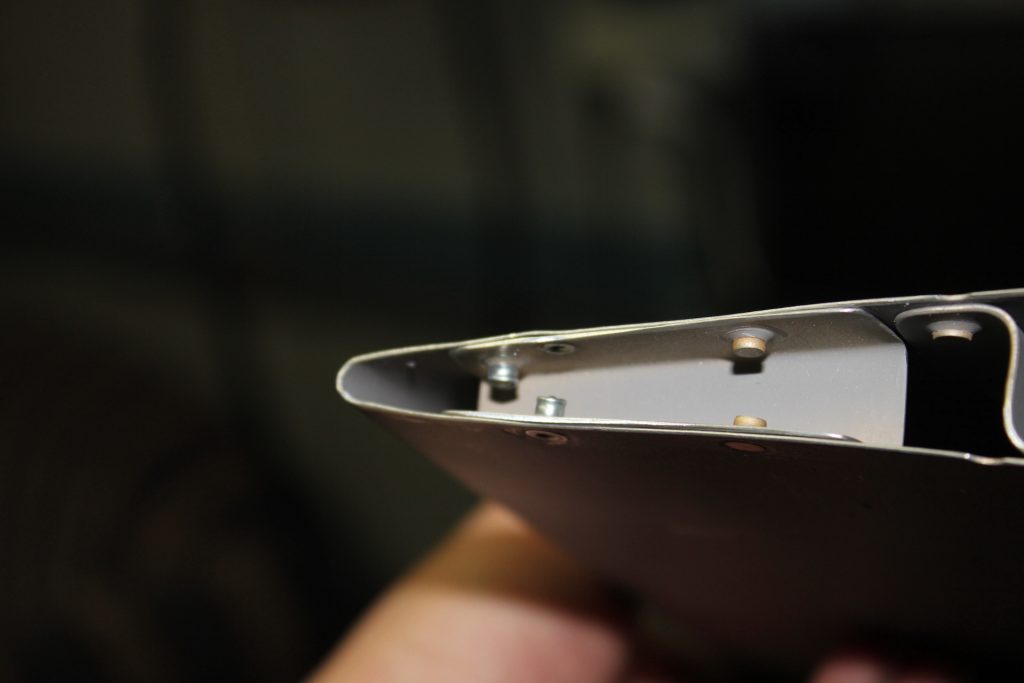

-HAD INTERFERENCE ON IB RIB FROM HORN RIVET SO REMOVED MATERIAL TO ALLOW SKIN TO SIT FLUSH
-TOUCHED UP ALL BARE METAL EDGES WITH ALODINE 1132 PEN

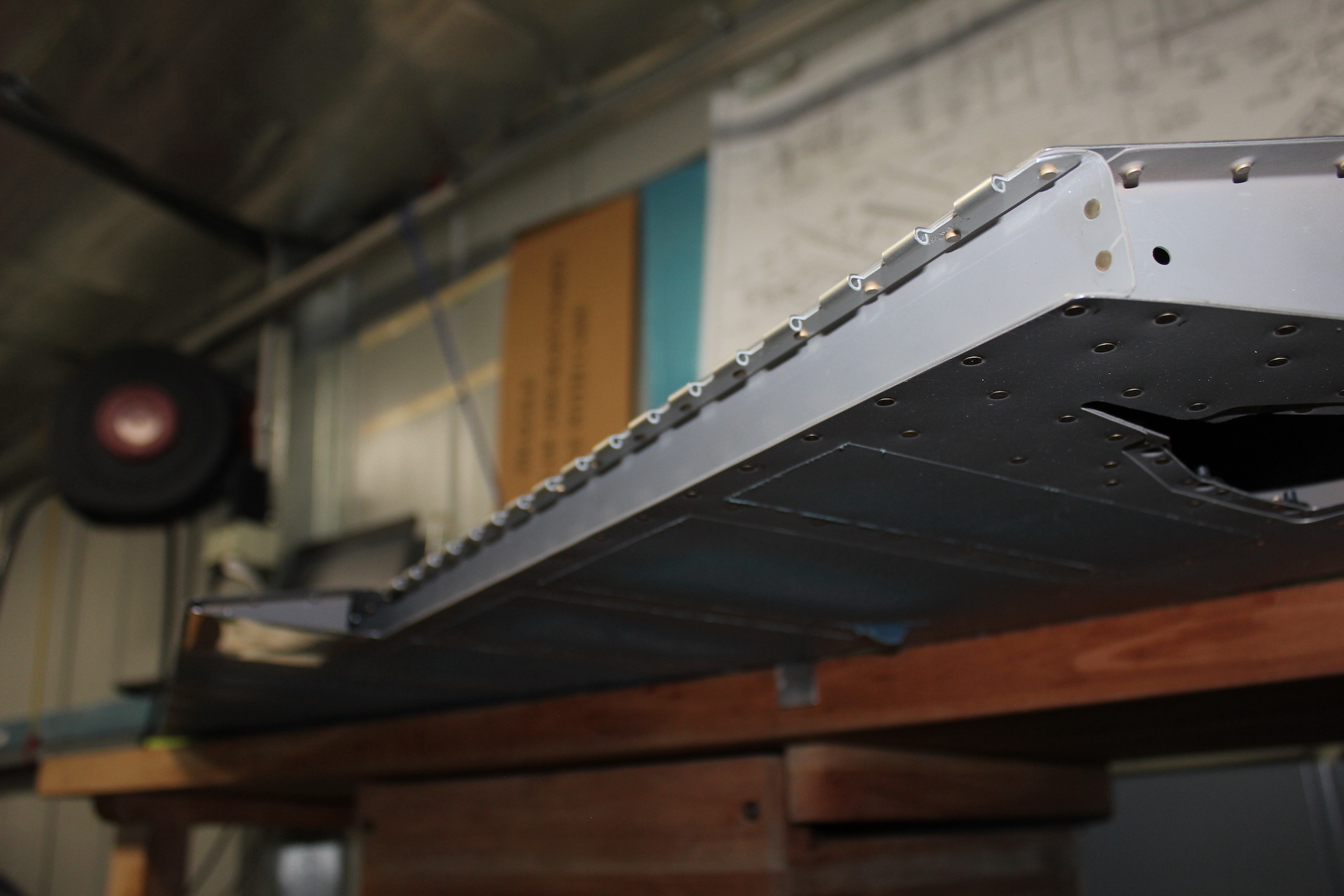

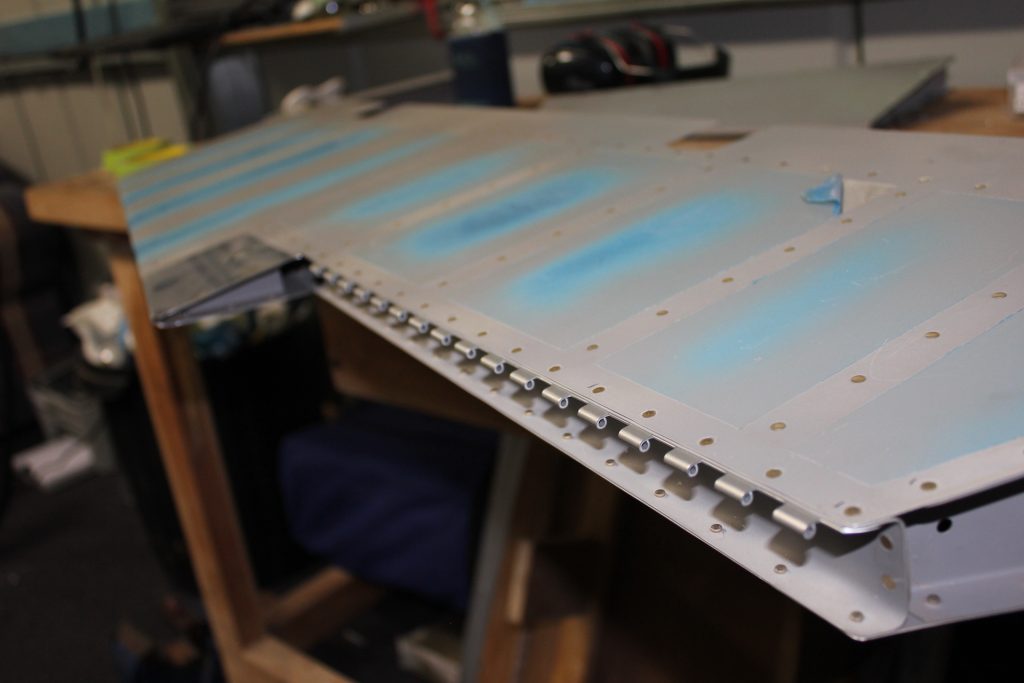

-RIVETED FWD SECTION OF HINGE TO ELEVATOR SPAR

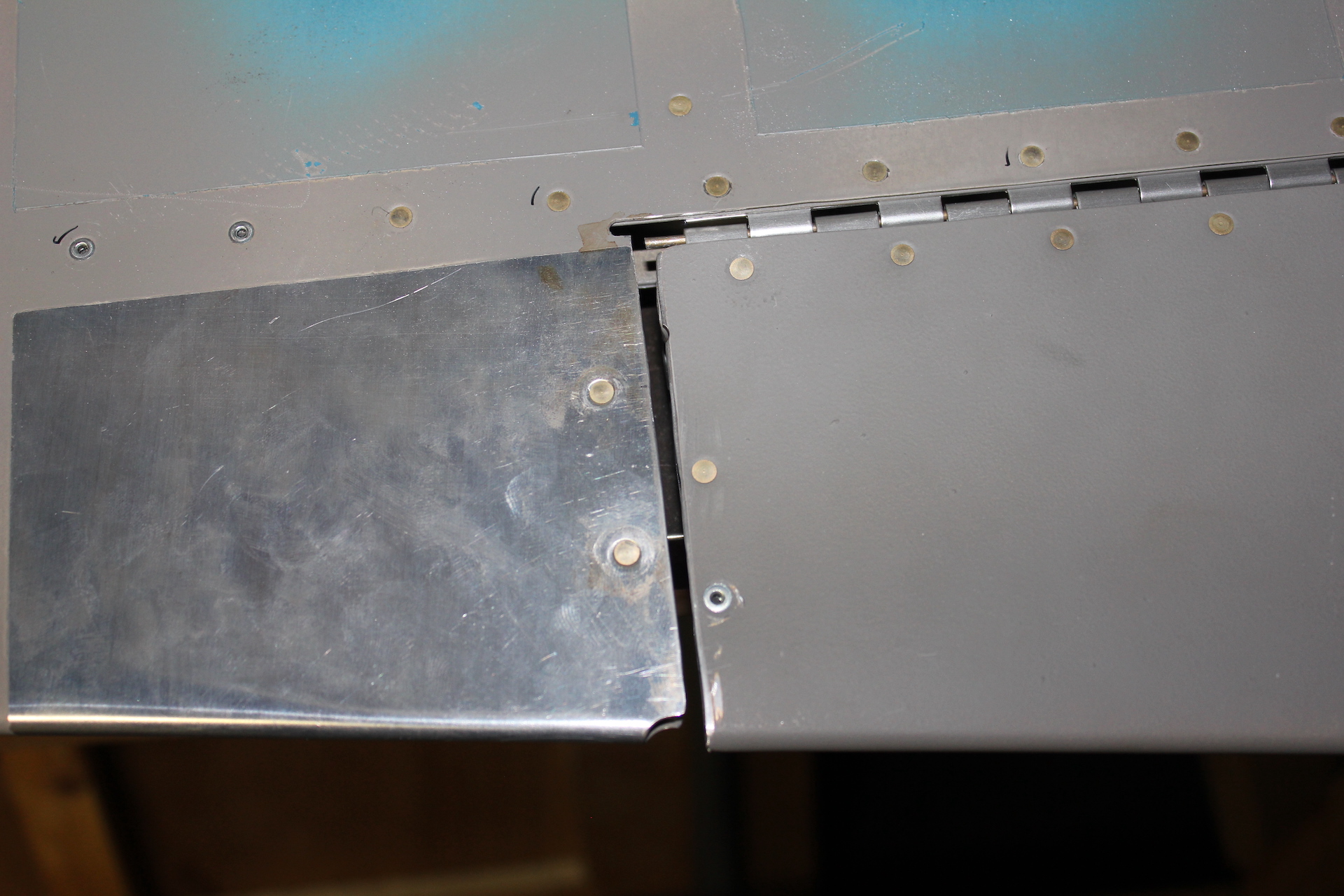

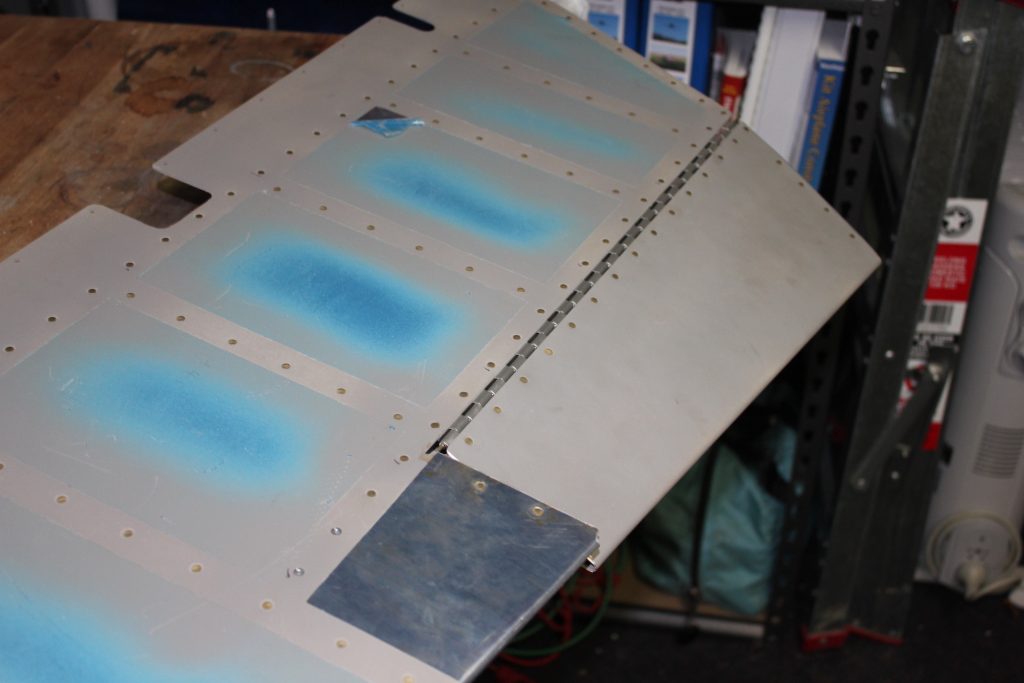

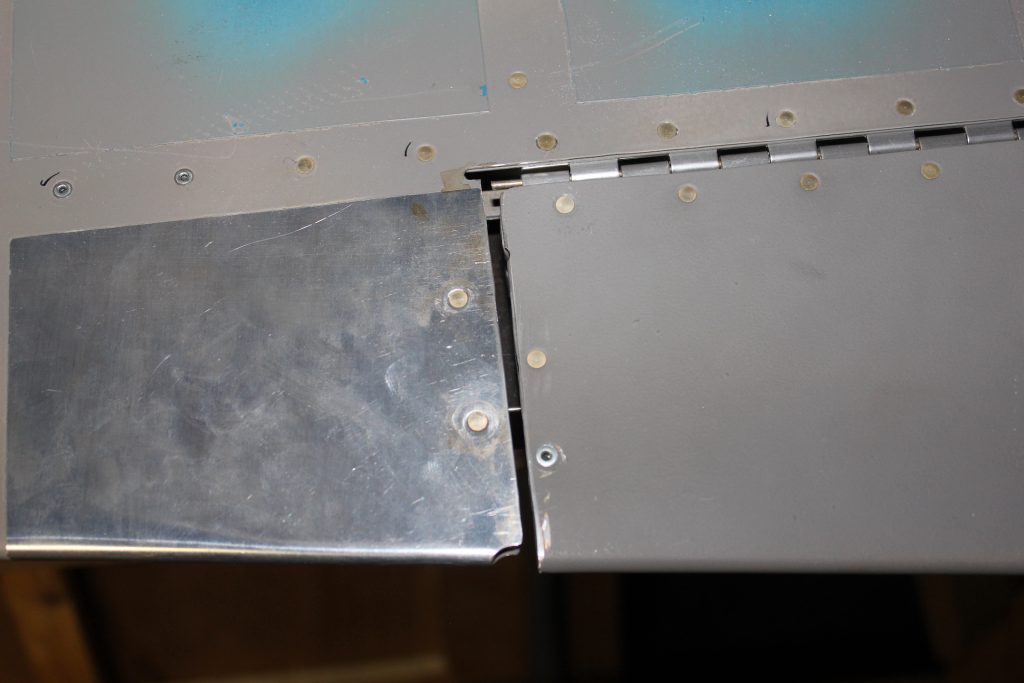

-INSTALLED TAB
***TRIM TAB NOW COMPLETE***
RIVETS – INST 58 – REM 7
TOTAL PROJECT RIVETS – INST 2215 – REM 49
Manual Reference:
Hours: 2.5
Total Hours: 209.25
