-CLECOED/DRILLED 610/611 PLATES TO SPAR
-FLUTED/DEBURRED 704/5 TIP RIBS THEN DRILLED TO SPAR

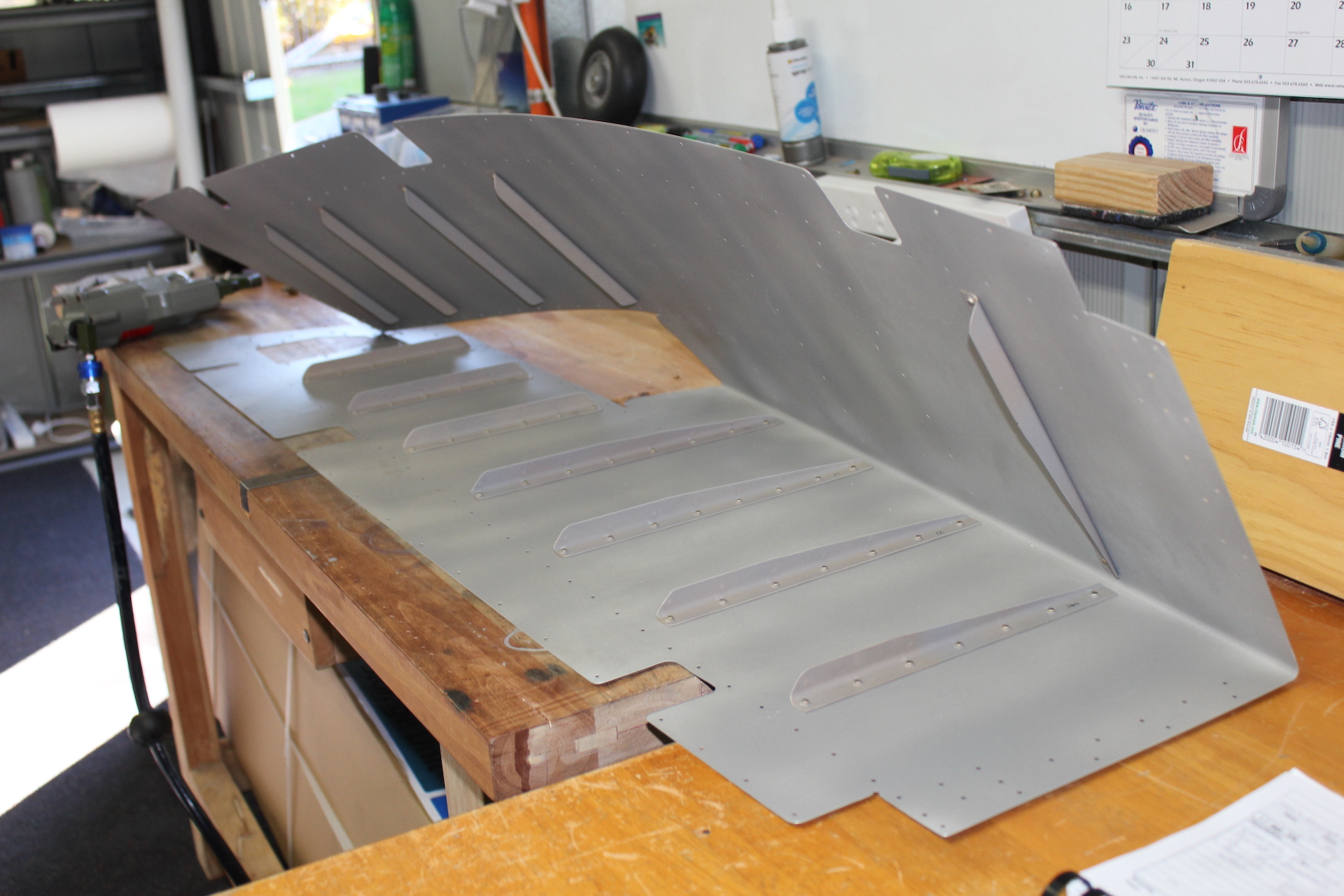

-RIVETED STIFFENERS TO LHS SKIN EXCEPT UPPER JKL IN TRANSIT FROM VANS

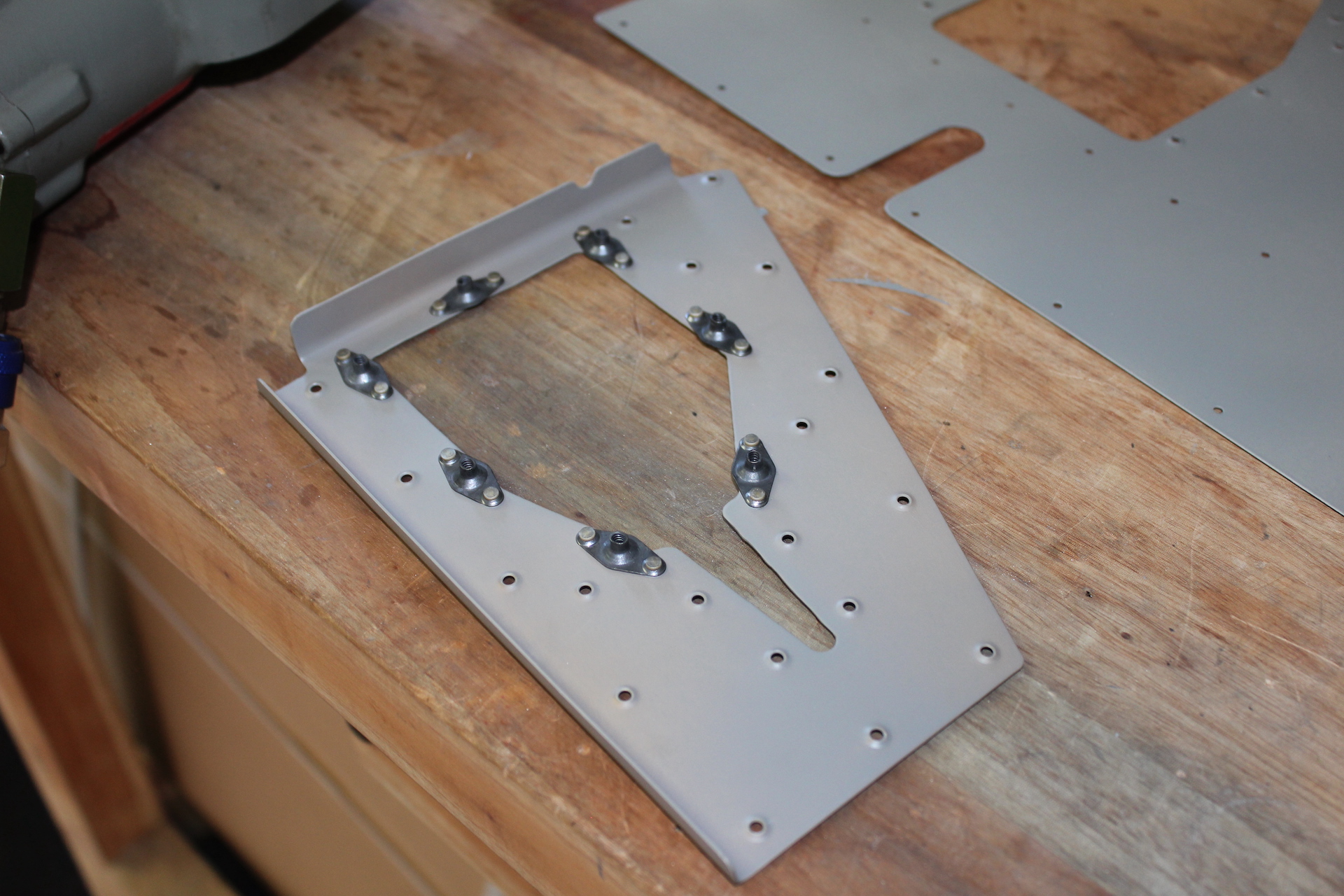

-MODIFIED DIMPLE DIE, DIMPLED PLATENUTS & RIVETED TO 615 PLATE

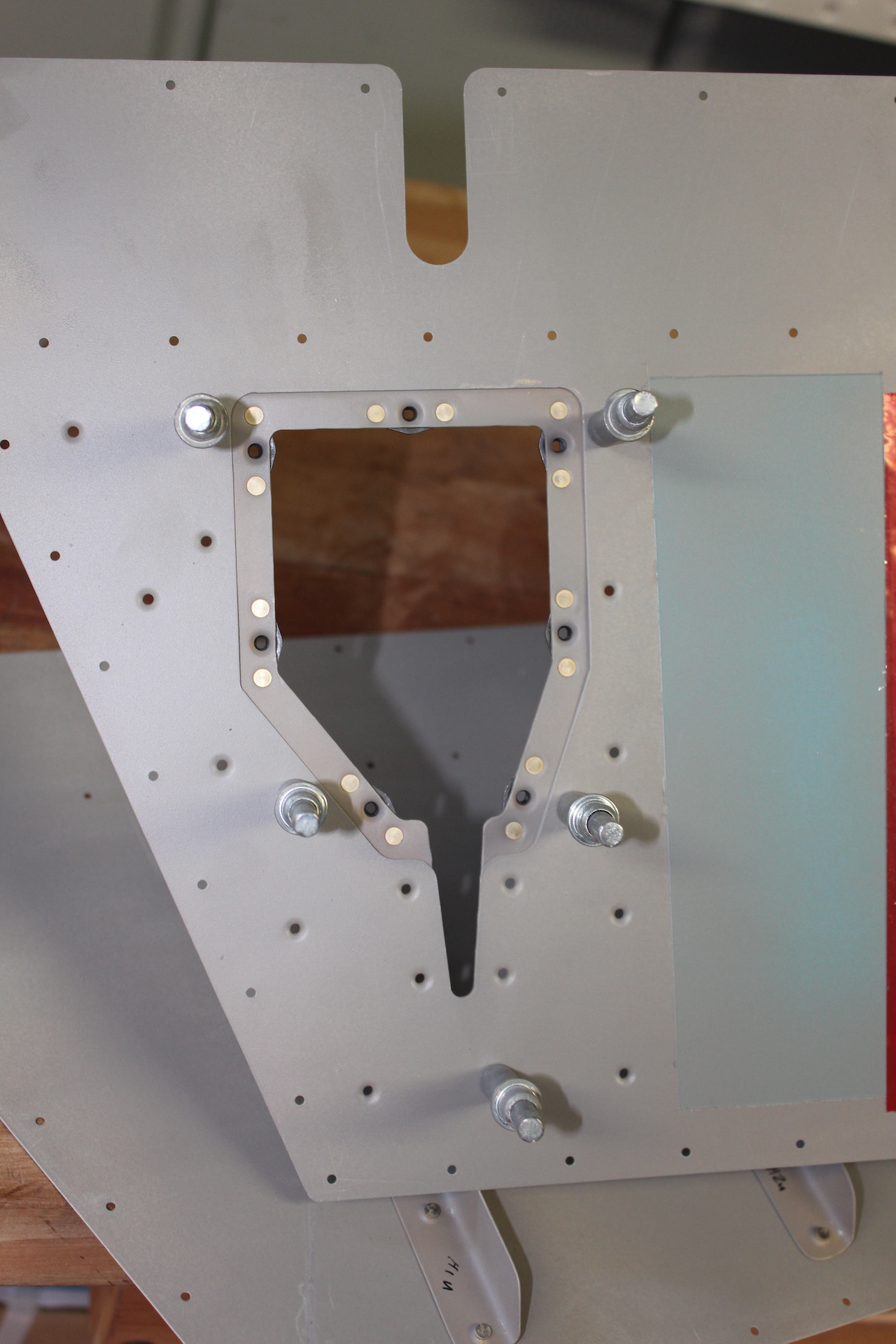

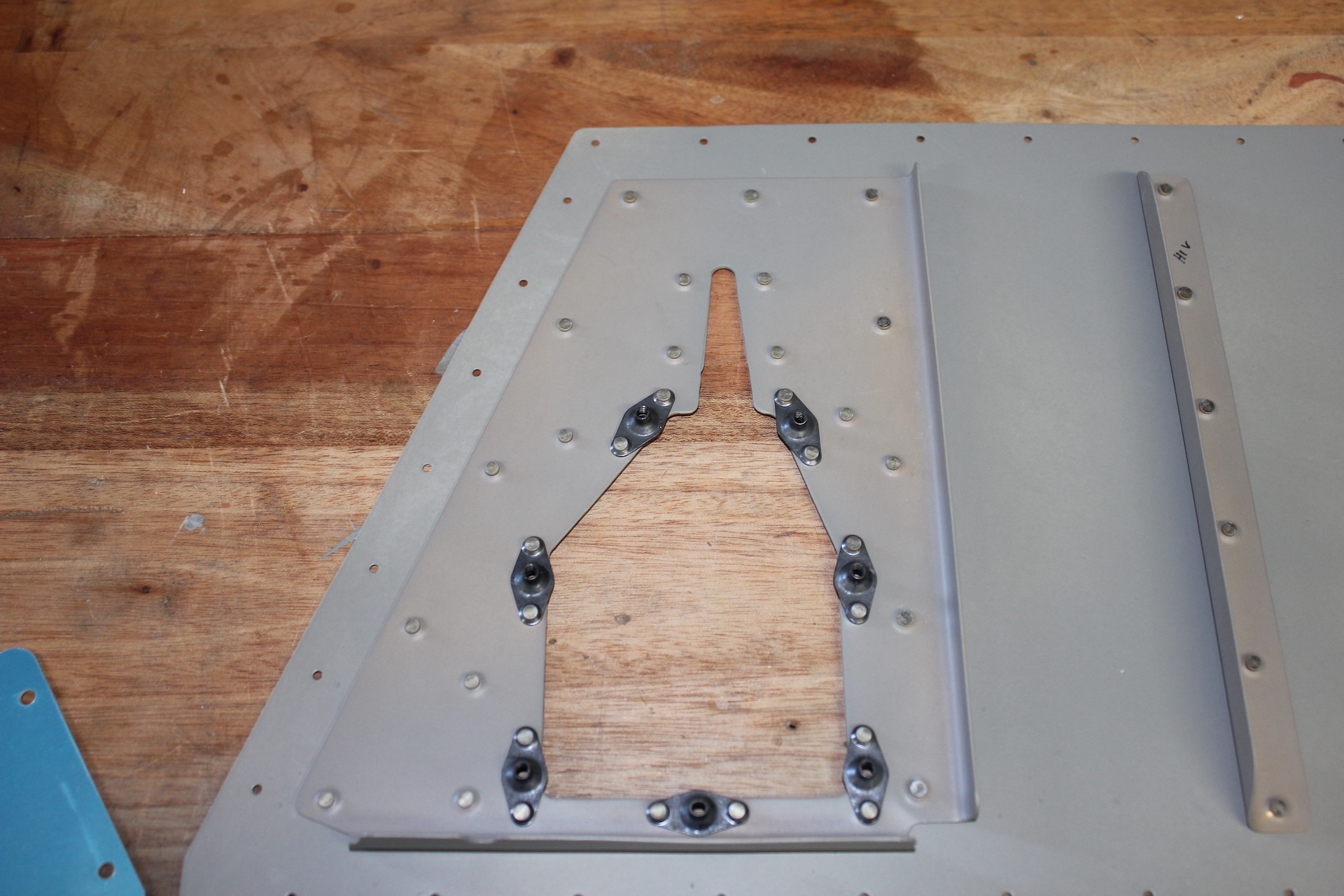

-RIVETED 615 PLATE TO SKIN
-DRILLED COUNTEBALANCE TO TO RIB/SKIN ASSY
-CLECOED SKELETON STRUCTURE TOGETHER

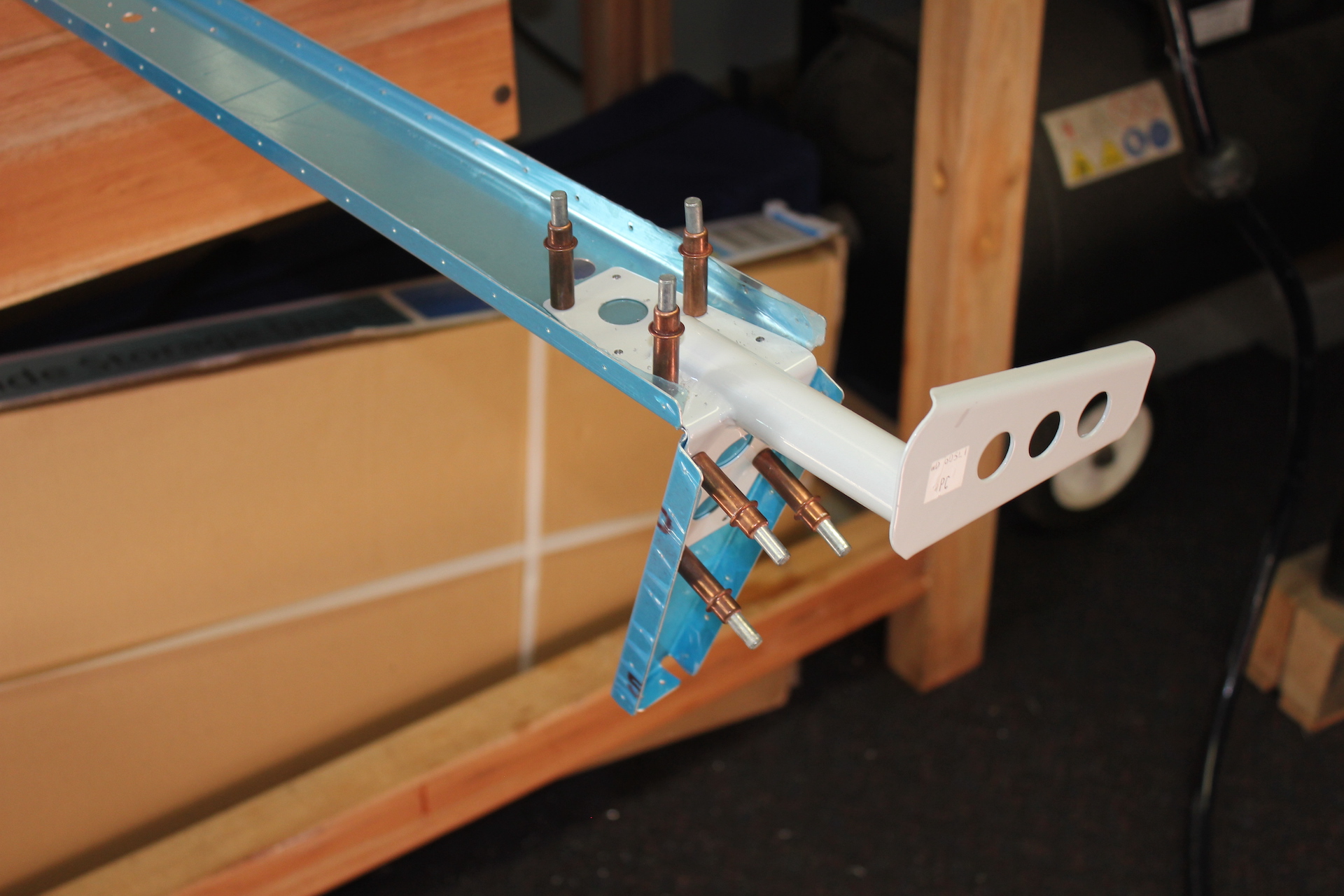

-FINAL DRILLED ROOT RIB & HORN TO STRUCTURE

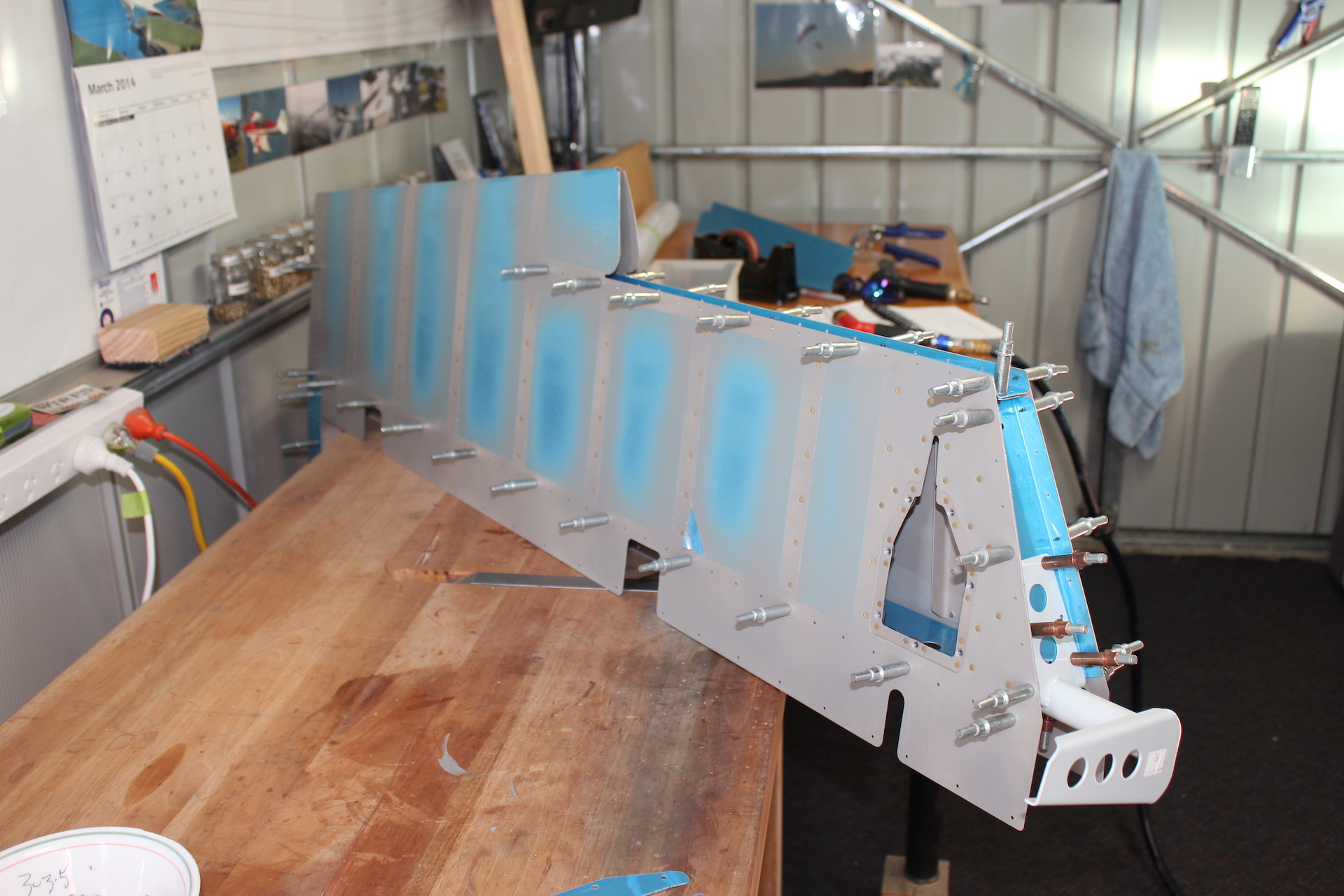

-CLECOED SKIN TO SKELETON
-FINAL DRILLED UPPER HALF
RIVETS – INST 112 – REM 0
TOTAL PROJECT RIVETS – INST 1939 – REM 39
Manual Reference:
Hours: 2.75
Total Hours: 179.75
