-Fabricated R-917 Shim

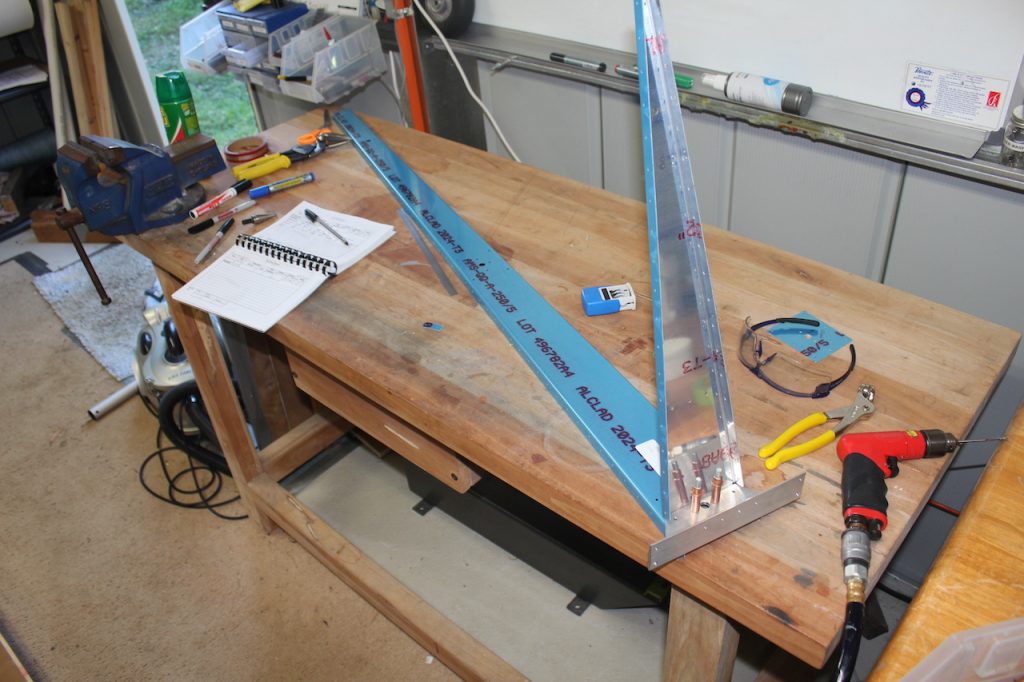

-Bolted R-405PD horn to spar & final drilled top holes
-Clecoed horn to lwr rib & radiussed horn to fit
-Clecoed horn and rib to spar then slipped shim in and drilled to #30

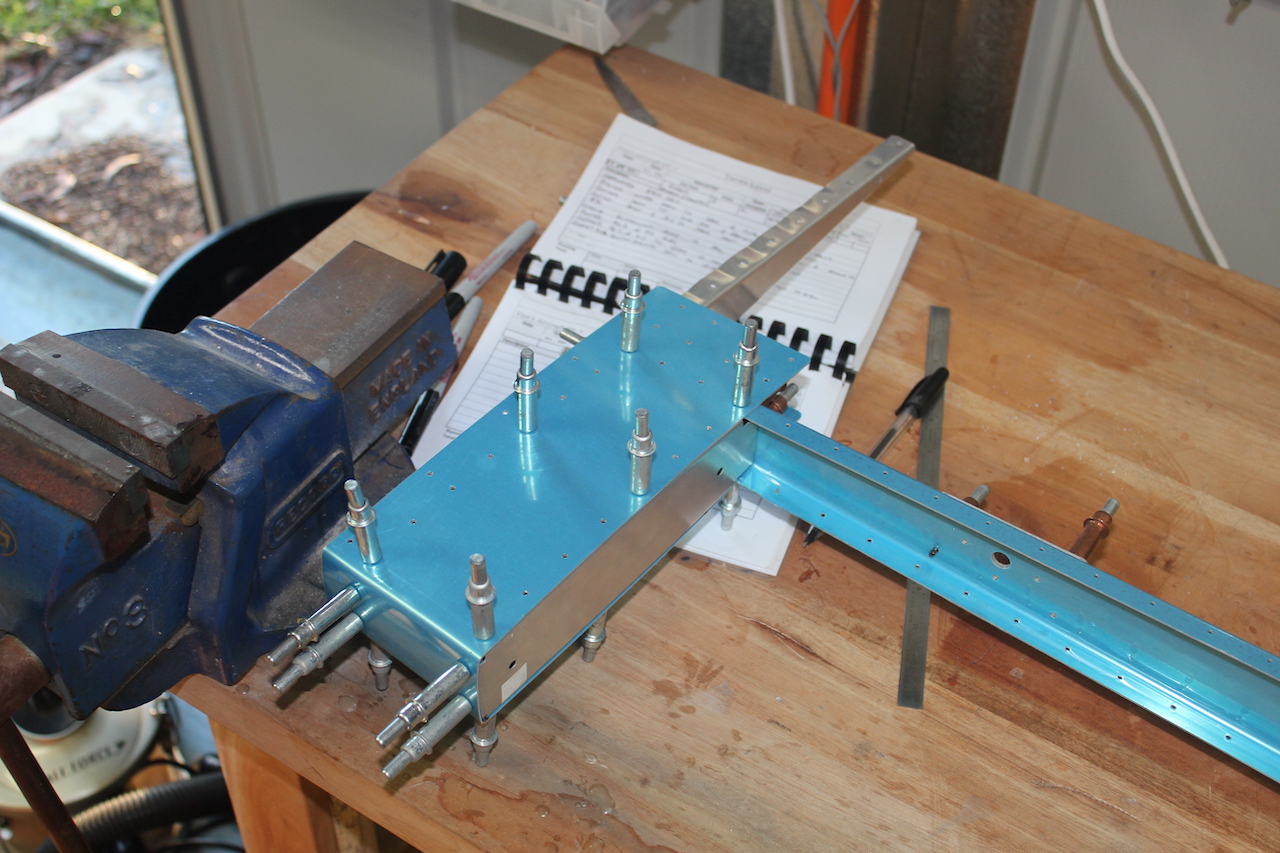

-Clecoed reinforcement plates to spar and match reamed
-Fluted R-903 & R-912 Ribs
-Clecoed 903 & 912 to spar and match reamed
-Clecoed R-913 counterbalance skin to 903 & 912 counterbalance ribs & match reamed

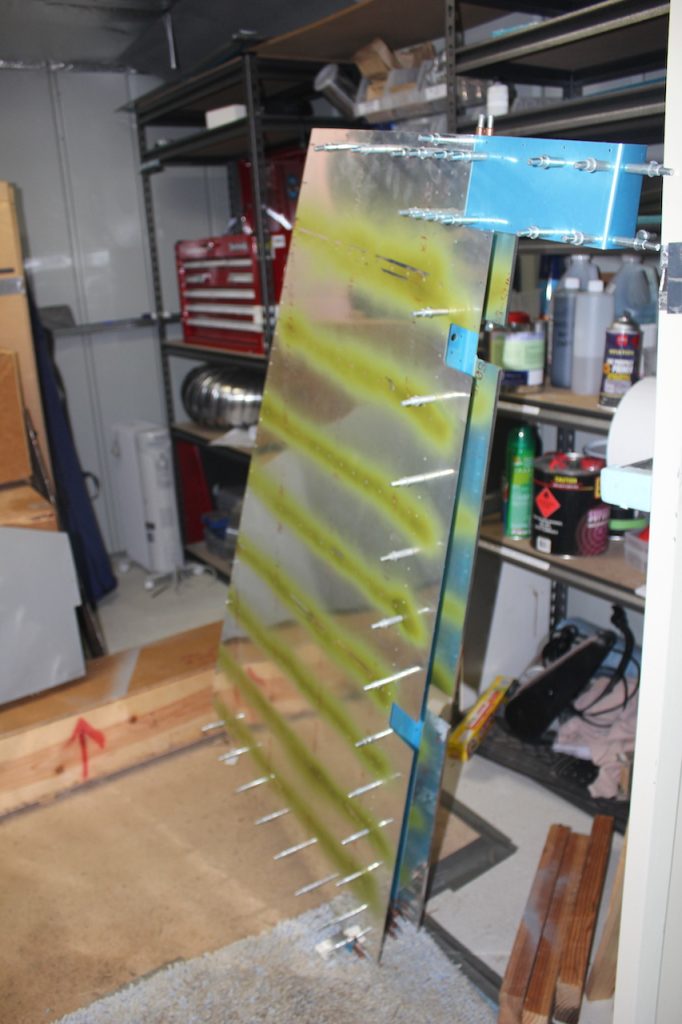

-Clecoed Skin to Skeleton assy ready to be final drilled
Manual Reference:
Hours: 2
Total Hours: 115.65
