Engine Teardown Started – Cylinders 1/3

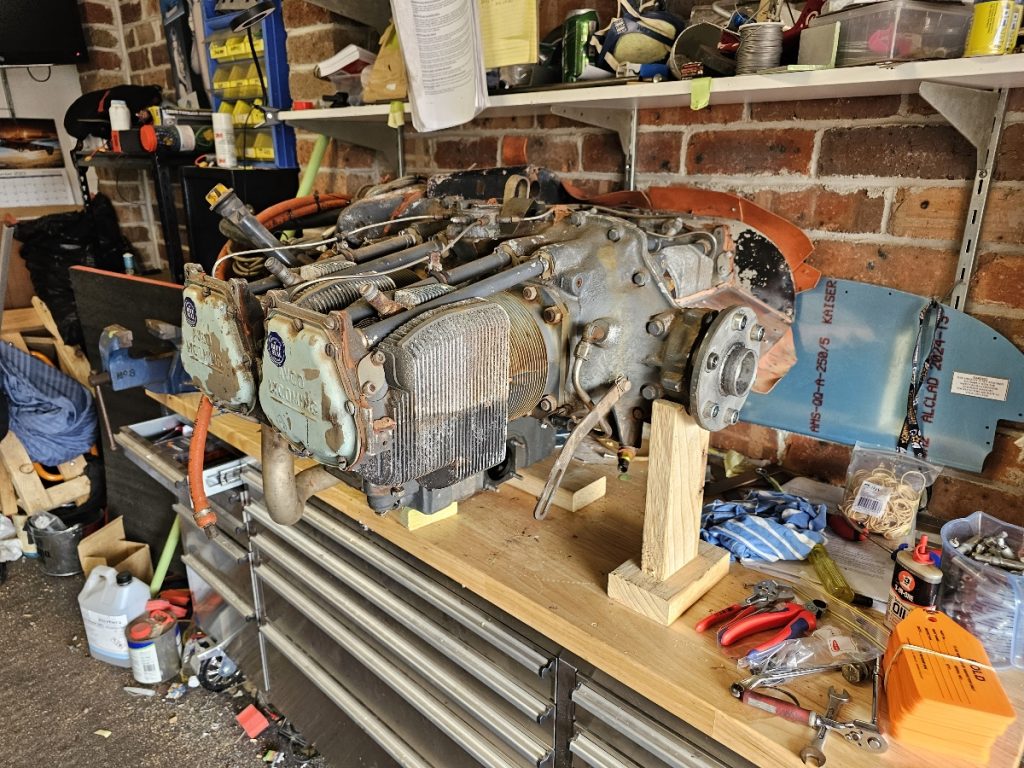

-Started off by mounting on my workbench & removing & discarding RHS baffles.

-Removed hoses (they will all be replaced), magnetos, fuel servo & dipstick/tube to give some more room

-Removed #1 & #3 Cylinders & Pistons, so far everything looks great and no sign of issues with the pistons & cylinders apart from some gunk crusted up on them

-Everything so far has had a good layer of preservative oil still coating it

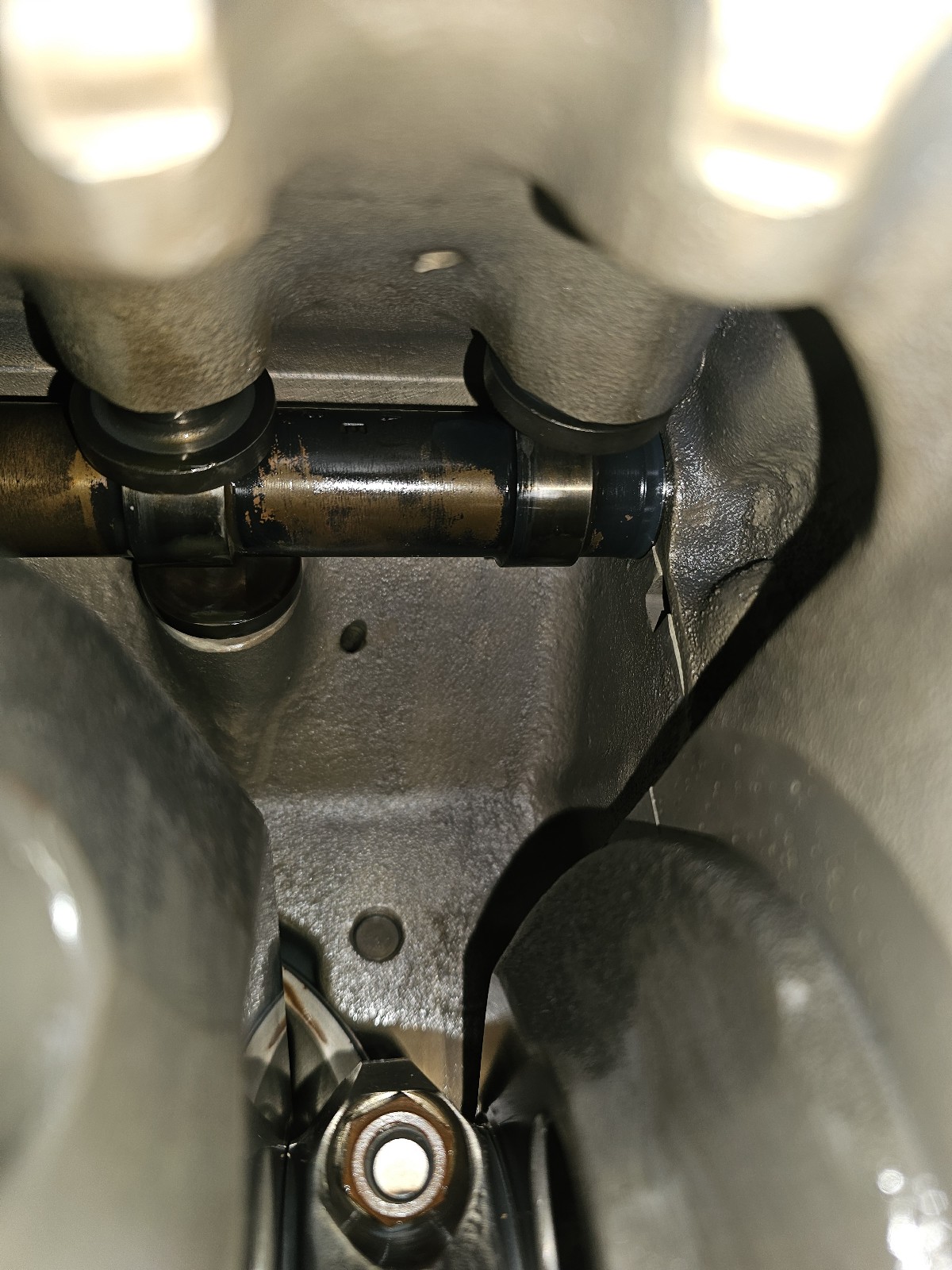

-The camshaft looks to have some discolouration on the shaft & I cant really see the lobes well, but will have to have a good look once the case is opened up

Manual Reference: OHM-60294-7-14
