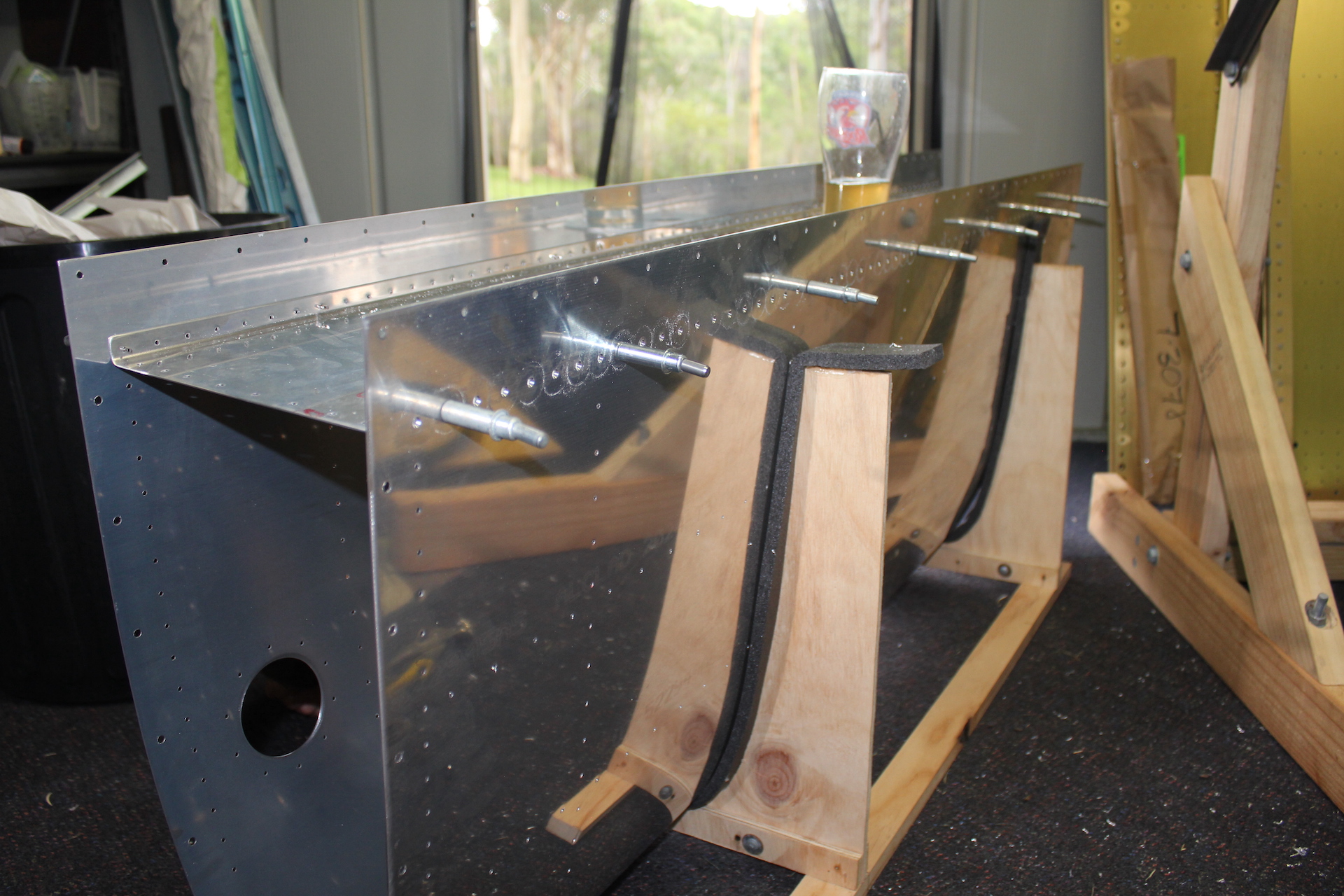

-Drilled fuel tank assembly
-Drilled Fuel pickup holes to 411 panel
-Cut out 711 stiffeners which I hadn’t done previously
-Tidied up stiffeners
-Drilled Stiffeners to to skin
-Countersunk Fuel Tank skin only on baffle row of ribs
-Drilled spar attach screw holes to #19

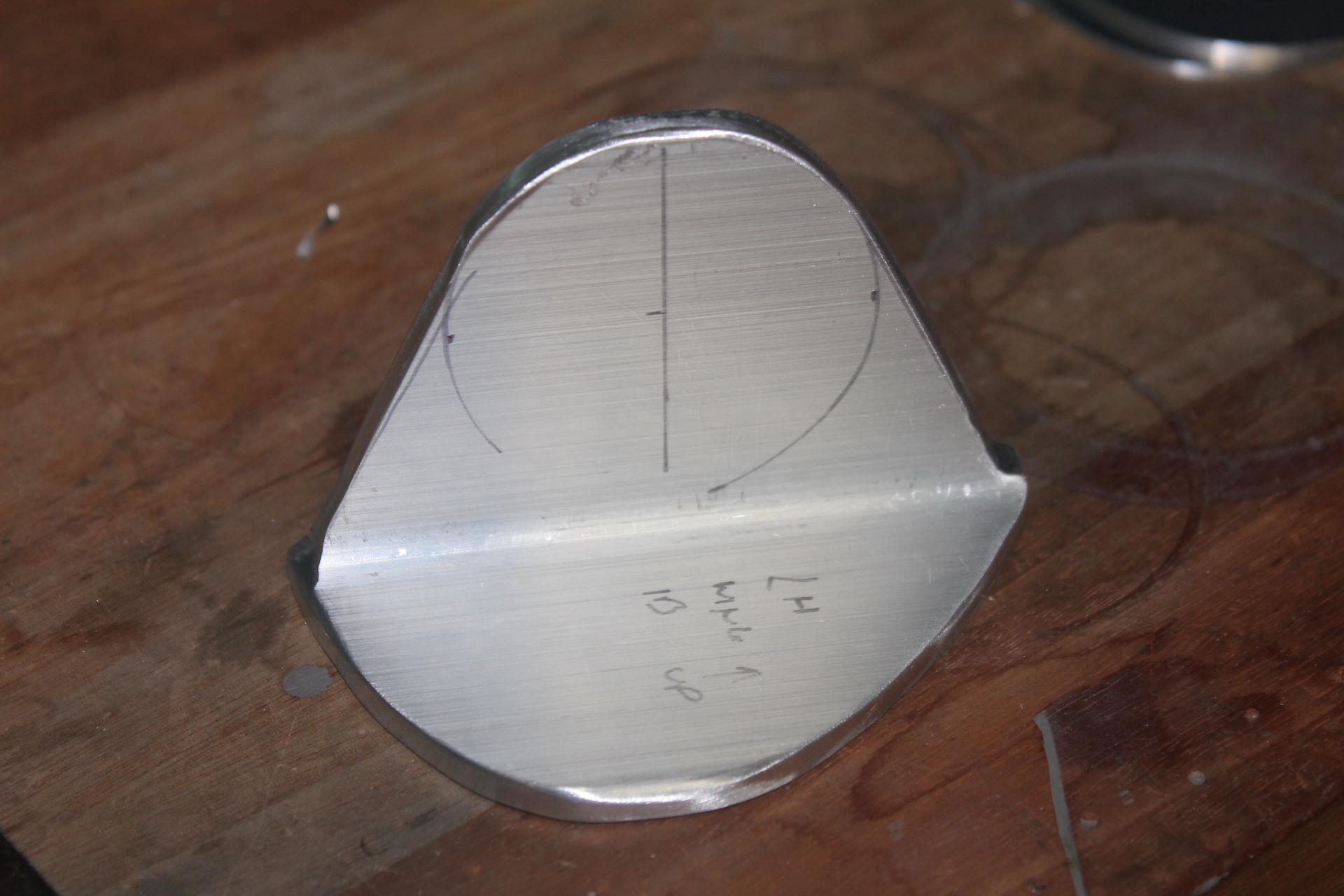

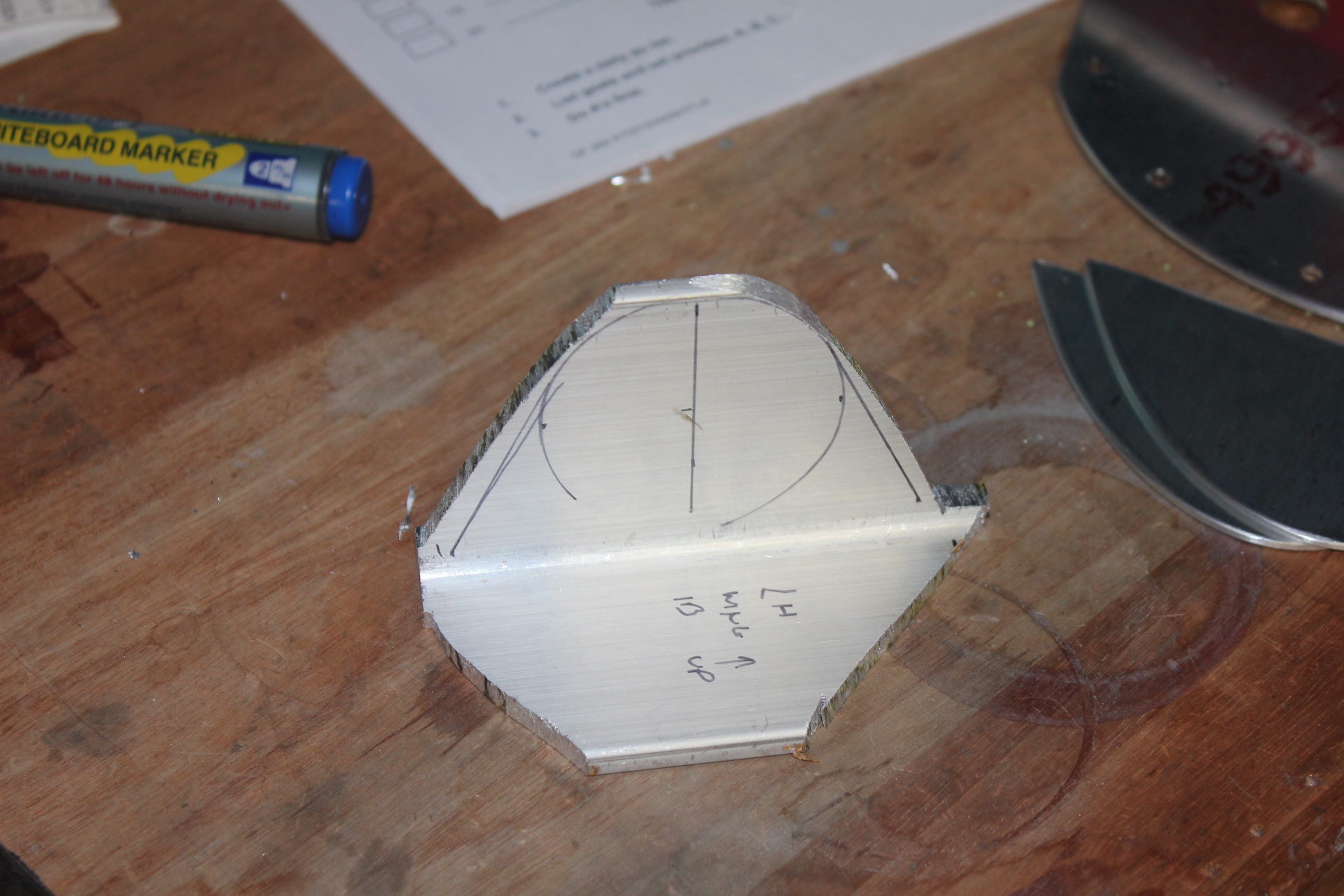

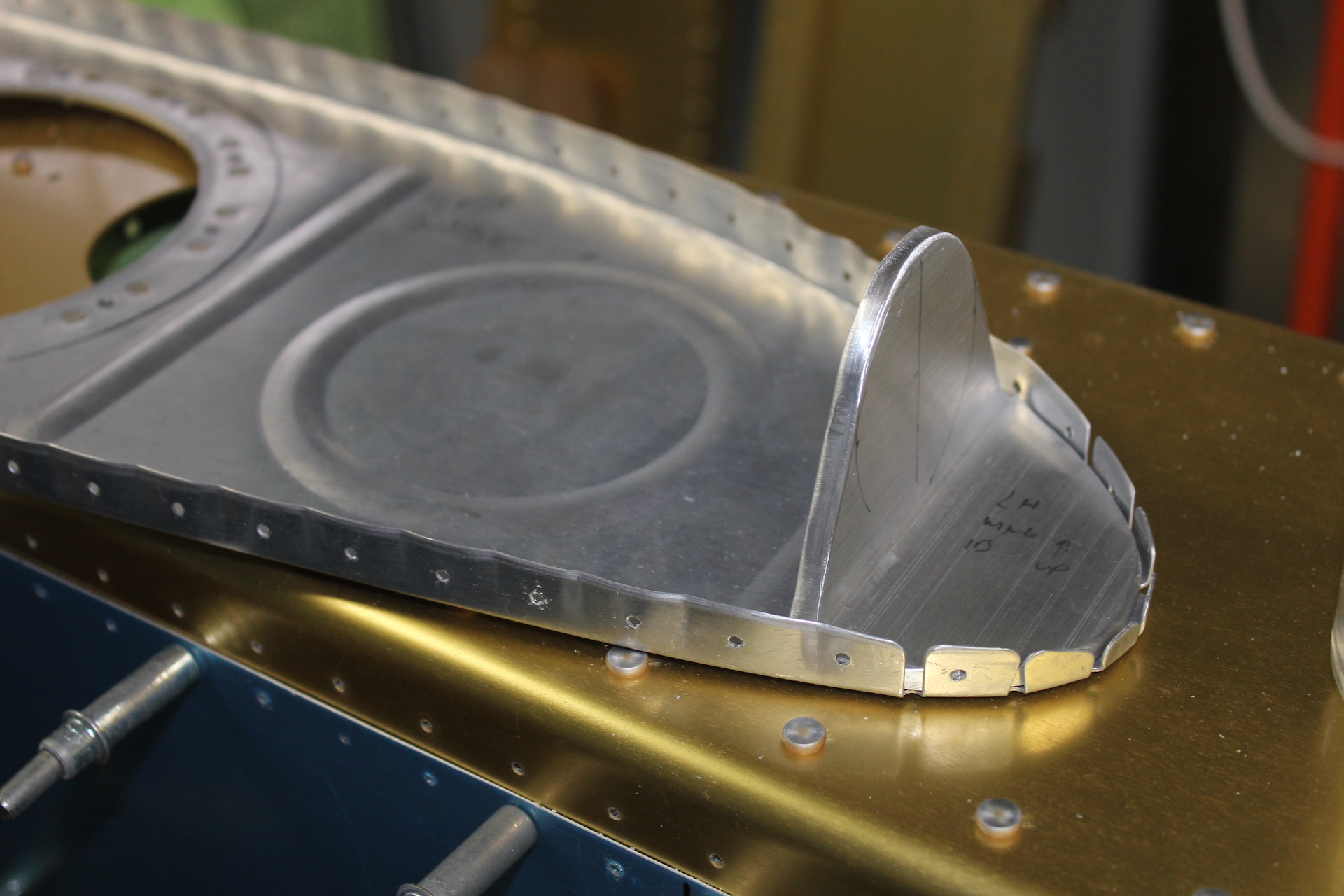

-Fabricated T405 attach angle, I didn’t have a bandsaw or similar so I had to make do with a hacksaw, linishing belt & scotchbrite wheel
-Deburred T410 plates
-Drilled 405 plates roughly as shown in plans

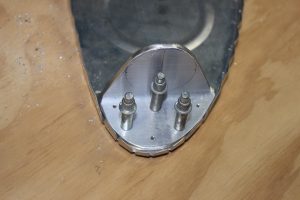

-Clamped 405 & 410 Reinforcement plates on end ribs & drilled

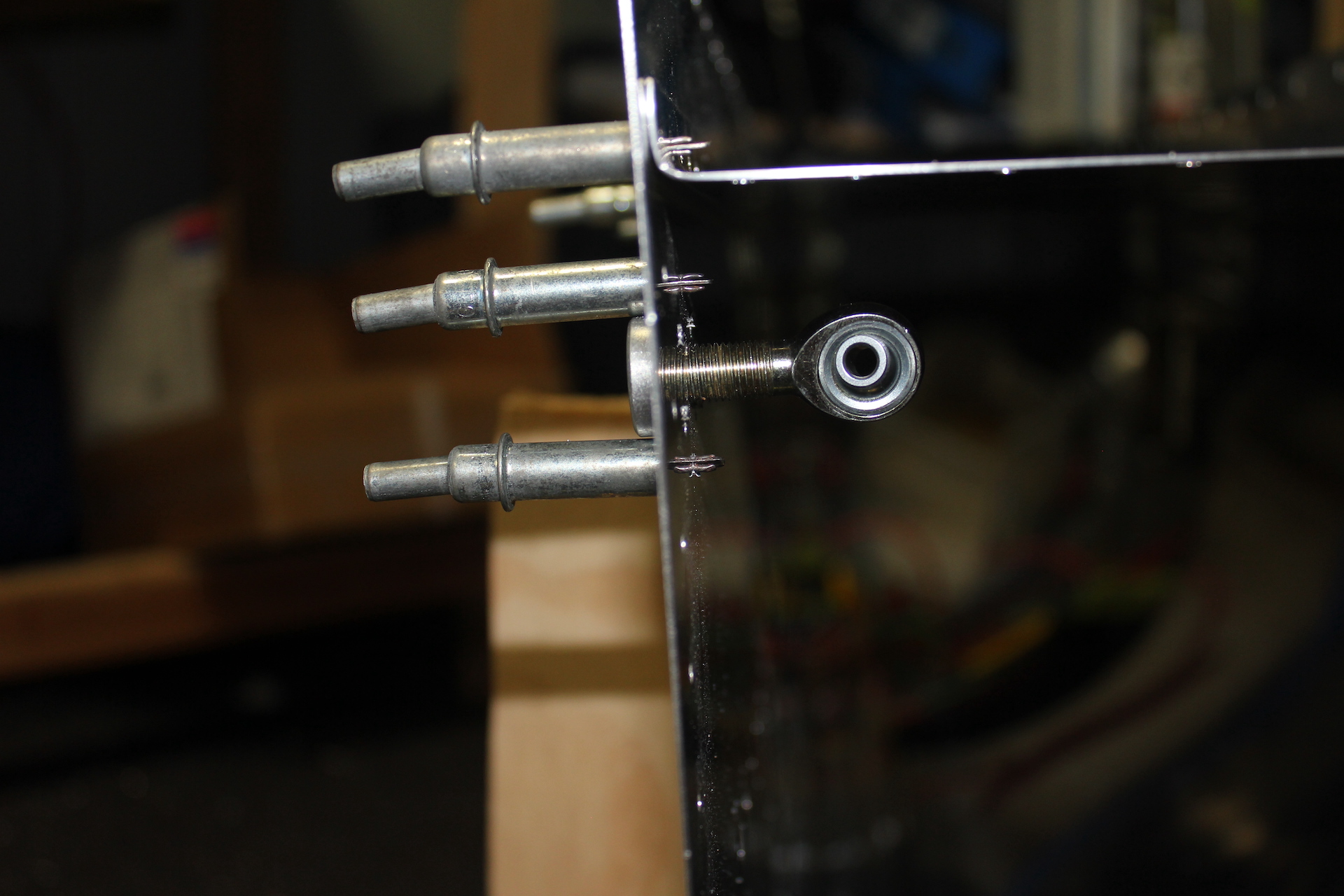

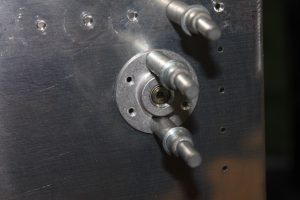

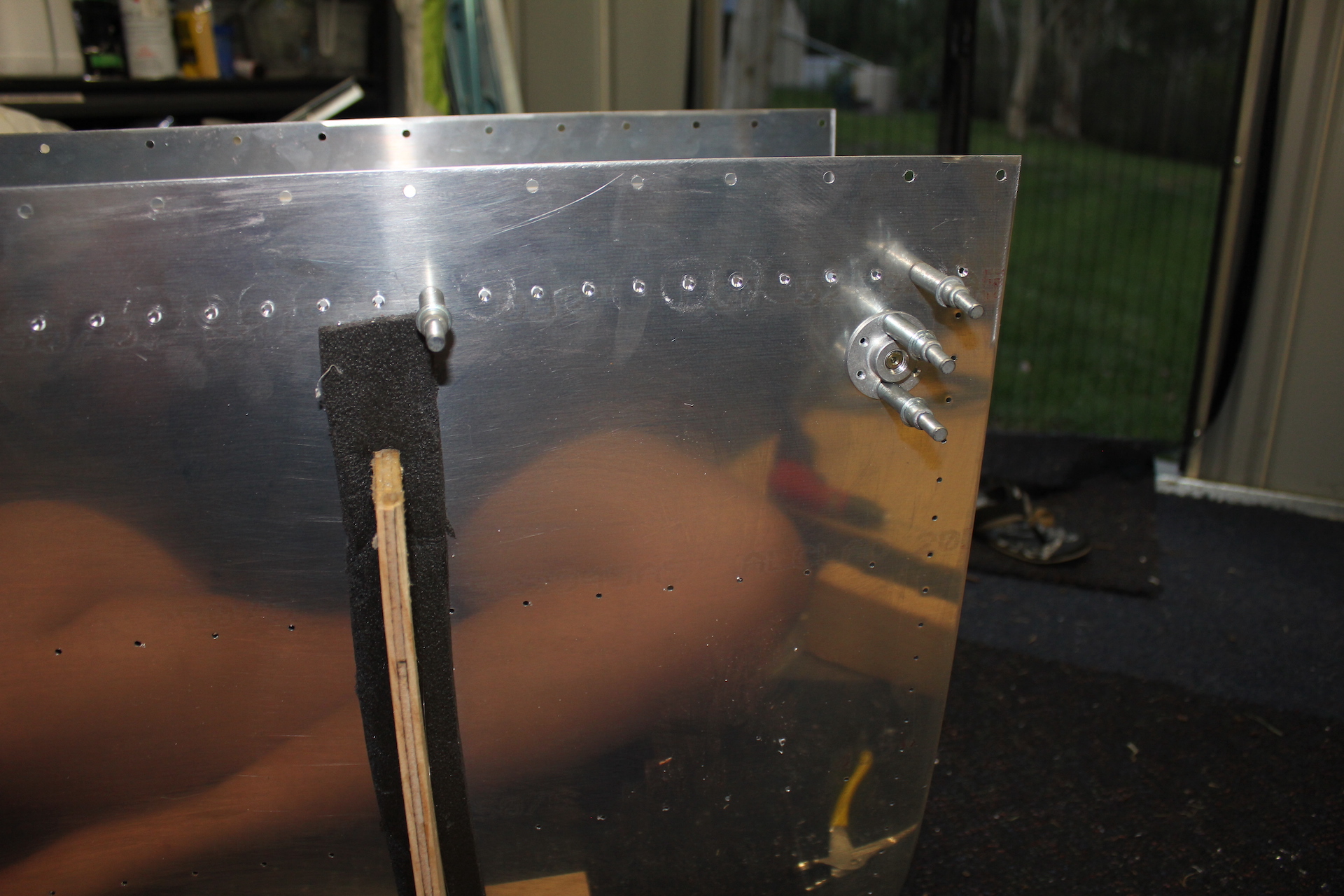

-Drilled & Clecoed VA112 drain flange to tank, used rod end bearing to align hole in tank skin.
-Have to skip over fitting the cap assembly as I ordered the delux cap and am still waiting for it to arrive.
Manual Reference:
RIVETS – INST 0 – REM 0
WING RIVETS – INST 447 – REM 24
TOTAL PROJECT RIVETS – INST 2662 – REM 71
Hours: 6.5
Total Hours: 291.75
