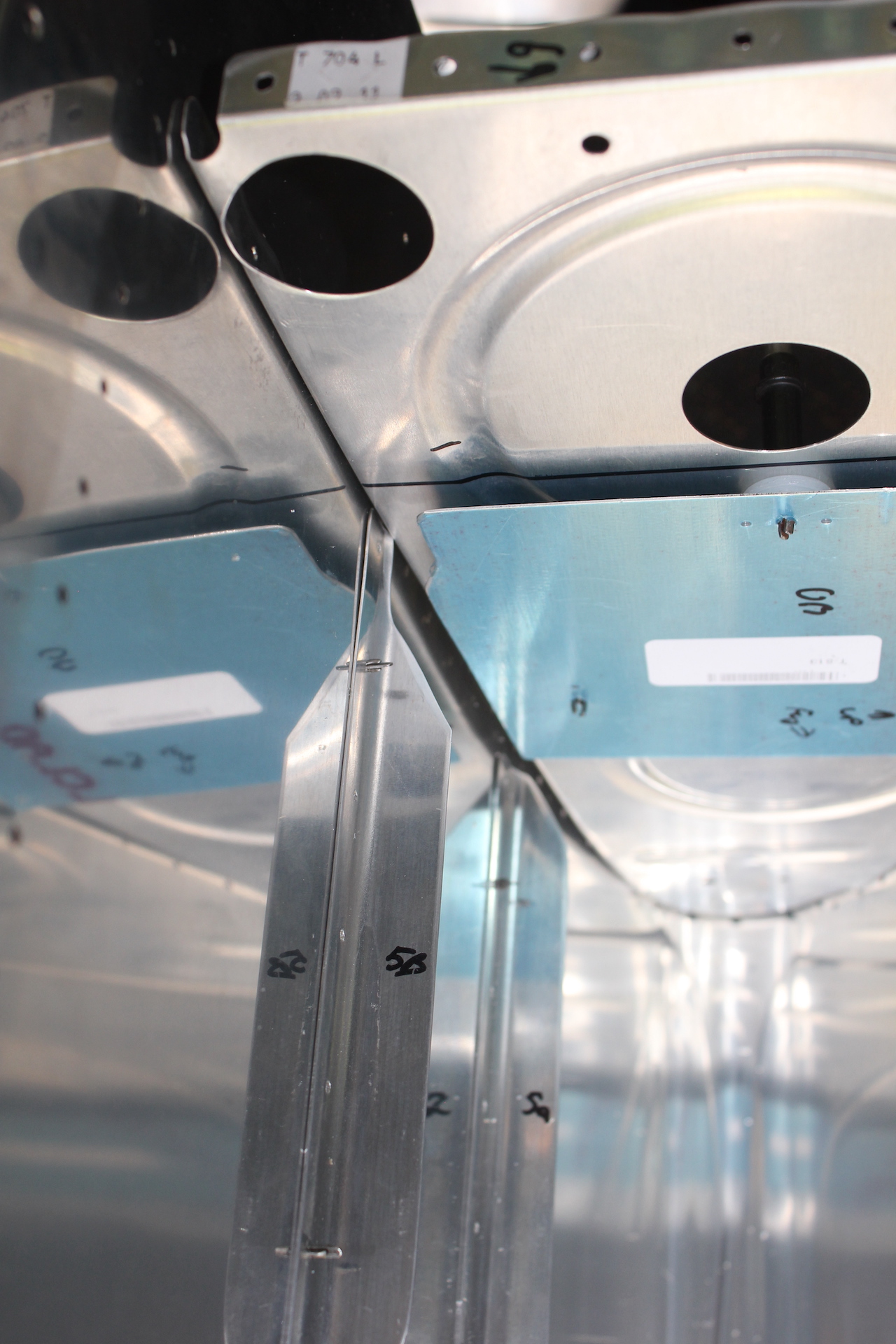

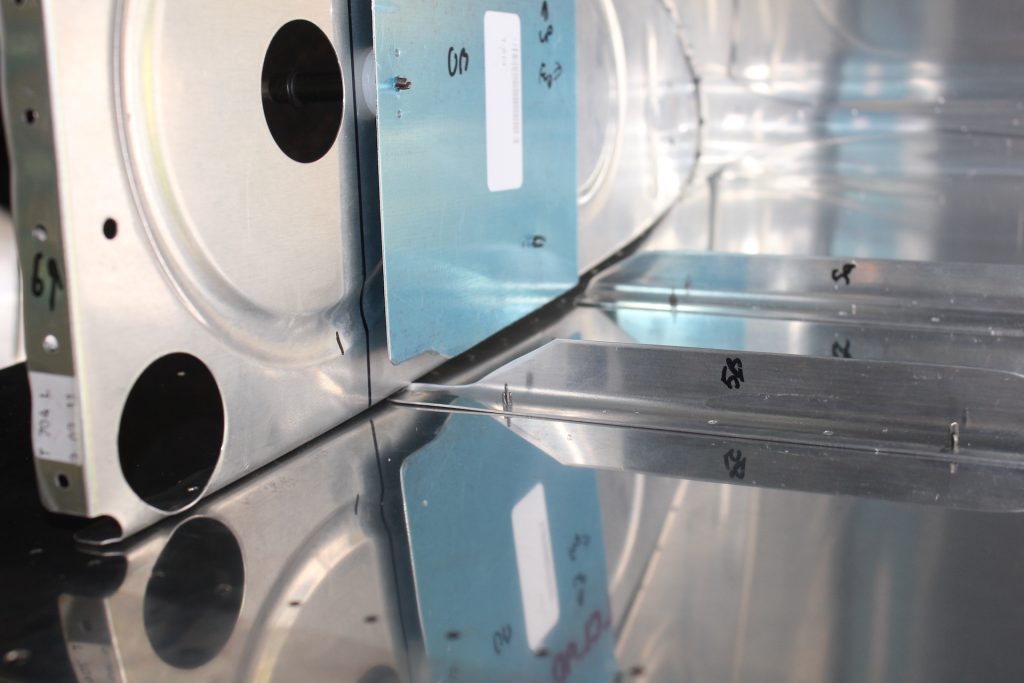

-Drilled Capacitive fuel plate to OB rib #20
-Opened rib holes up to 1/4″
-Trimmed stiffeners & plate to give required clearance
-Drilled Capacitive fuel plate to IB rib #20
-Opened rib holes up to 1/4″
-Riveted nutplates to Capacitive Plates
-Modified snap bushings to fit both capacitive fuel sensor wire and 1/4″ fuel tube.
Manual Reference:
RIVETS – INST 12 – REM 0
WING RIVETS – INST 459 – REM 24
TOTAL PROJECT RIVETS – INST 2674 – REM 71
Hours: 2
Total Hours: 293.75
