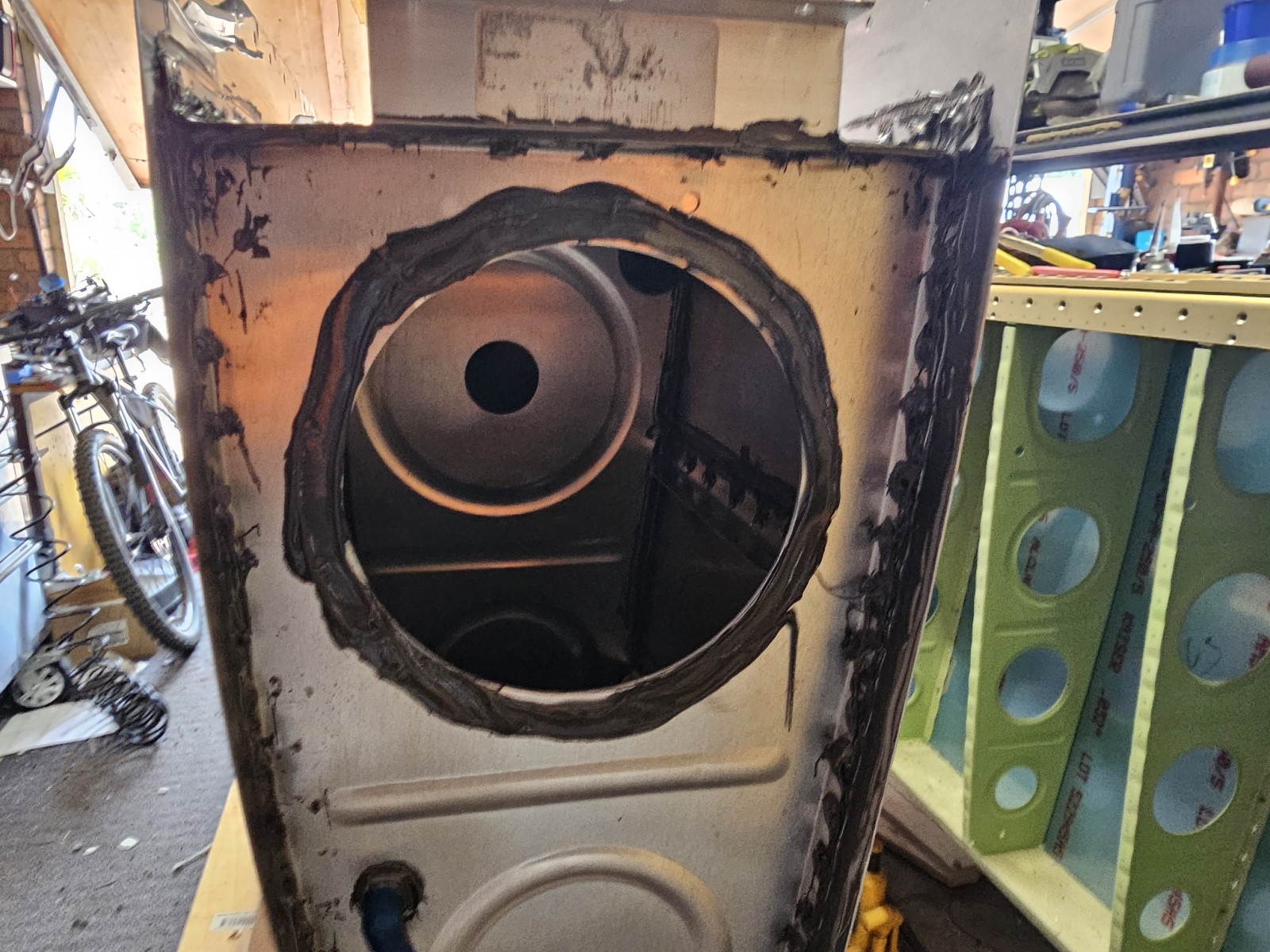

RH Fuel Tank – Fitting Access Panel

-Removed partially set rivet from the anti-rotation bracket, replaced with blind rivet and encapsulated with sealant

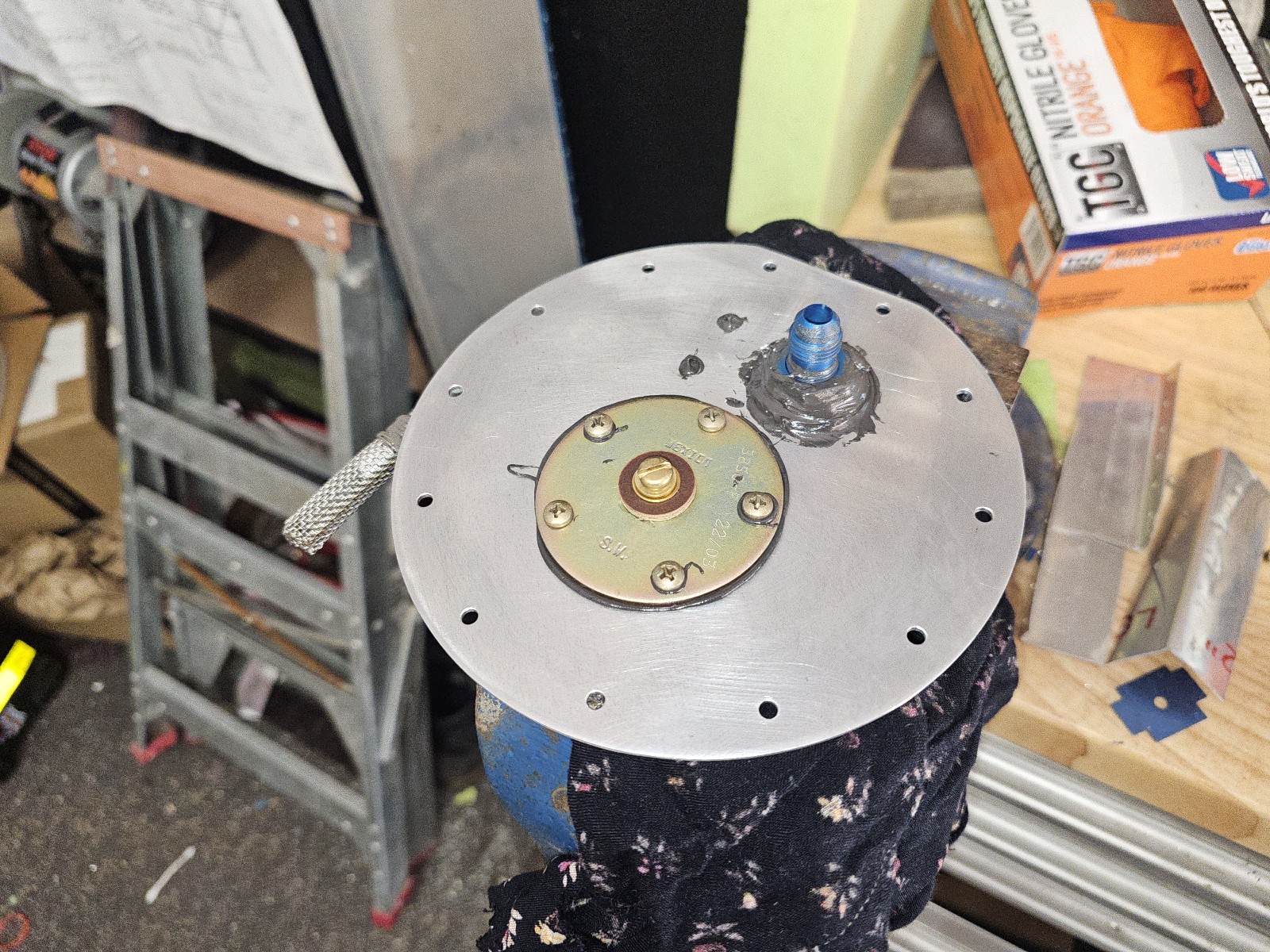

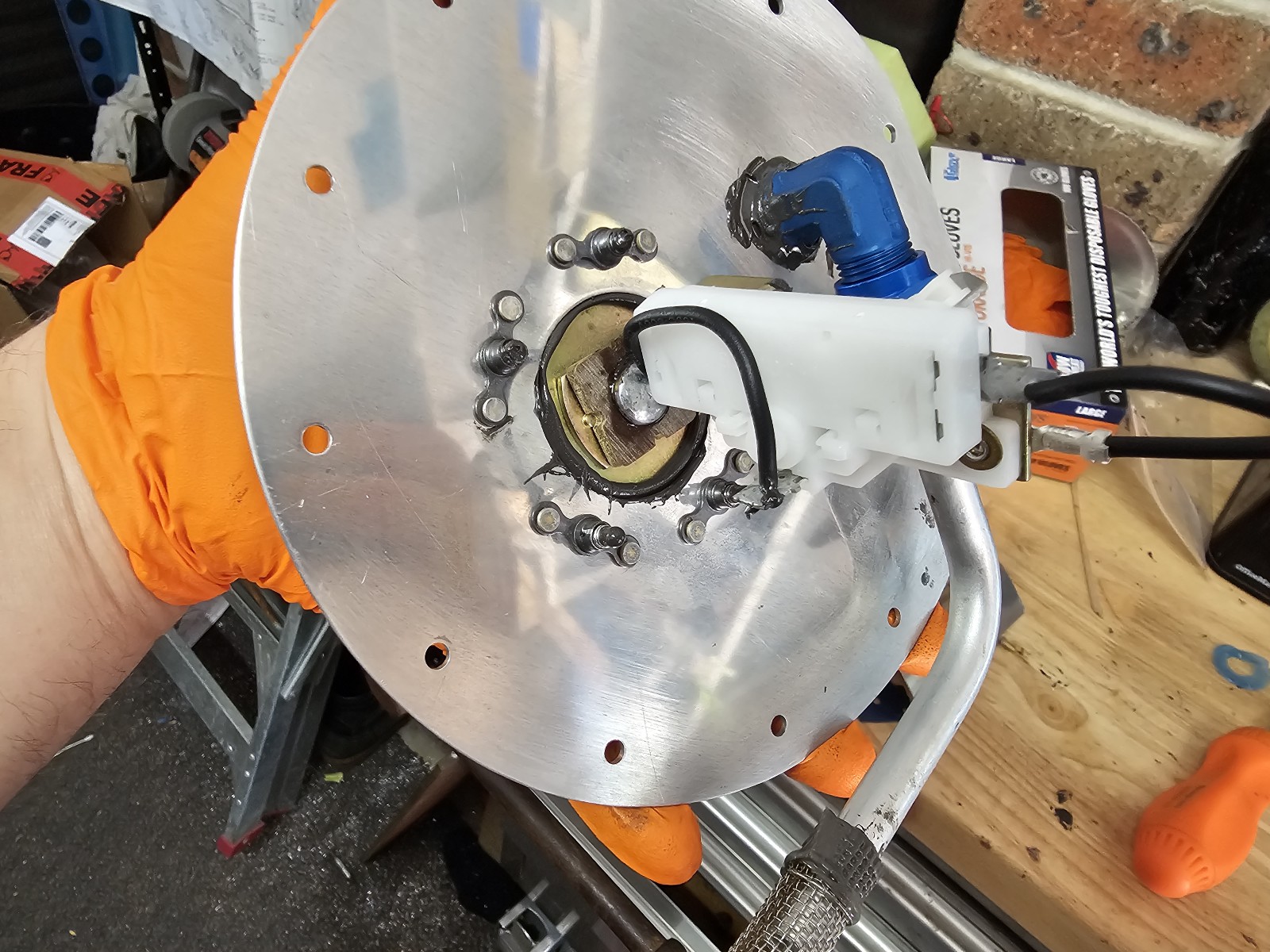

-Cleaned up parts, and sealed/screwed tank level sender to access panel

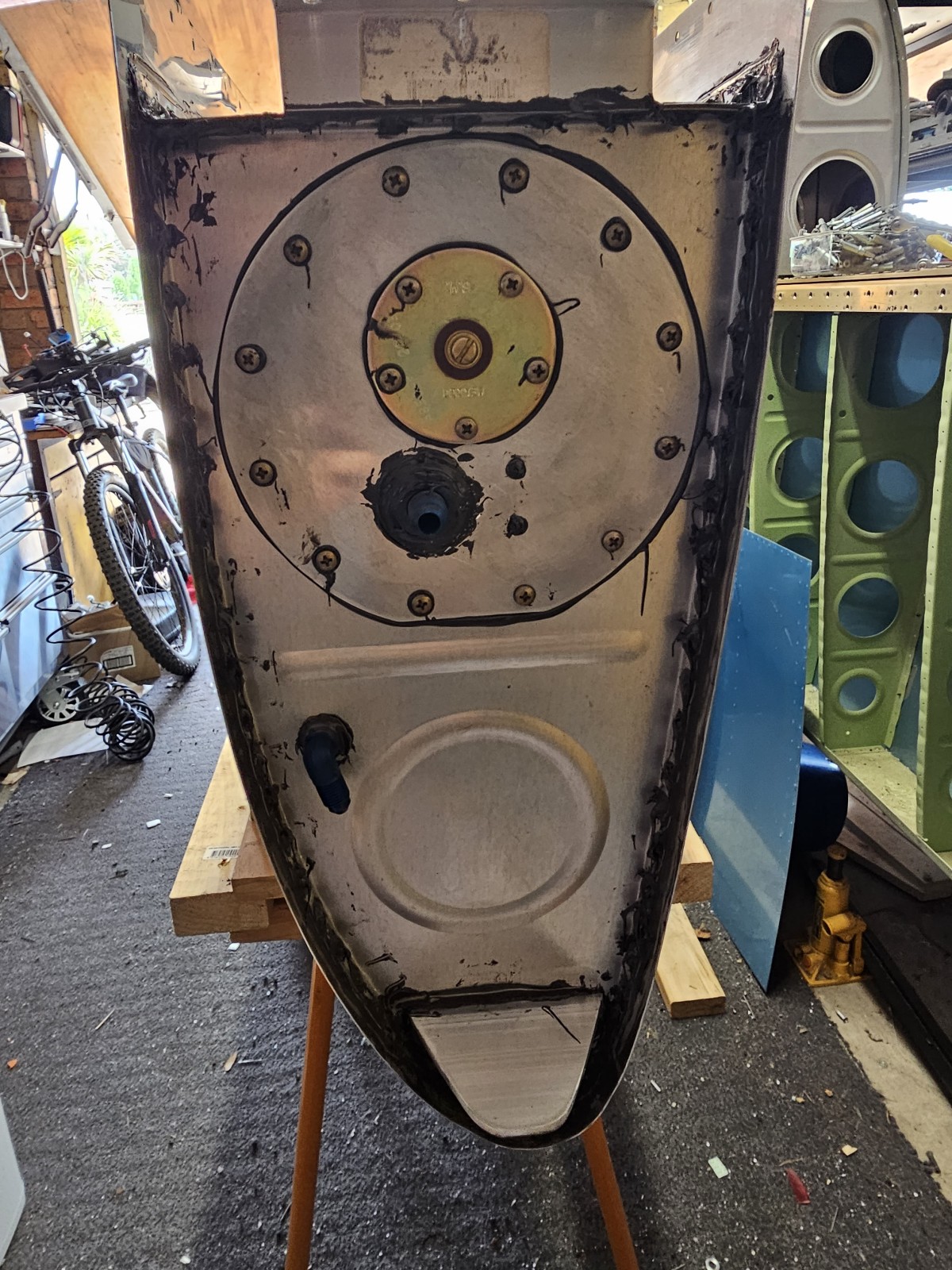

-Sealed & screwed access panel to tank

-Carried out continuity check of sender all satisfactory

-Apart from leak checks the right tank is now complete

Manual Reference: 7-8, DfD-0029

InstalledRemoved
Rivets Today10
Wing Rivets401276
Fuse Rivets1652
Empennage Rivets221549
Total Project Rivets6398126
Hours1
Total Hours567
