RH Fuel Tank – T405/Rib Dimpling

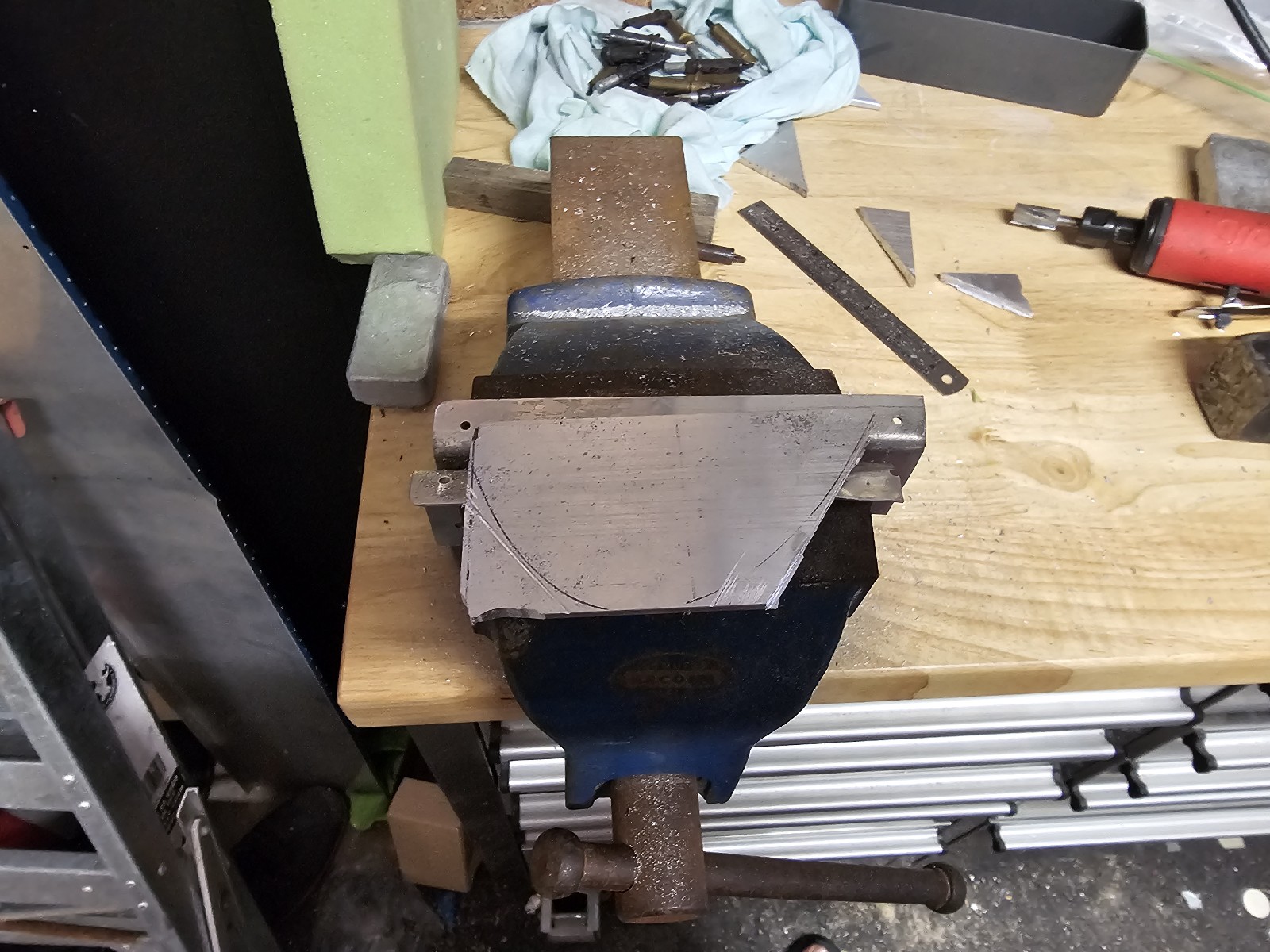

-Finished rough cut of T405 tank angle

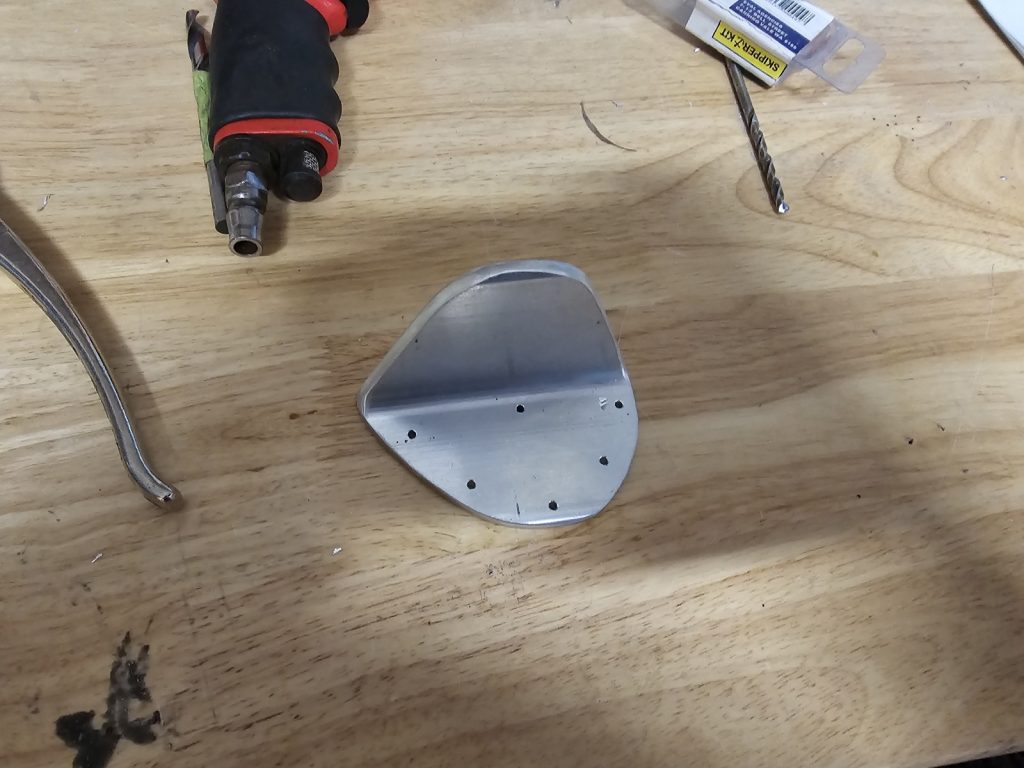

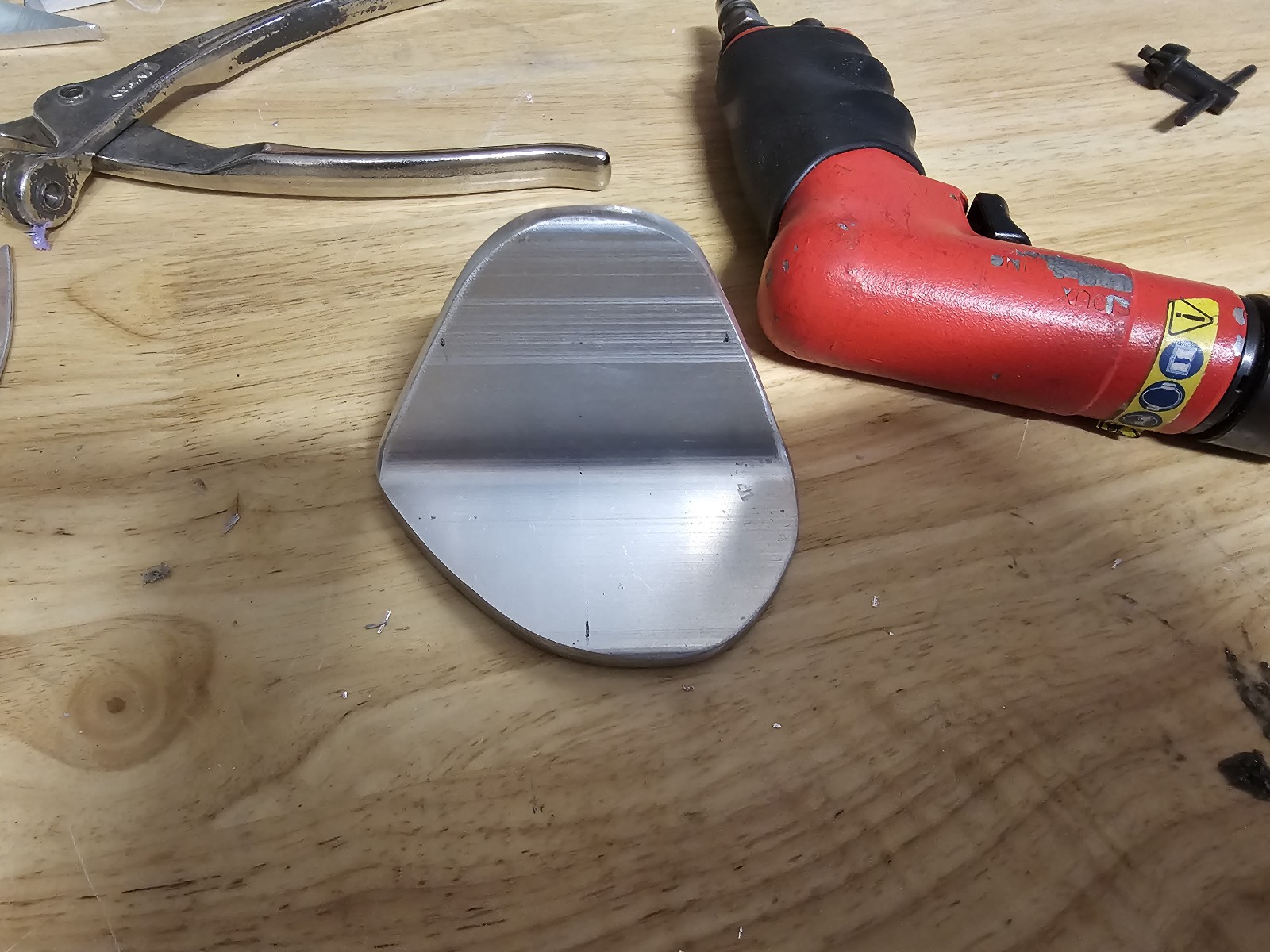

-Tidied up T405 using rotary burr in the die grinder, belt sander & scotchbrite wheel

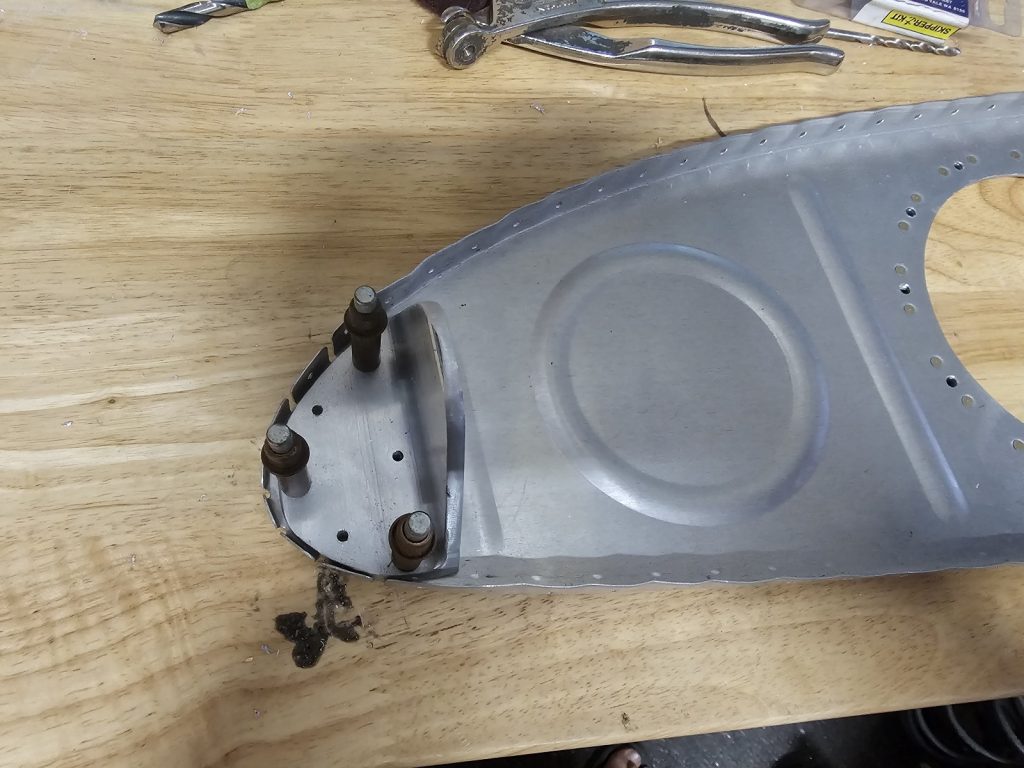

-Drilled T405 from T410 & clamped/drilled to IB rib

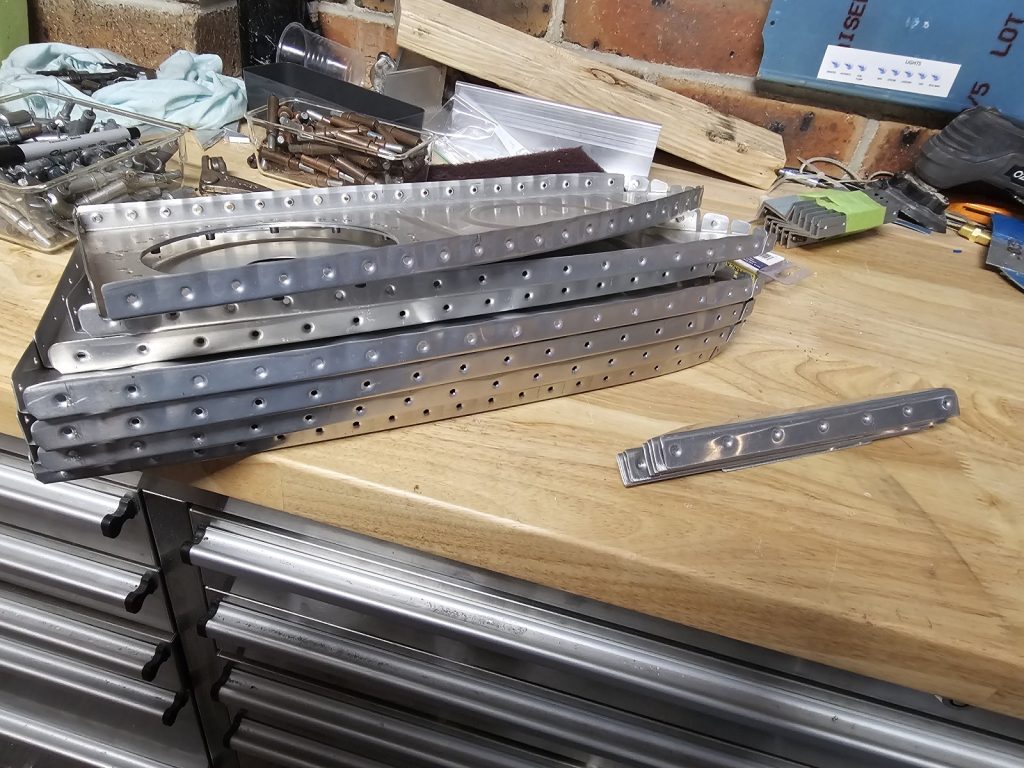

-Dimpled all ribs & stiffener angles

-Drilled spanwise tank skin to spar holes to #19 & deburred

–Still need to dimple but gotta figure out a way to avoid cracking so it can wait

Manual Reference: 7-6

InstalledRemoved
Rivets Today00
Wing Rivets345374
Fuse Rivets1652
Empennage Rivets221549
Total Project Rivets5839124
Hours2
Total Hours548
