RH Fuel Tank – Vent Line/T-405

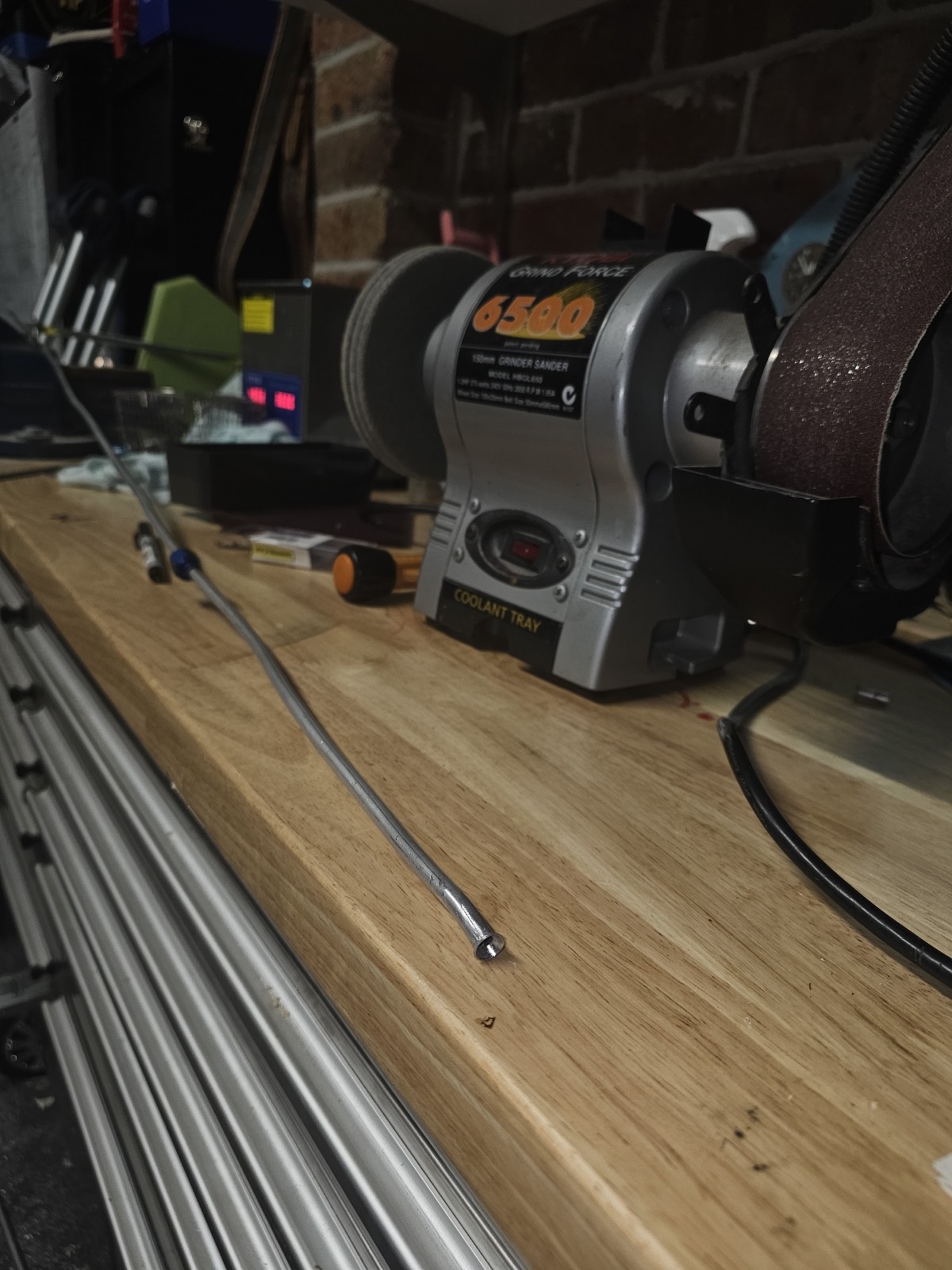

-Cut vent line to length & straightened

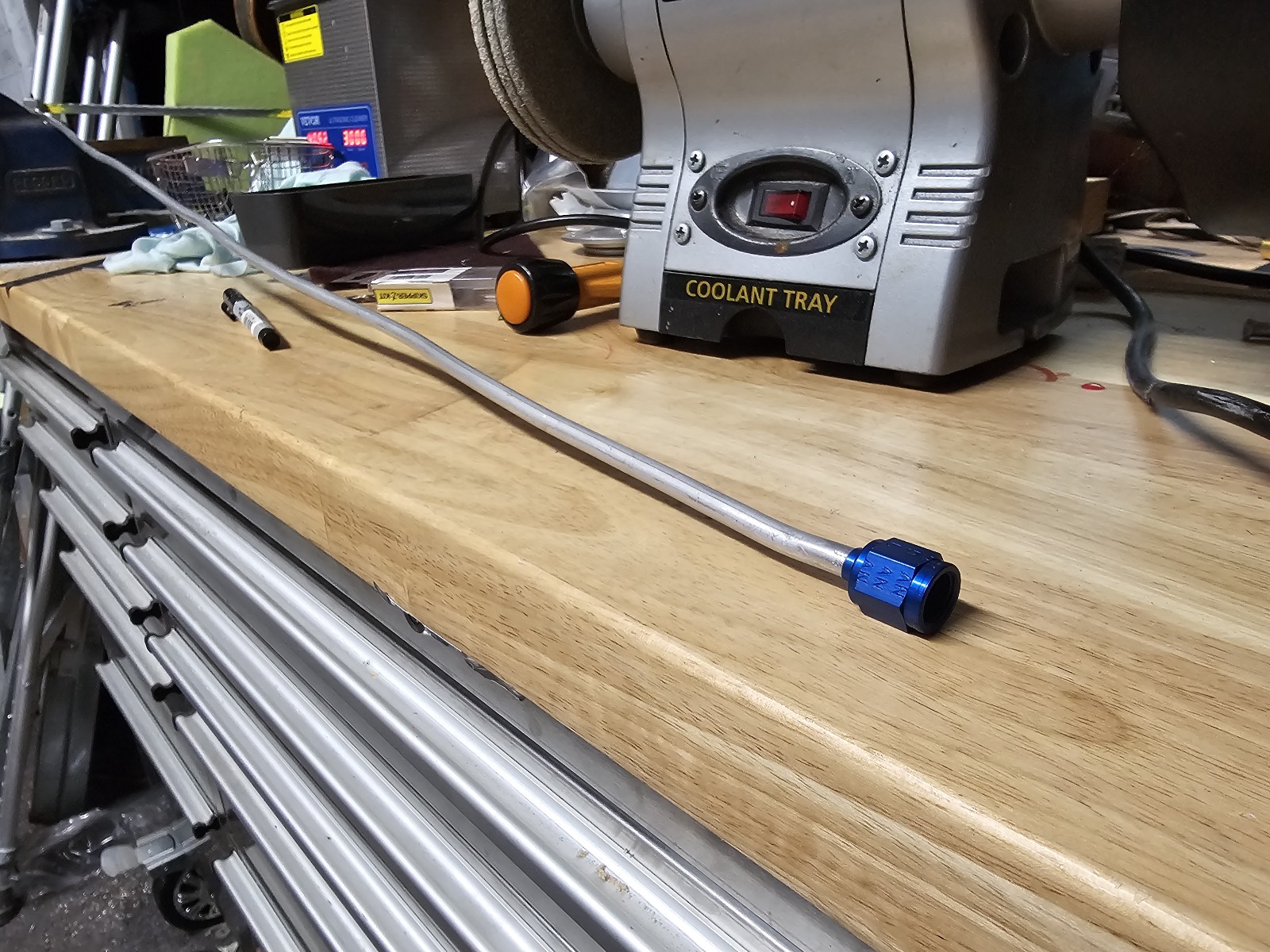

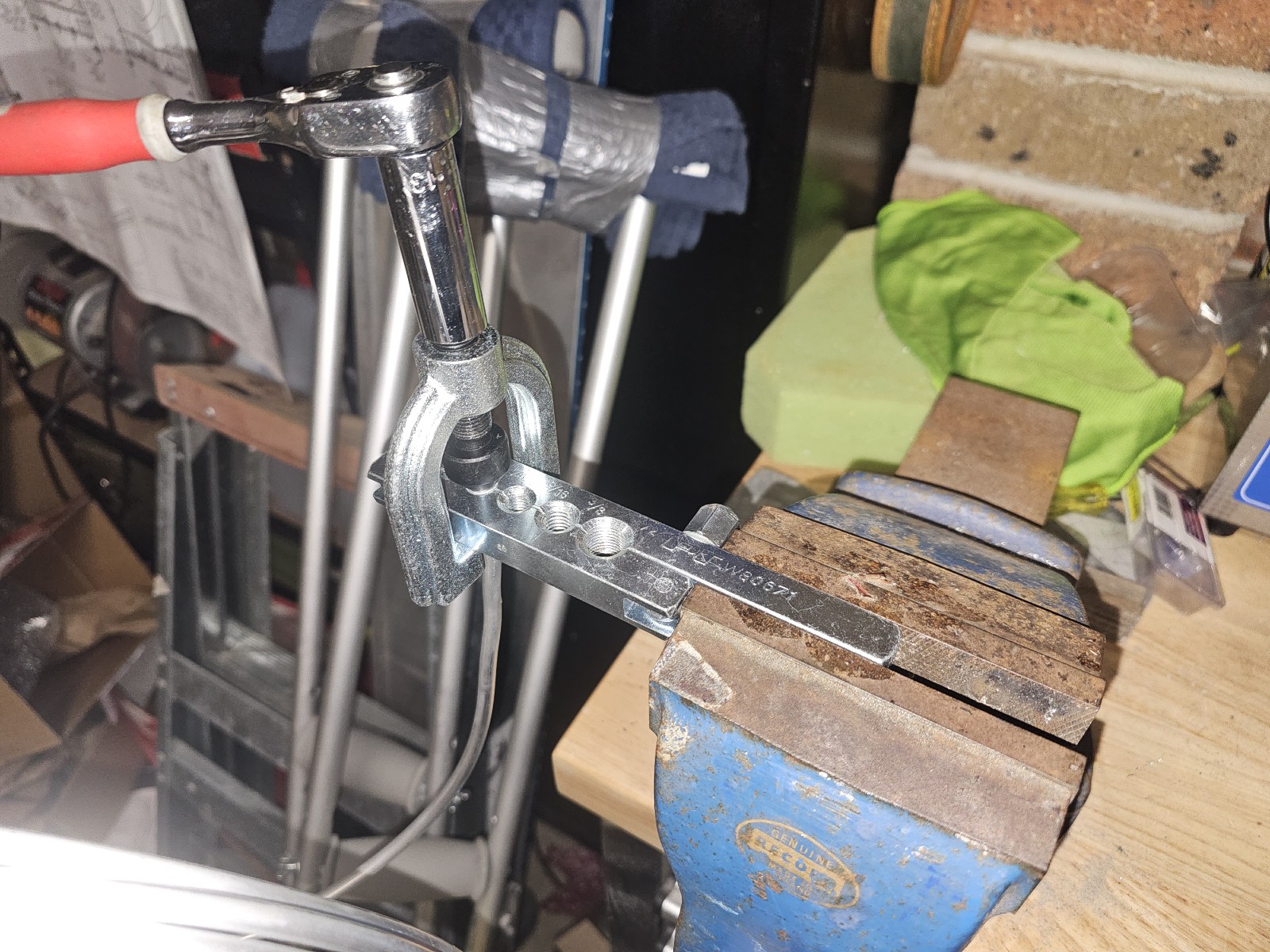

-Flared end, tidied up and fitted AN nut & sleeve

–Would have liked a better flare, it’s fine for the vent line but I think i’m gonna invest in a better flaring tool for future

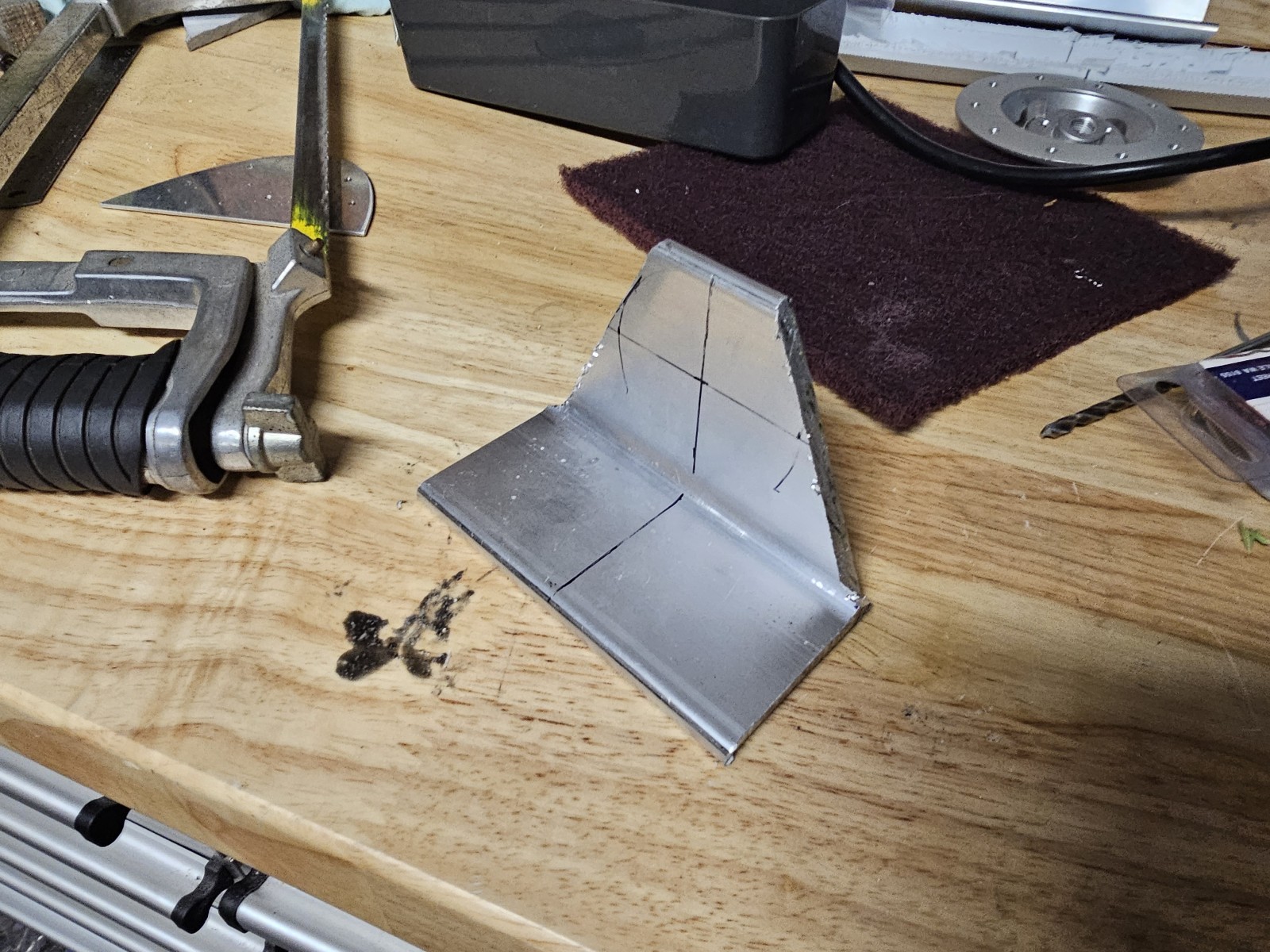

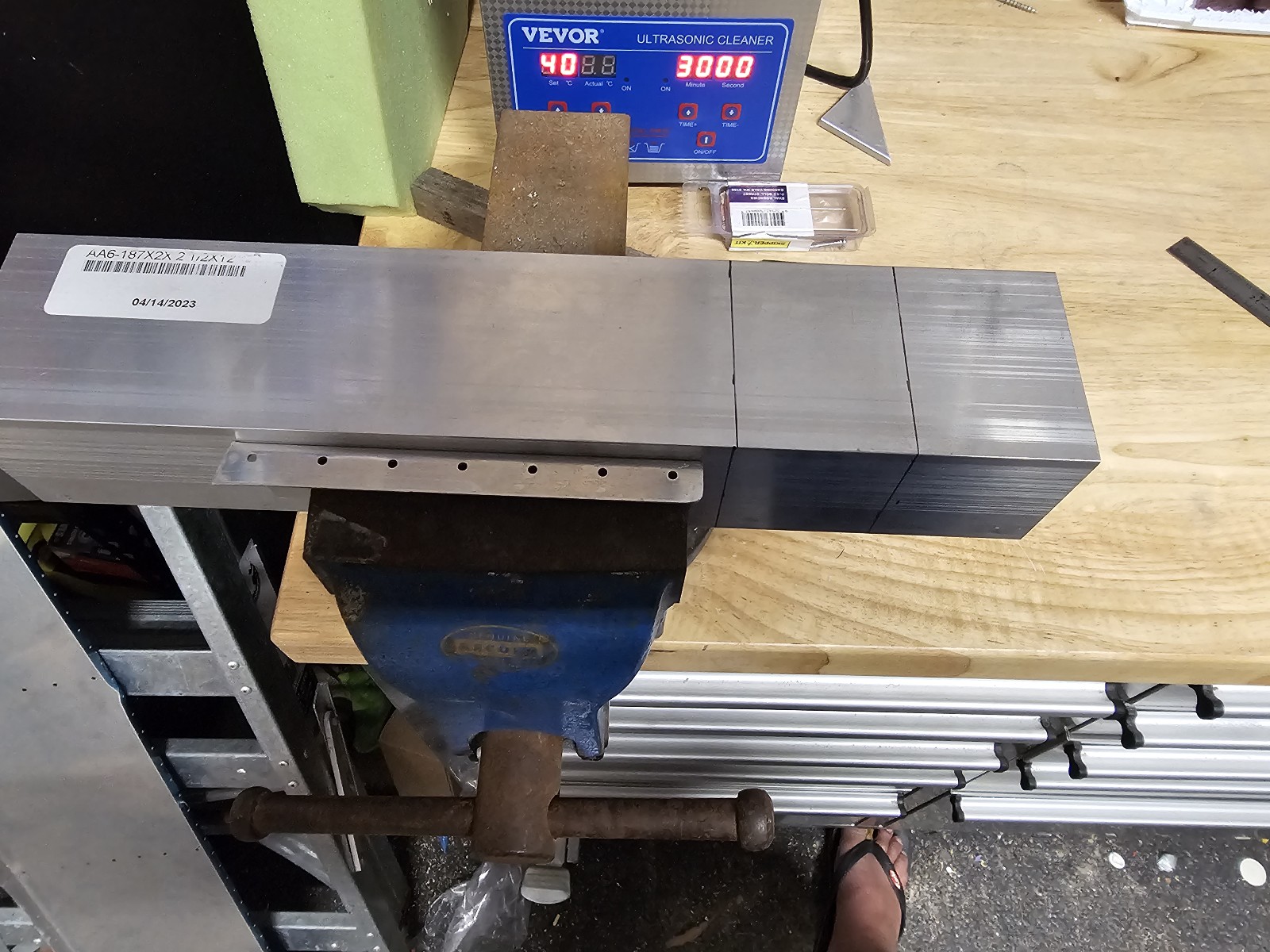

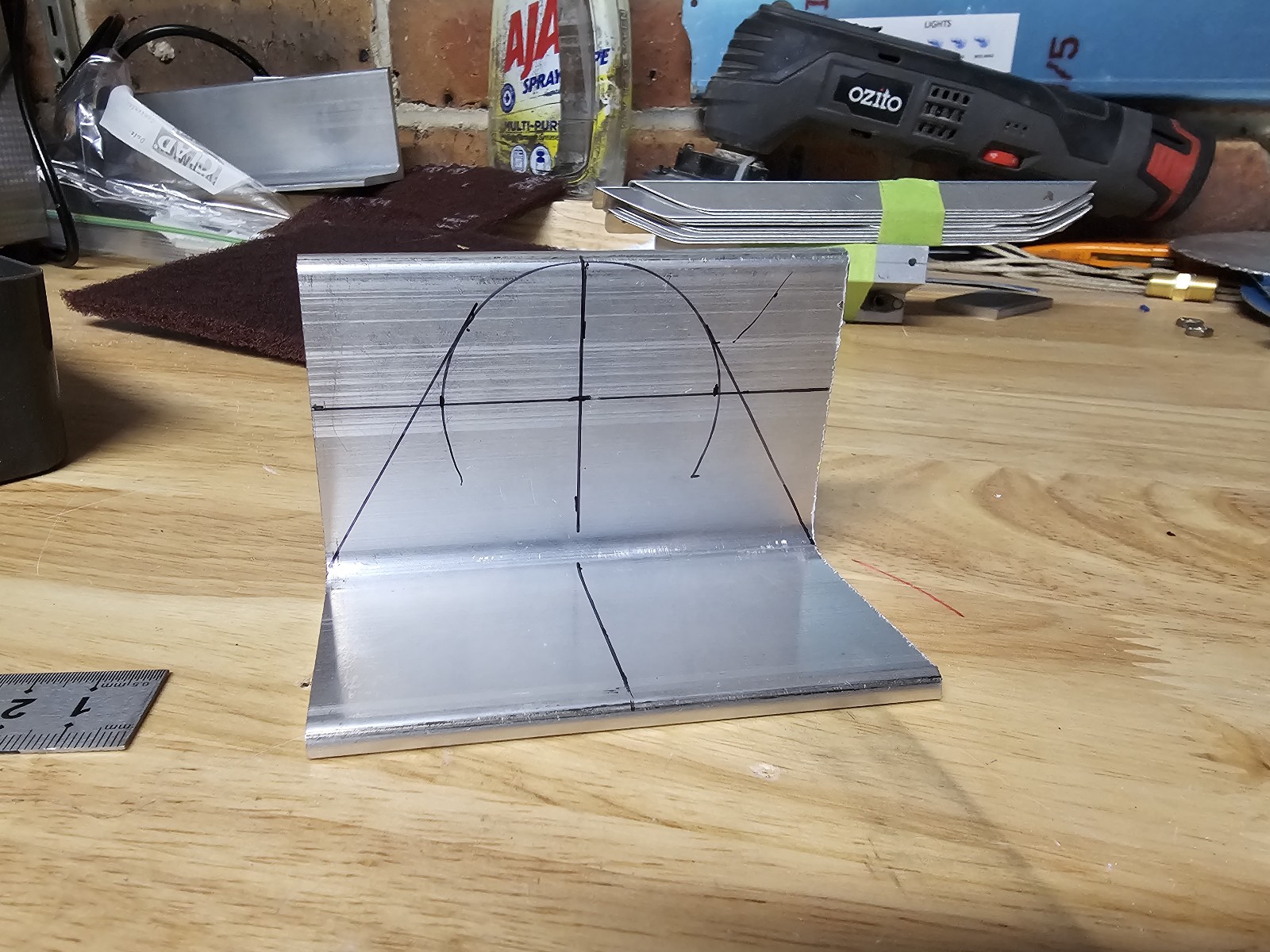

-Marked recently received angle for T405 & started rough cutting

Manual Reference: 7-6

InstalledRemoved
Rivets Today00
Wing Rivets345374
Fuse Rivets1652
Empennage Rivets221549
Total Project Rivets5839124
Hours1
Total Hours546
