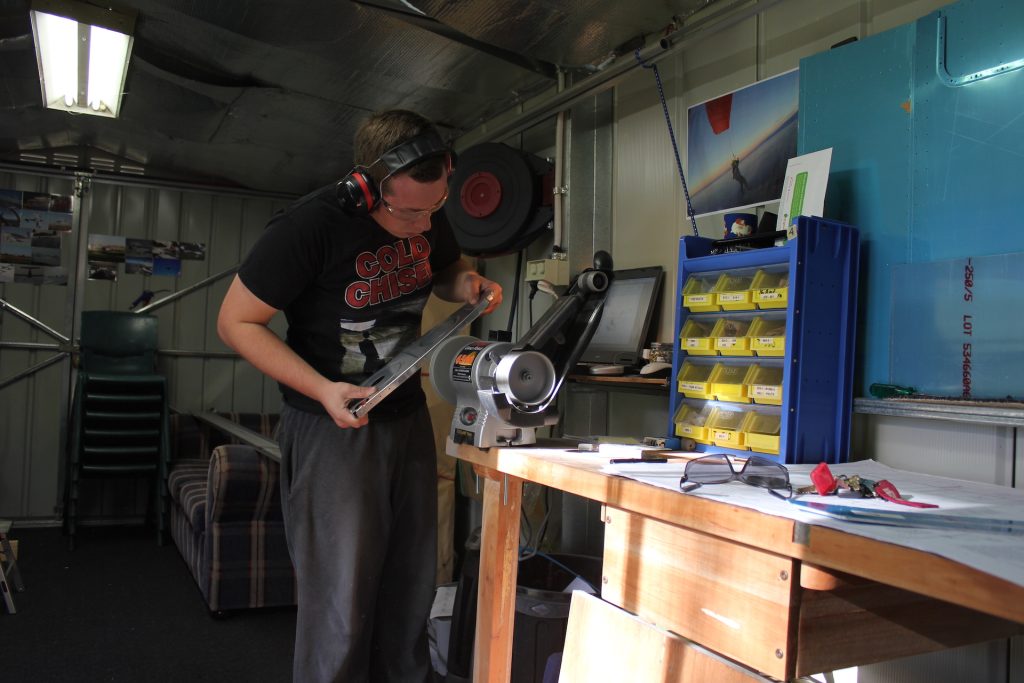

-CONTINUED EDGE DEBURRING OF WING RIBS

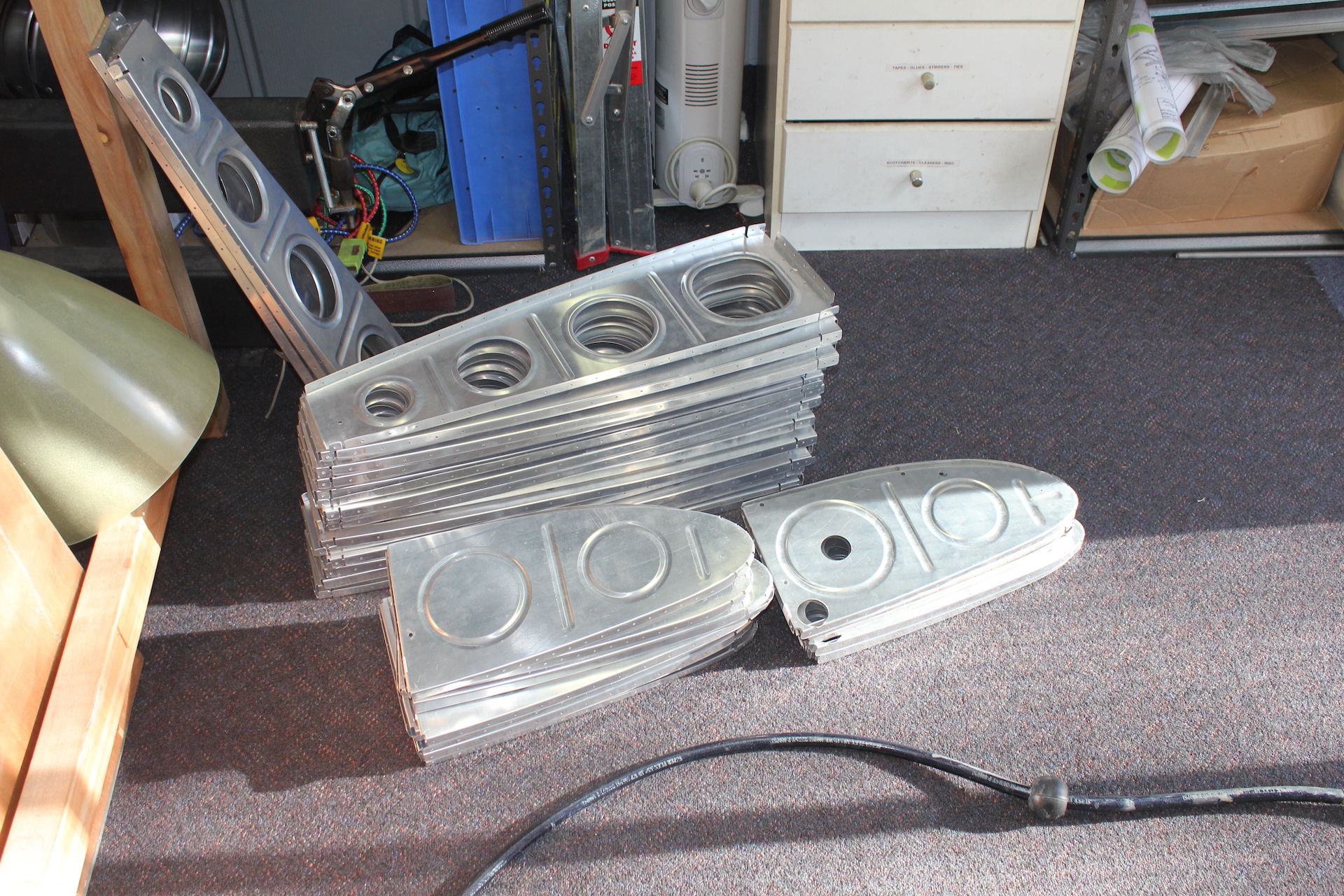

-FINISHED EDGE DEBURRING ALL RIB FLANGES, NOT INCLUDING CORNERS AND TIGHT SPOTS
-COULDN’T HANDLE DEBURRING RIBS ANY MORE SO WENT LOOKING AND FOUND MISSING W-707G REAR SPAR REINFORCEMENT FORKS

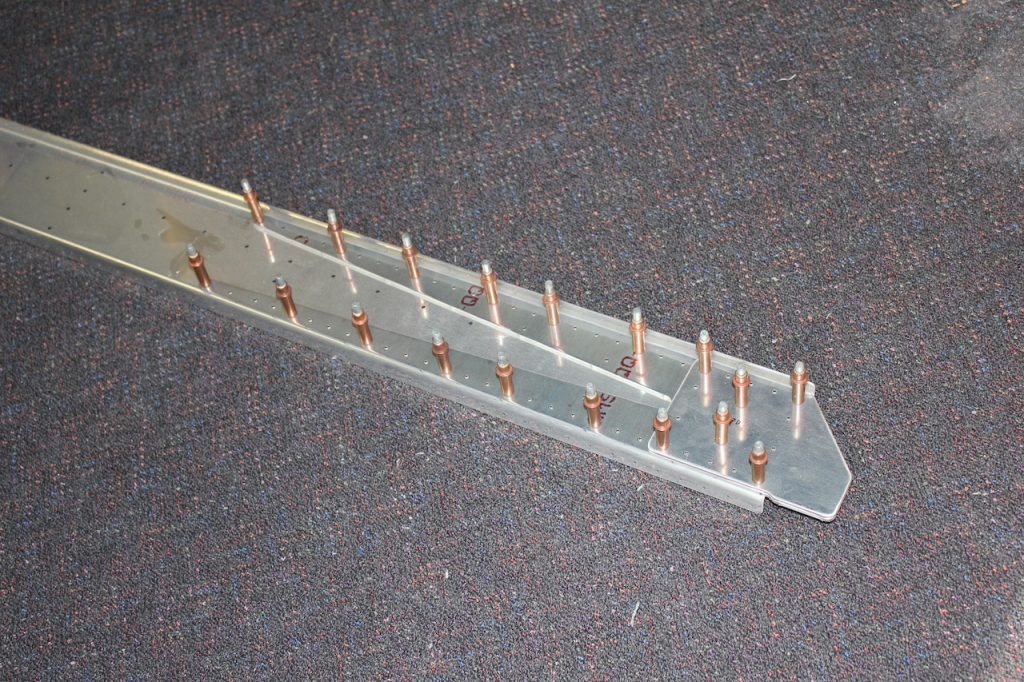

-CLECOED/DRILLED W-707G & D FORK AND REINFORCEMENT PLATE TO REAR SPAR & EDGE /HOLE DEBURRED
Manual Reference: 7-2, 7-3
RIVETS – INST 0 – REM 0
WING RIVETS – INST 148 – REM 0
TOTAL PROJECT RIVETS – INST 2363 – REM 49
Hours: 1.5
Total Hours: 222.75
