Wing skin paint stands, Rib-Spar Fix, Pushrod trimming

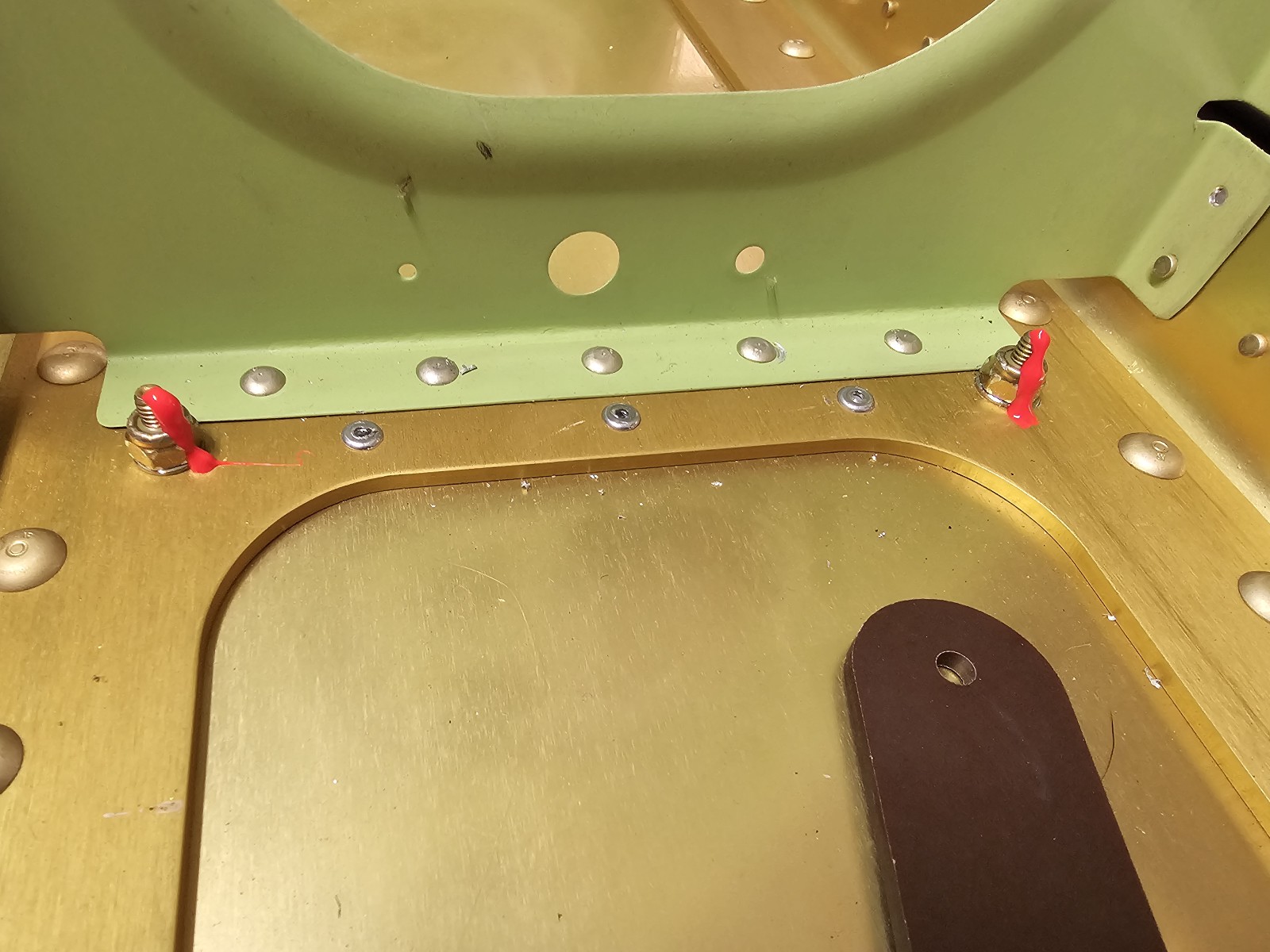

-Performed the planned fix on my misdrilled LE rib-spar holes – Fitted 2x MS27839 screws & AN365 Nuts

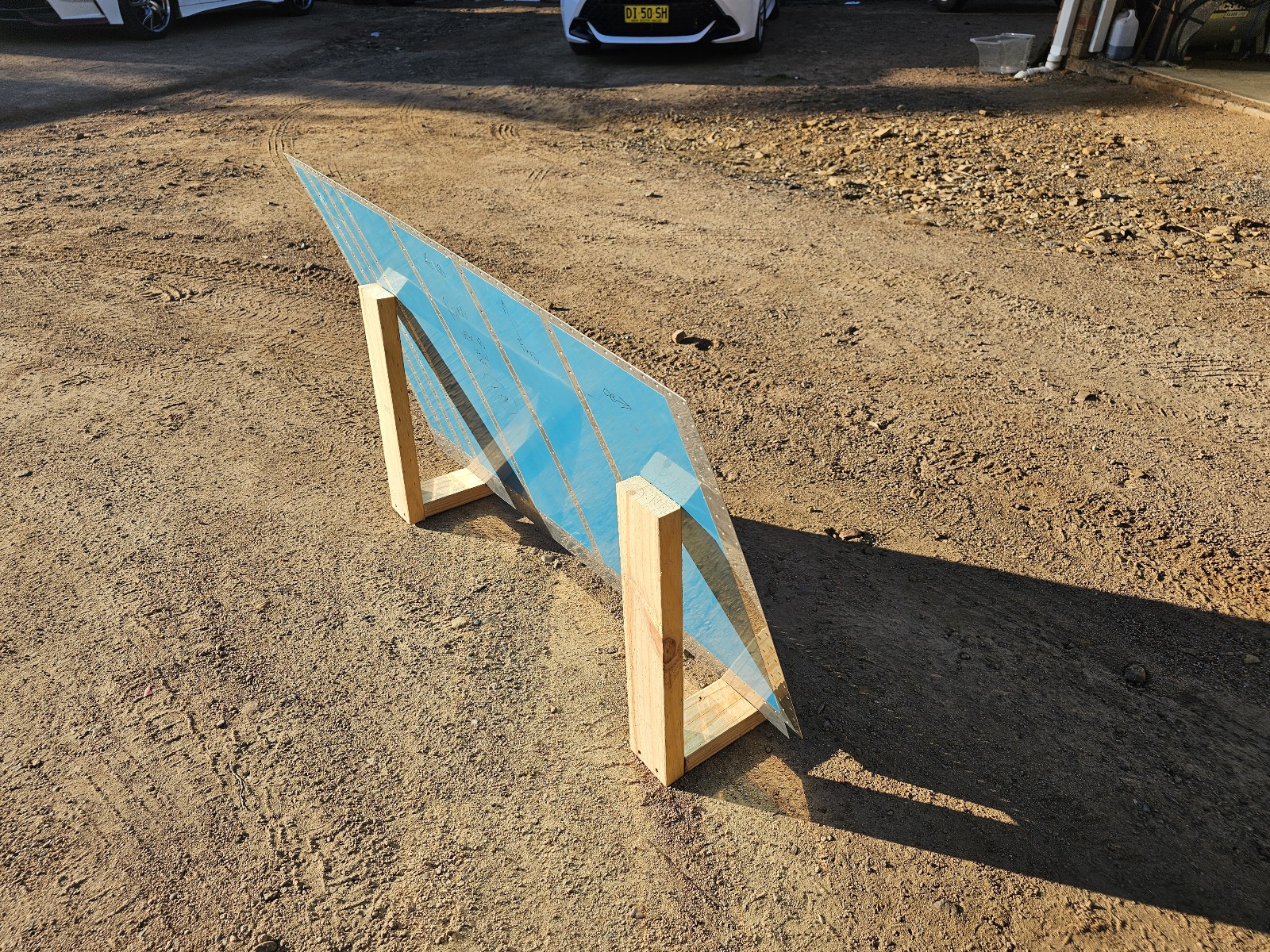

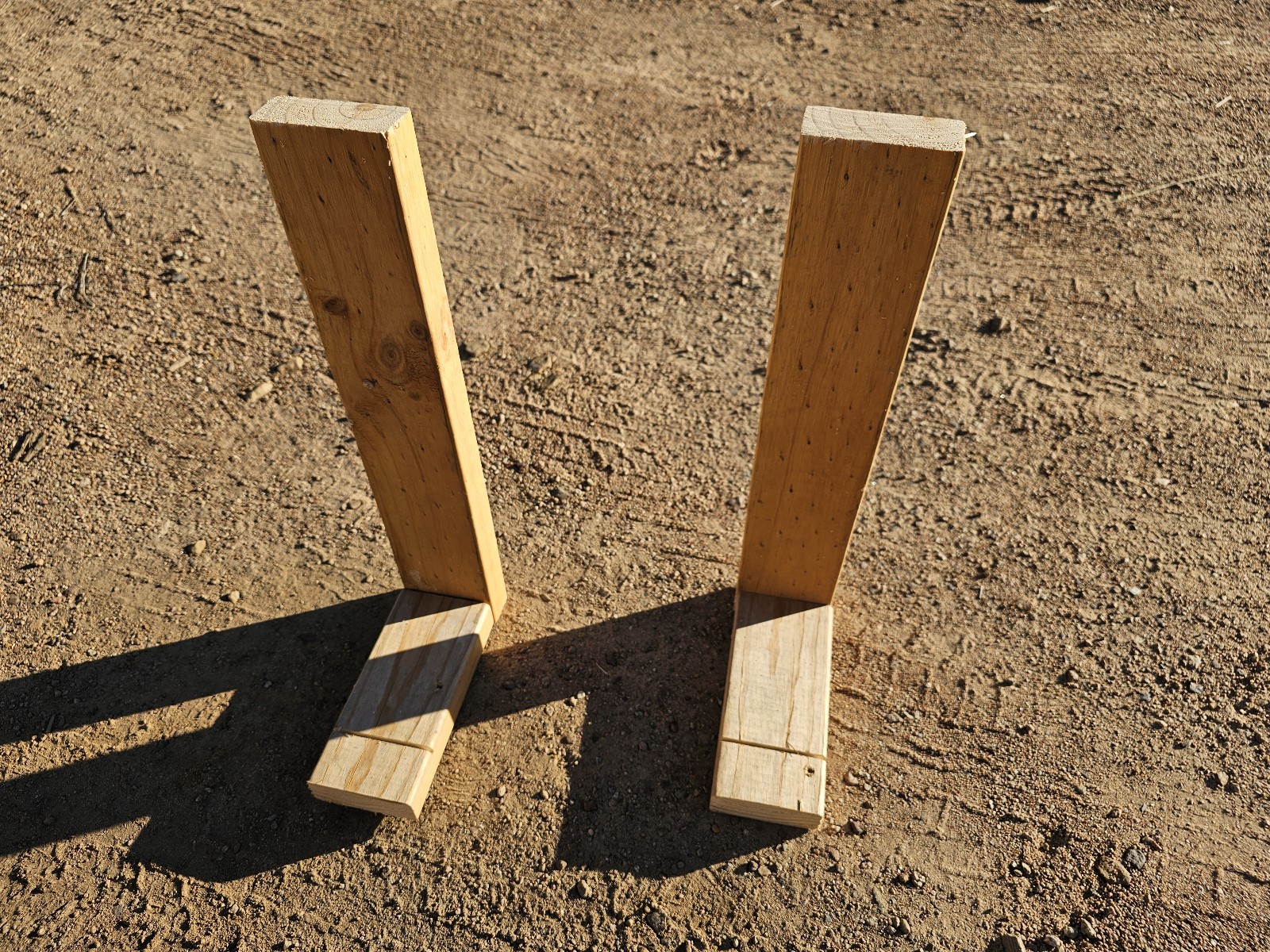

-In preparation of prepping & priming wing skins made a few simple skin drain/paint stands from scrap timber

-Lightly filed, sanded & scotchbrited skin overlaps to make a scarf joint, only did the top as I couldn’t get a great finish with the dimpling already being done, will just wear any raised edges

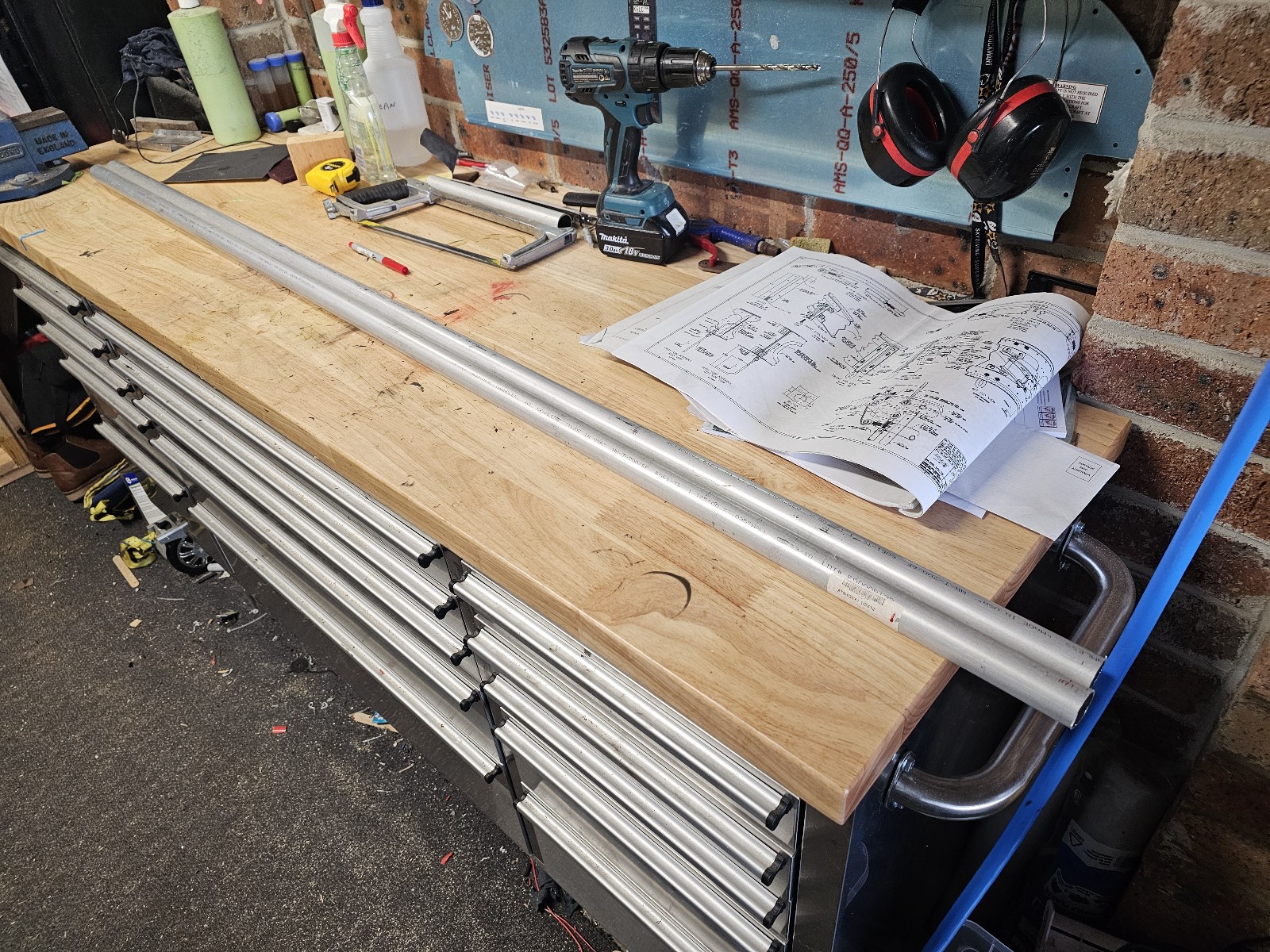

-As i’m gonna be priming I decided to roughly cut my aluminium aileron pushrods, wanted to get them completely done but run out of time, will finish later

Manual Reference: 7-9, DfD-31

InstalledRemoved
Rivets Today00
Wing Rivets443578
Fuse Rivets1652
Empennage Rivets221549
Total Project Rivets6821128
Hours3
Total Hours598
