RH Fuel Tank – Sealing Ribs 2-6 in position

-After ultrasonically cleaning clecoes – soaked in MEK to remove any residue

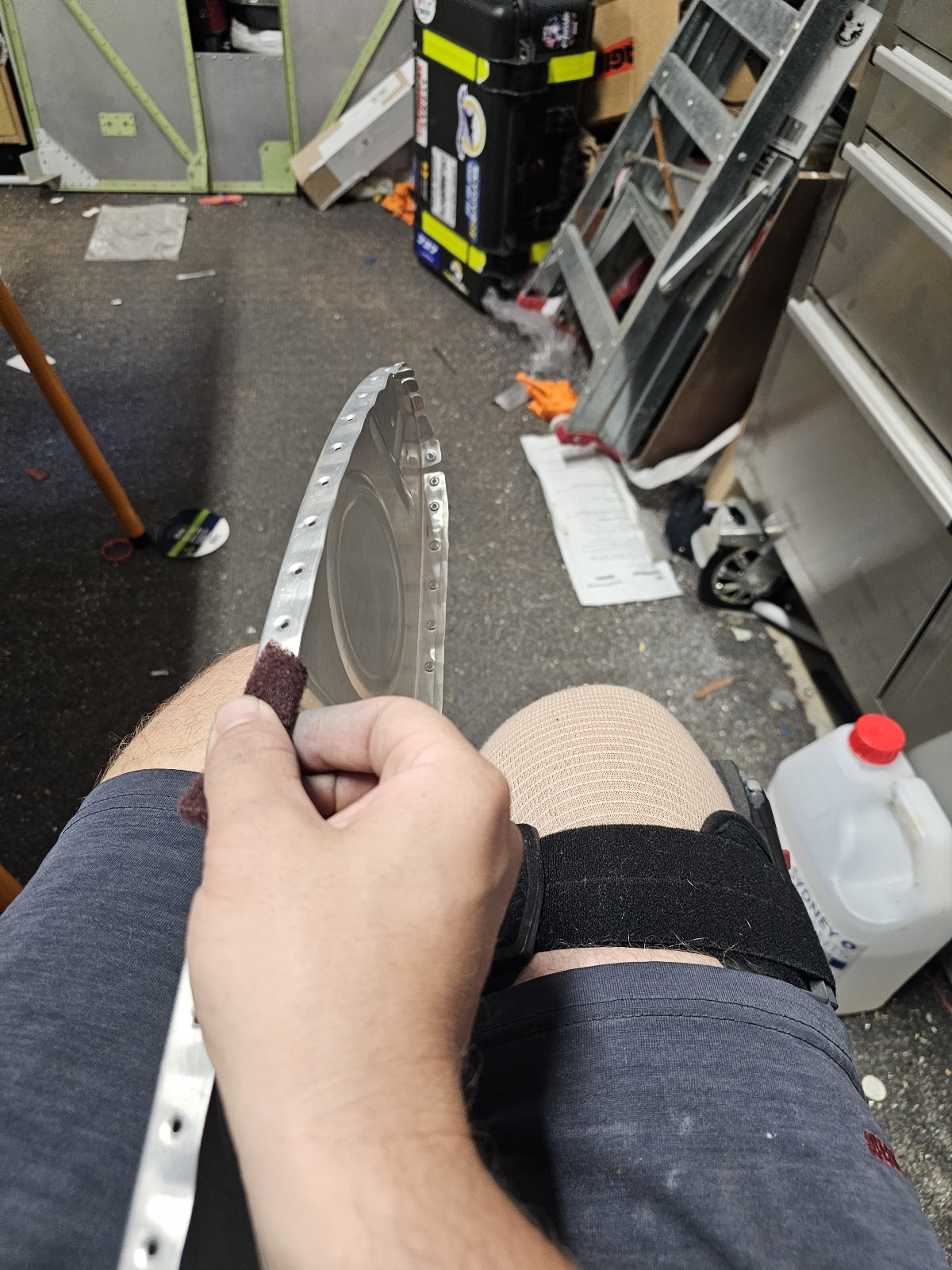

-Scuffed up all rib mating surfaces & cleaned with MEK

-Cleaning skin mating surfaces with MEK

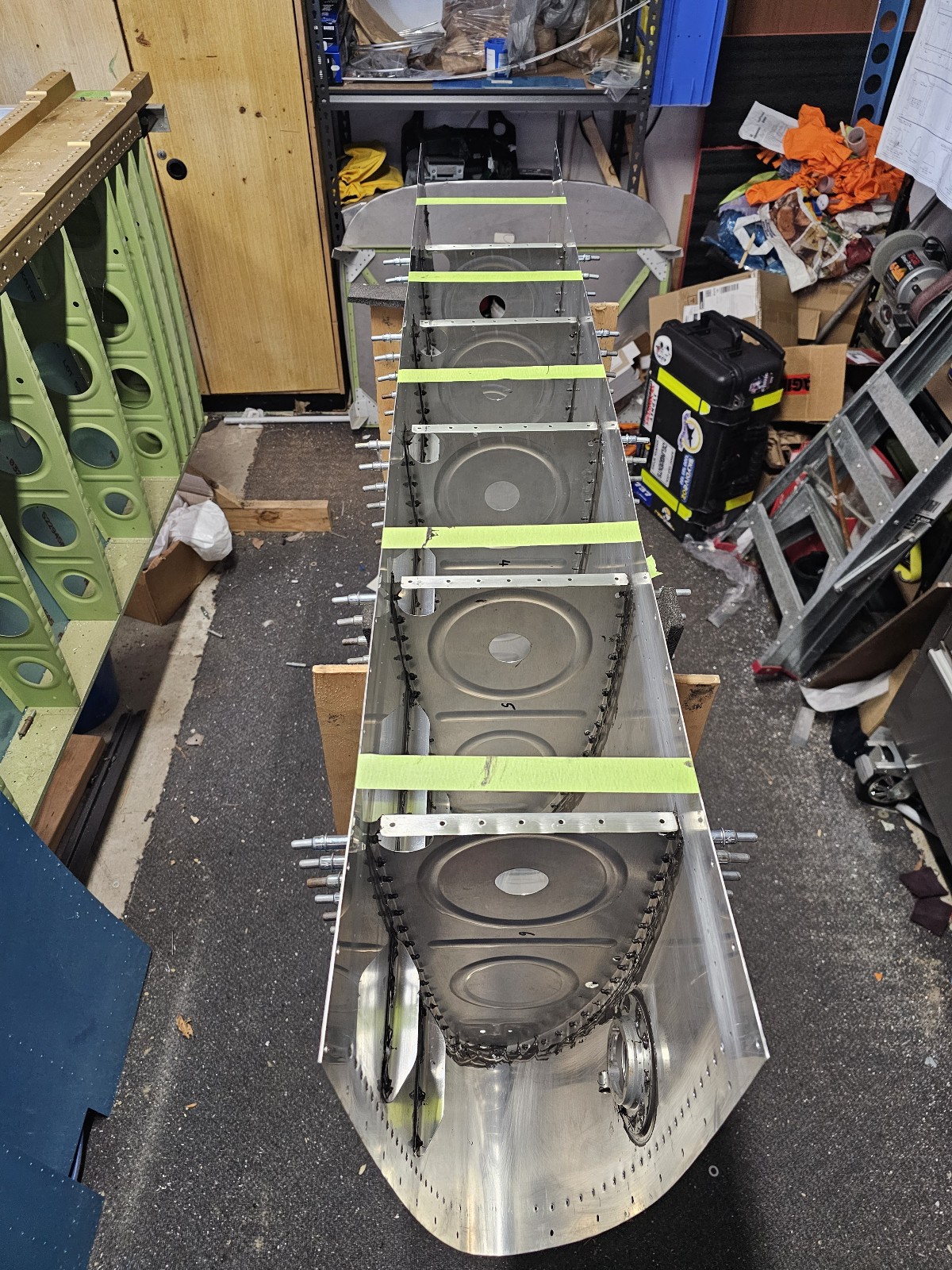

-As with the left side I sealed the ribs (2-6) into position, clecoed every hole, filleted sealant & will rivet tomorrow

Manual Reference: 7-6, 7-7

InstalledRemoved
Rivets Today00
Wing Rivets354875
Fuse Rivets1652
Empennage Rivets221549
Total Project Rivets5934125
Hours2
Total Hours553
