-CLEANED UP LIGHTENING HOLE/EDGES ON FLAP SPARS

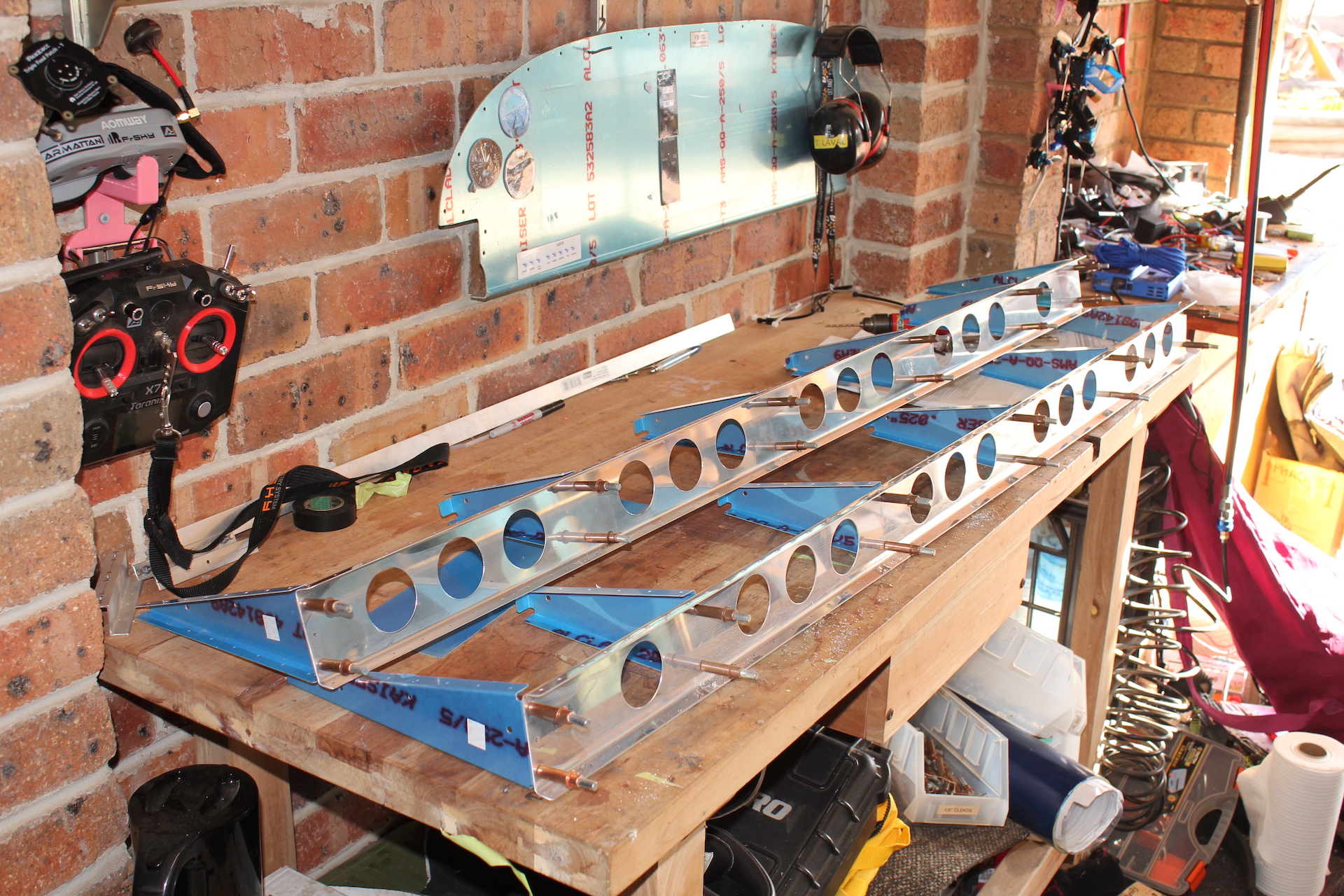

-DRILLED & CLECOED RIBS TO SPARS
-FABRICATED FL708 SHIMS
-THE RIBS WERE ALL CONTACTING THE REAR SPAR SO NO SHIMS WERE REQUIRED
-DRILLED RIBS TO REAR SPAR
-DRILLED RIBS TO BOTTOM SKIN

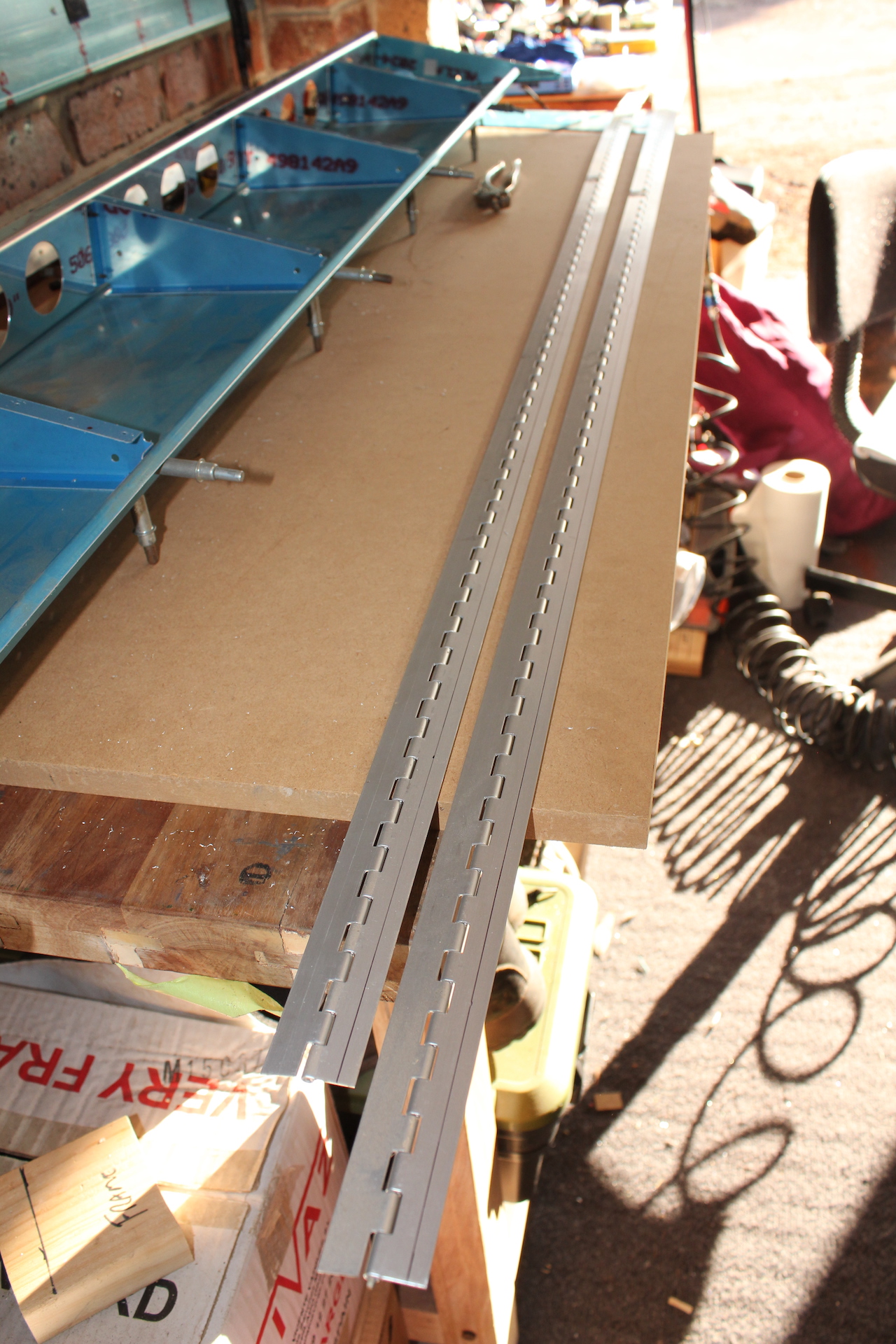

-MARKED 1/4″ LINE ON HINGES TO GET ALIGNMENT AND EDGE DISTANCE GOOD FOR DRILLING.

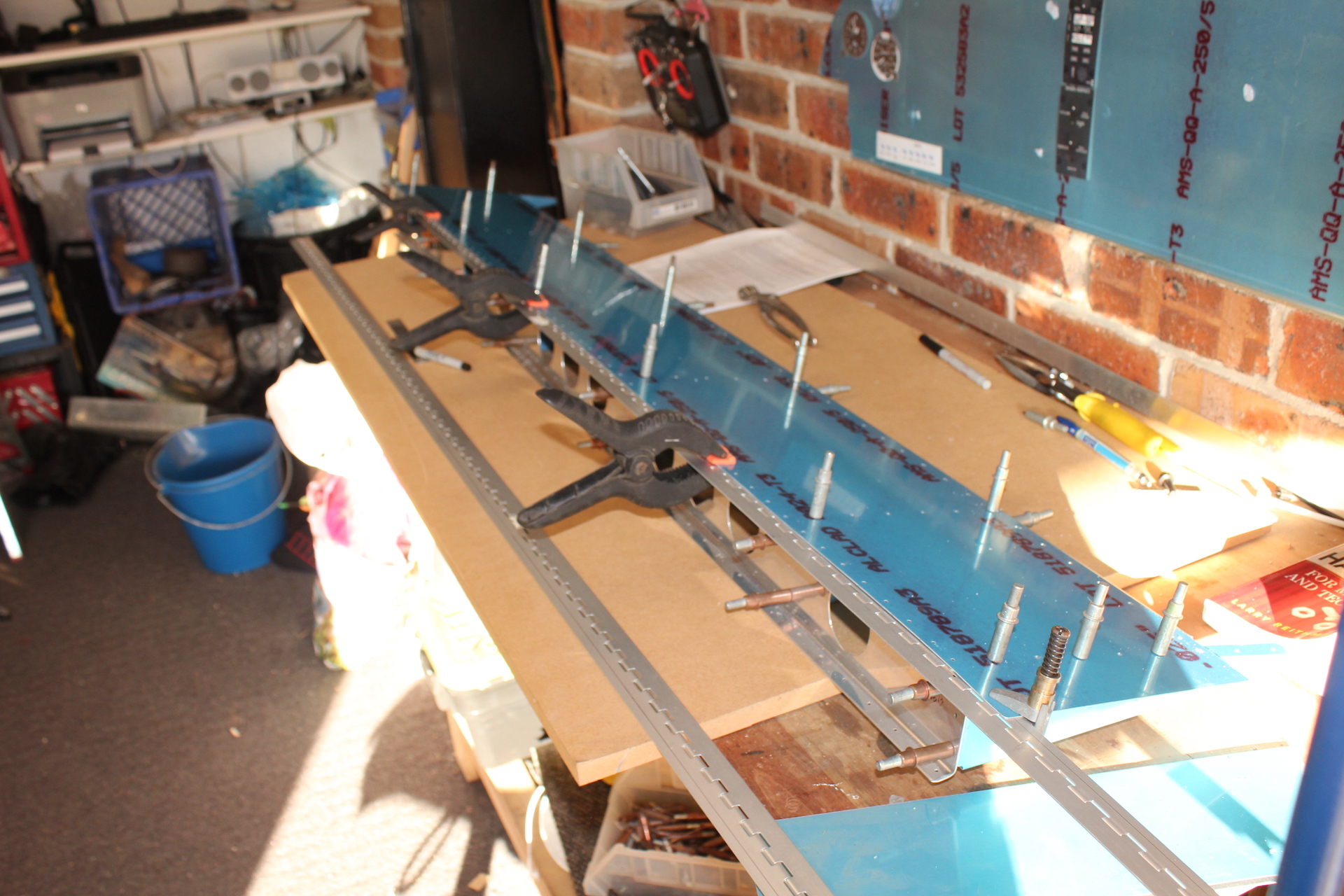

-CLAMPED AND DRILLED HINGES TO FLAP ASSY

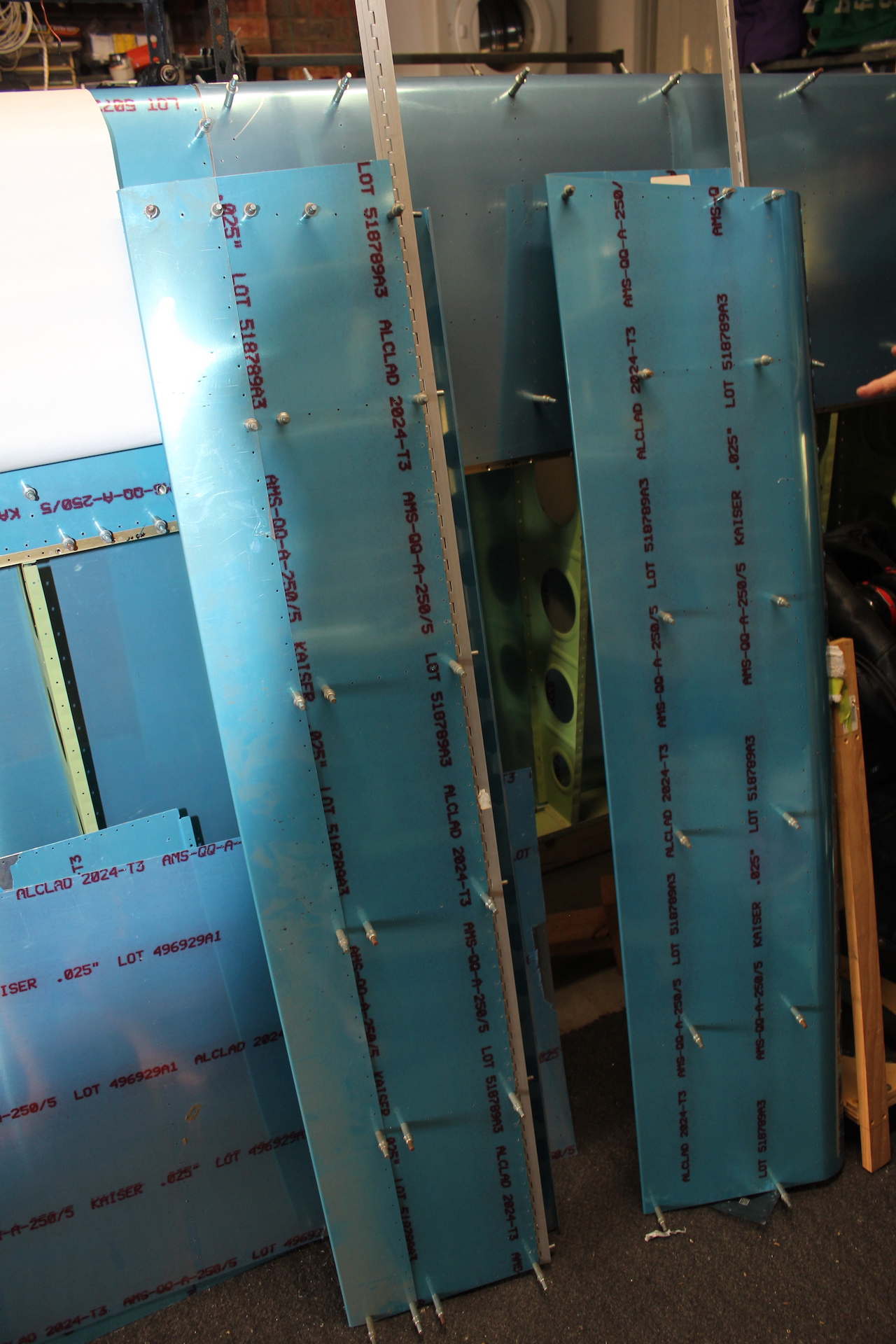

-FITTED UPPER SKINS AND DRILLED FL-709 SHIMS TO ASSY
Manual Reference: 7-11
| Installed | Removed | |
| Rivets Today | 0 | 0 |
| Wing Rivets | 2862 | 60 |
| Total Project Rivets | 5083 | 112 |
| Hours | 4 | |
| Total Hours | 470.5 |
