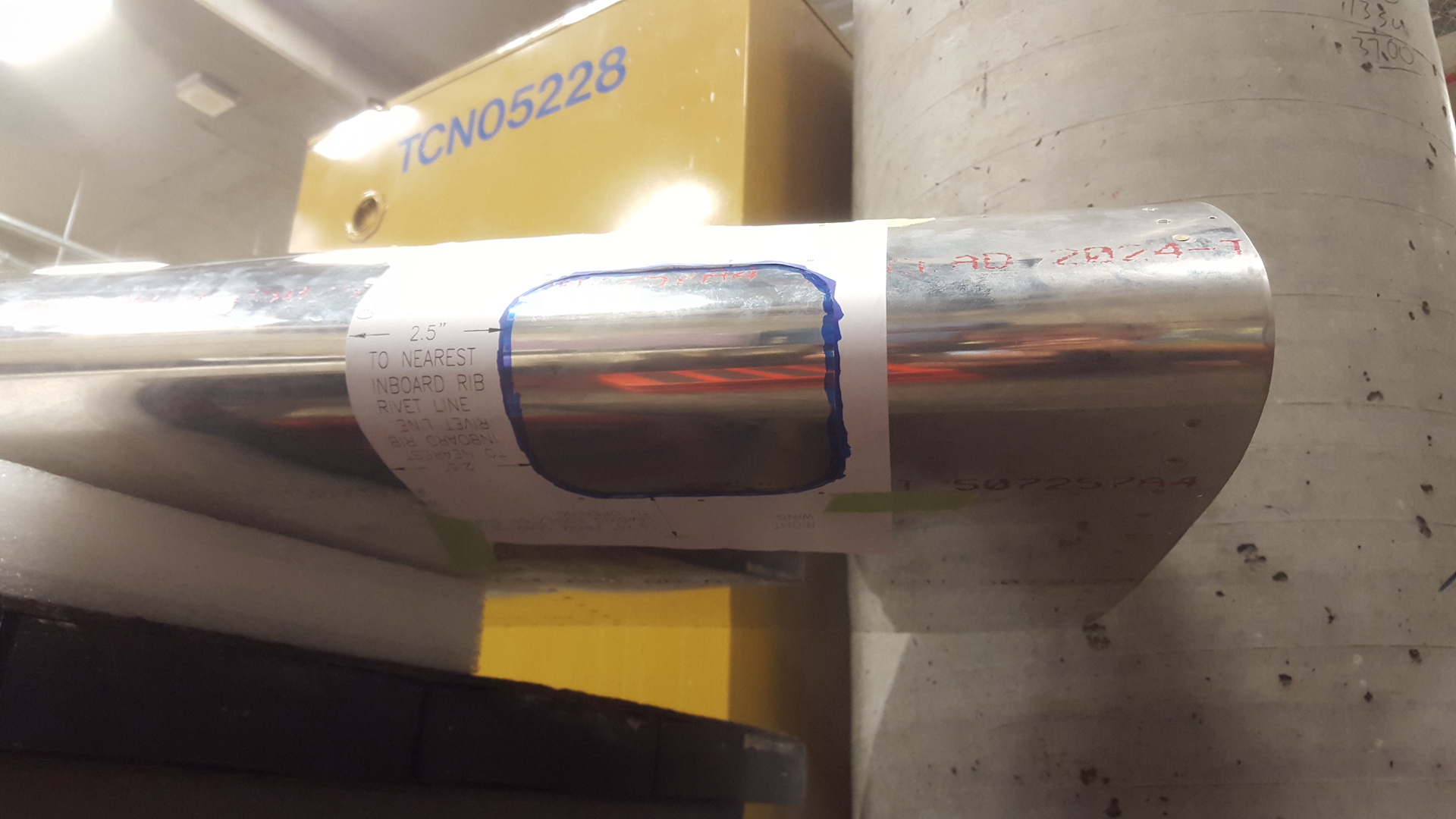

-CUT OUT AND LAID TEMPLATE OVER LEADING EDGE

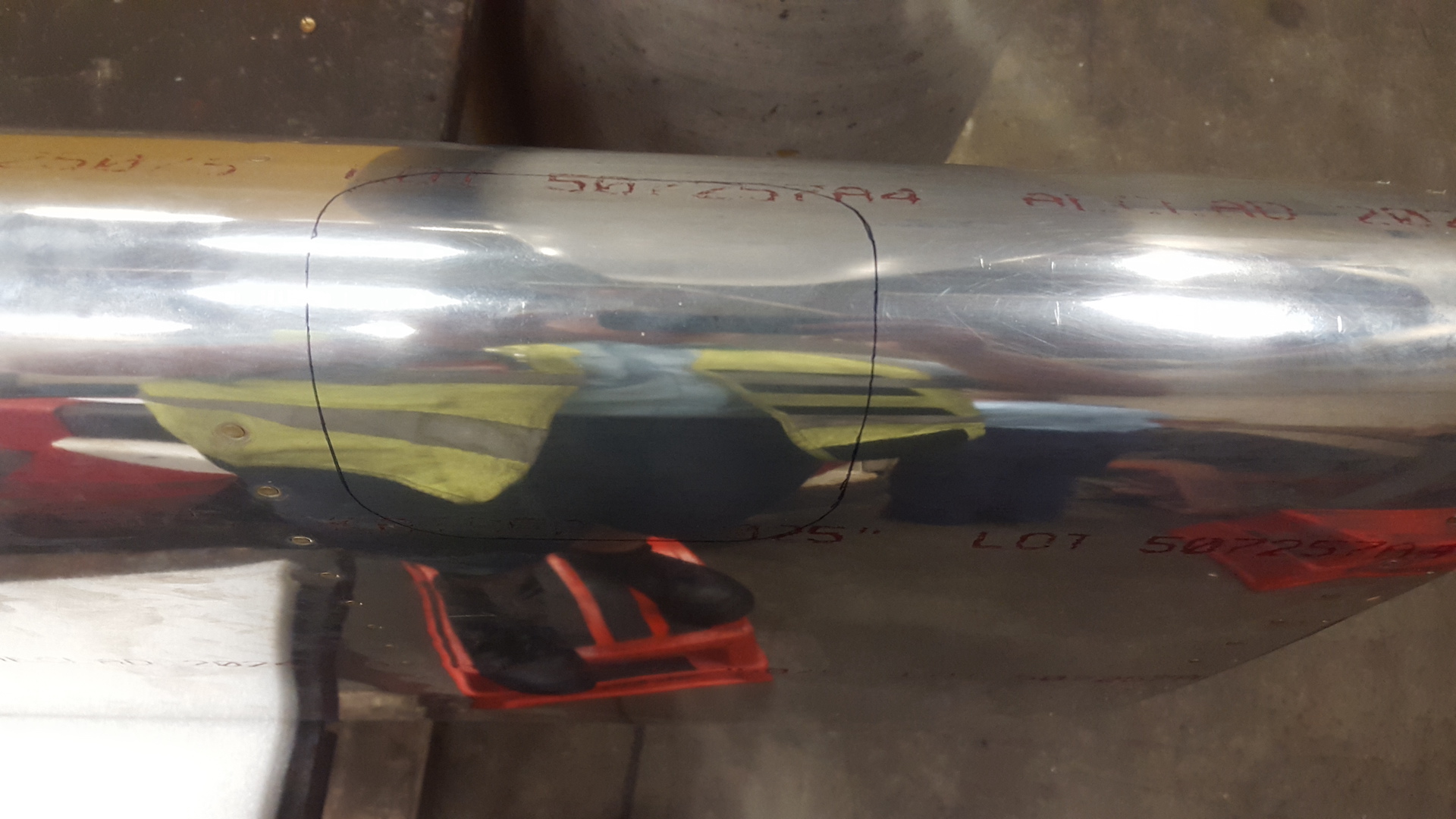

-MARKED CUT OUT LINES

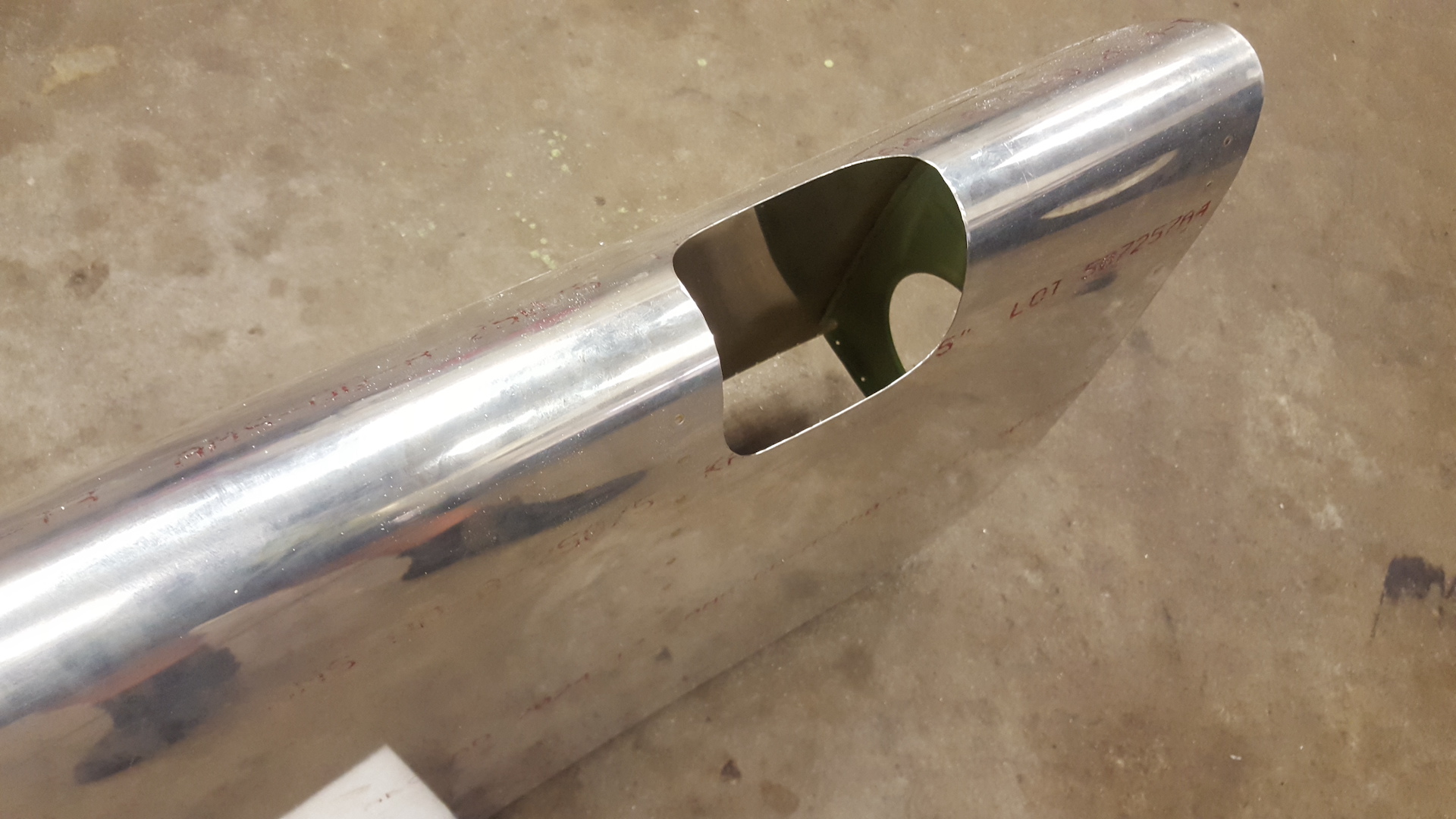

-CUT OUT ROUGH LANDING LIGHT HOLE IN THE LEADING EDGE
-FOUND IT REALLY EASY TO CUT WITH THE DREMEL CUT-OFF WHEEL & ROTARY BURR
***FOUND THAT I’D FITTED THE TEMPLATE UPSIDE DOWN WHEN I MARKED SO THE CUTOUT WAS 1.5″ INBOARD OF WHERE IT WAS SUPPOSED TO BE
Manual Reference: MOD005
| Installed | Removed | |
| Rivets Today | 0 | 0 |
| Wing Rivets | 1118 | 32 |
| Total Project Rivets | 3339 | 84 |
| Hours | 1 | |
| Total Hours | 362.5 |
