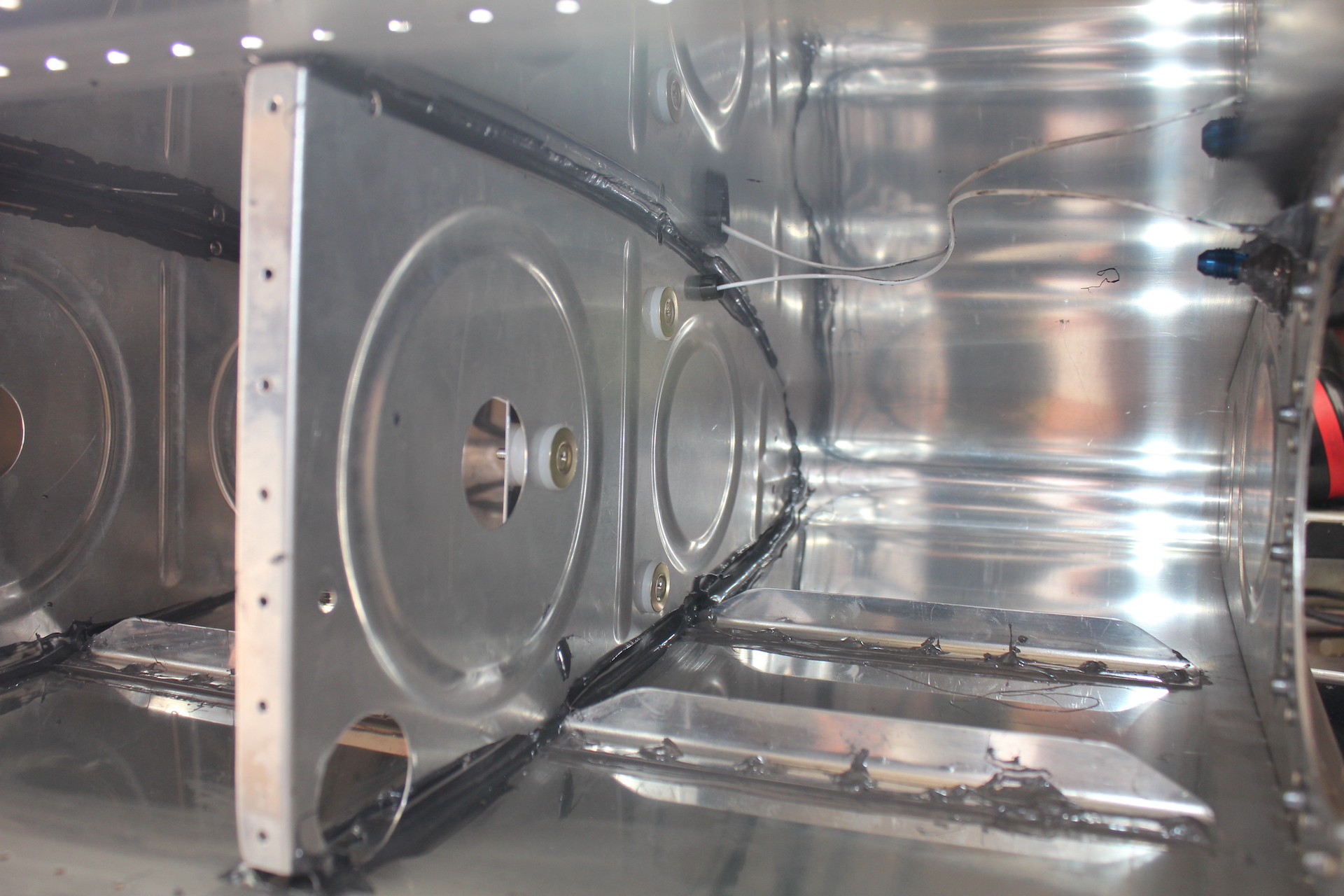

SEALING AND RIVETING OB END RIB INTO TANK

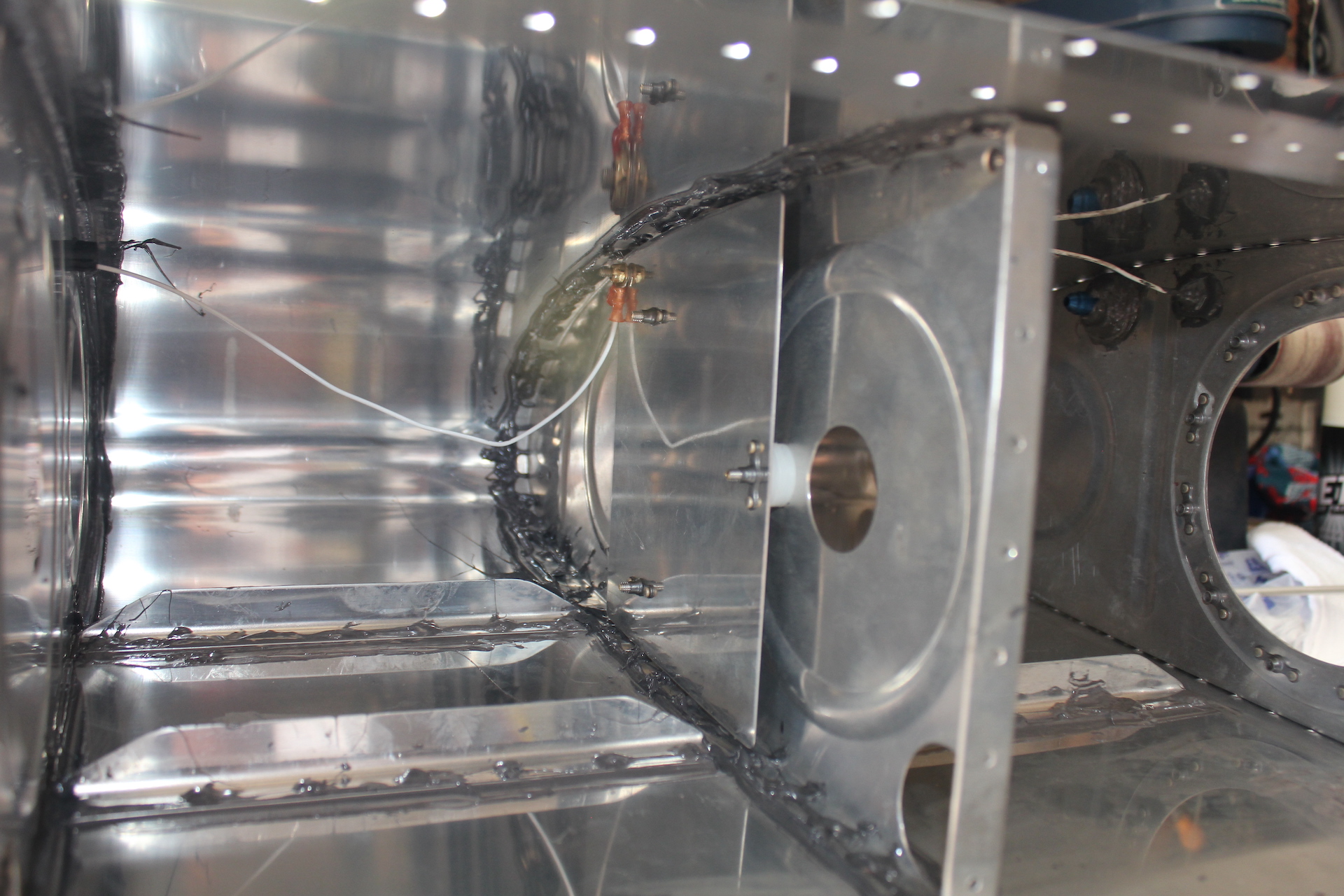

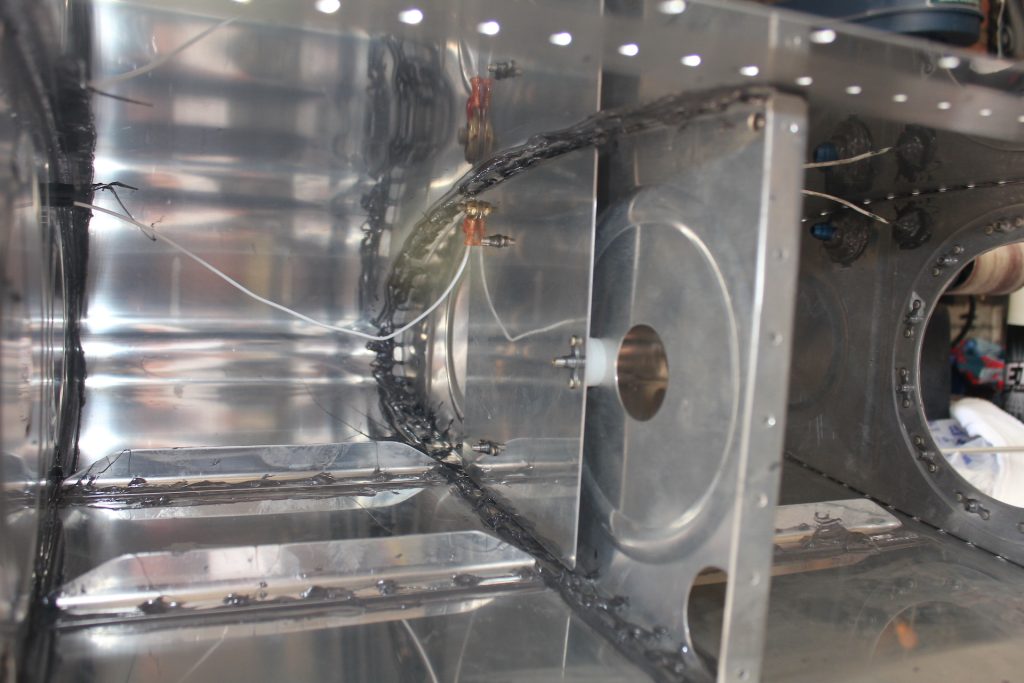

-INSTALLED IB CAPACITIVE FUEL PLATE

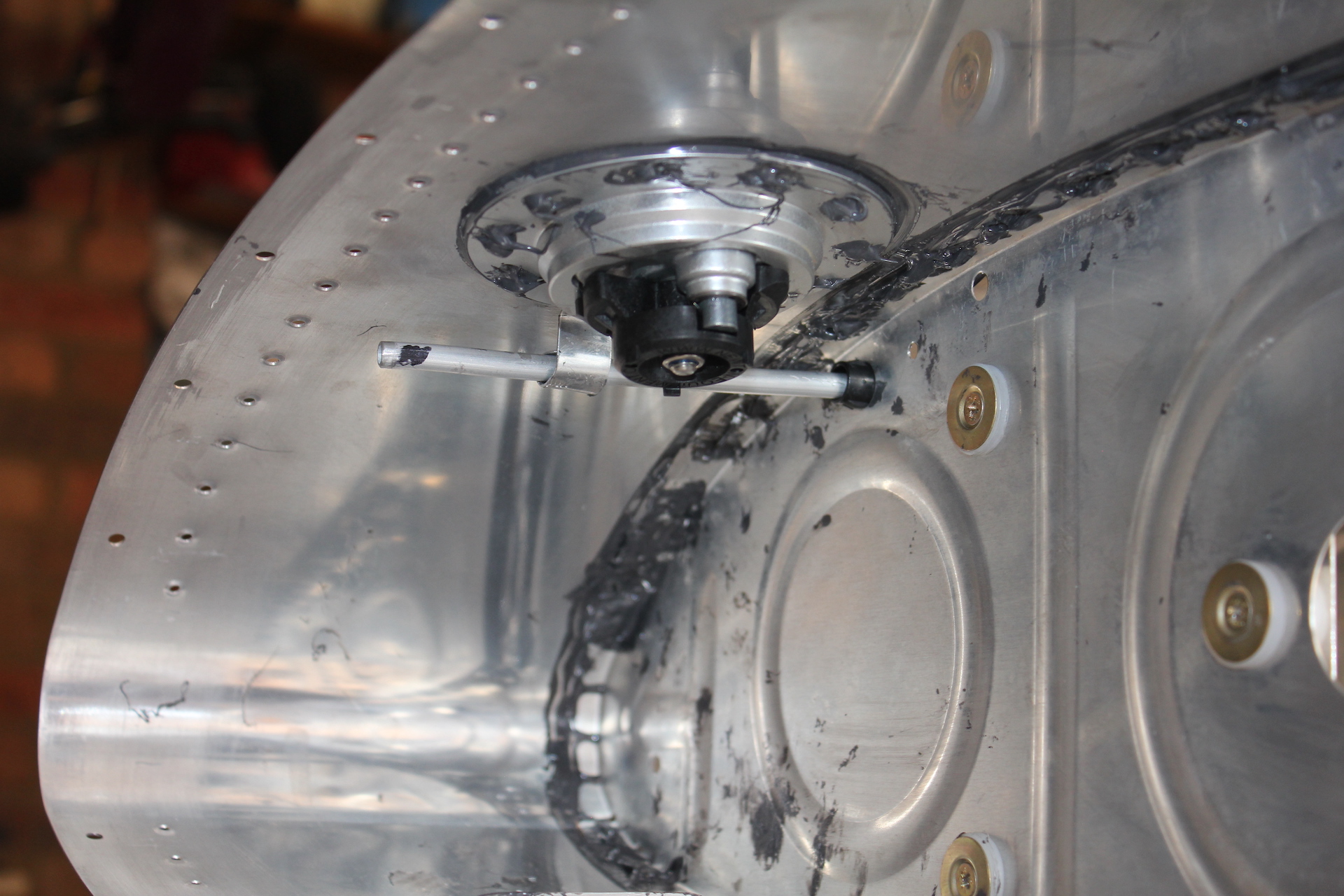

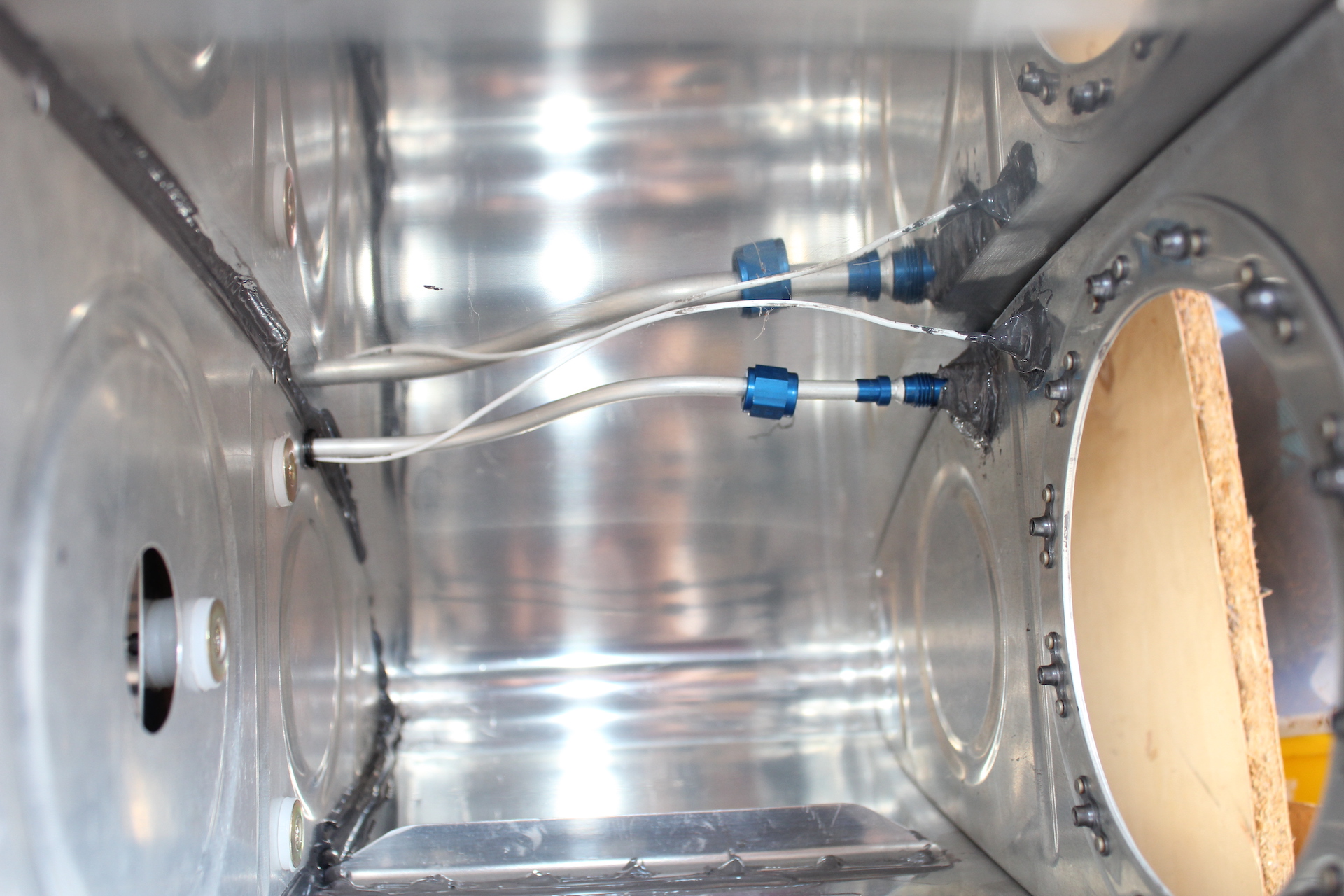

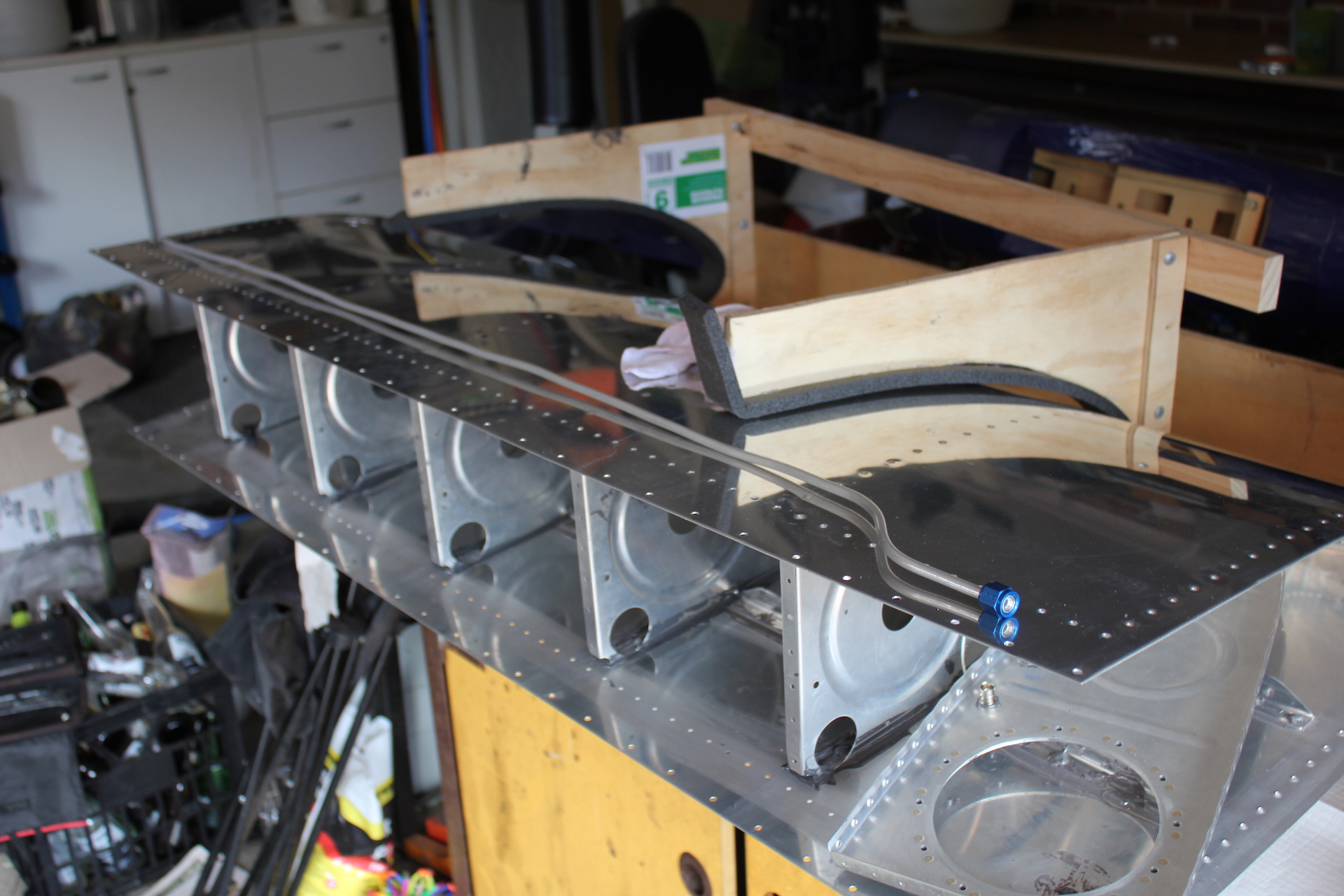

-TRIAL FITTED VENT LINE, BENT IB END AS REQUIRED & CHOPPED OB END TO FIT CORRECTLY

-FABRICATED PLATE TO COVER TOOLING HOLE ON END OF OB RIB

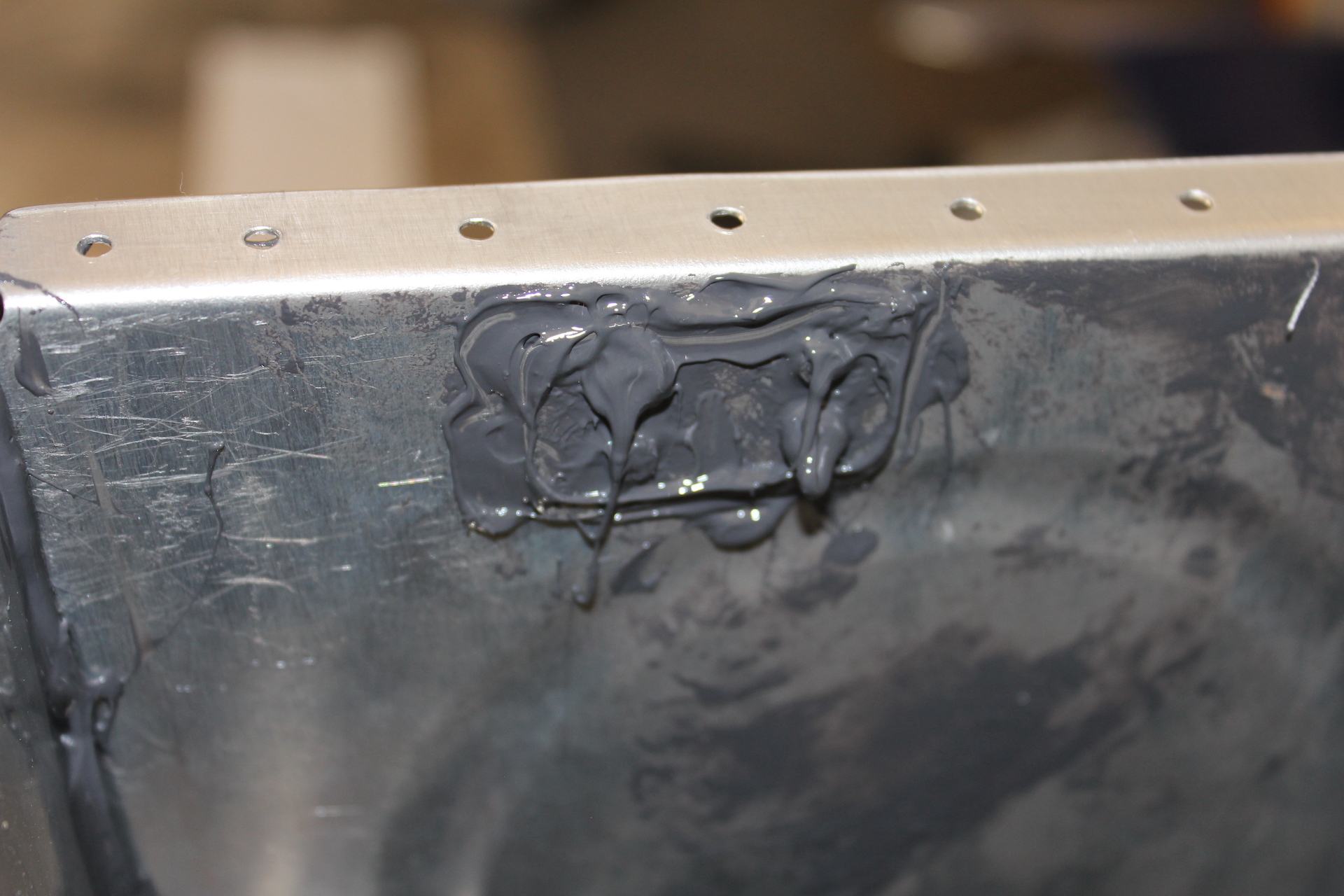

-SEALED & RIVETED TOOLING HOLE COVER ONTO RIB & T410

*FOUND THAT RIVETING THE 410 ONTO THE RIB BOWED THE RIB MAKING IT VERY DIFFICULT TO RIVET INTO PLACE
-SEALED VENT LINE INTO CLIP WITH FUEL TANK SEALANT

-CLECOED OB END RIB INTO PLACE WITH EXTREME DIFFICULTY

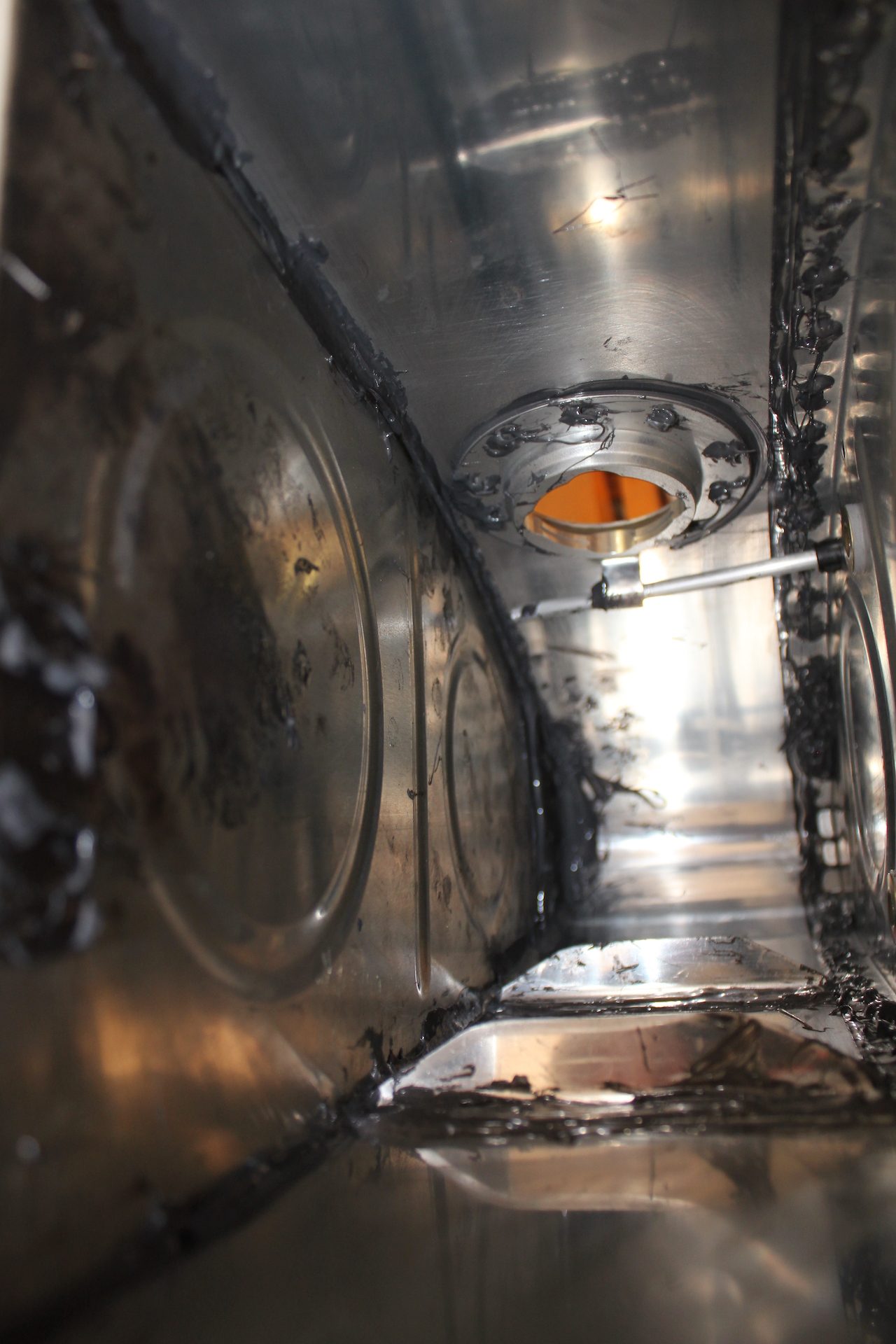

-RIVETED OB END RIB INTO PLACE AND CLEANED UP
MADE A HUGE MESS BUT HOPEFULLY IT’LL SEAL OK

Manual Reference: 7-7, OP-7
